Orange Pi R1 Plus LTS con 1 GB de RAM

Código ErreBi: 60607
Productor: Orange
Memoria (SDRAM): 1GB LPDDR3 (compartida con GPU)

Orange Pi R1 Plus LTS es una computadora de placa única de código abierto con puertos Dual Gigabit Ethernet. Es muy compacto con una dimensión de 56X57mm. Puede ejecutar OpenWRT, Ubuntu y Debian.

Lee masShow less

71,71 € (tax excl.)

87,49 € (impuestos inc.)

Descuentos por cantidades

Cantidad	Precio unitario	Usted ahorra
6	83,00 €	26,93 €
11	78,51 €	98,74 €

'Disponible en 30 días laborables a partir de orden.'

Estado

Nuevo

Referencia:

RBOPR1PLTS1GB

Marca:

Orange

A lista de deseos

Descripción
Detalles del producto

Descripción

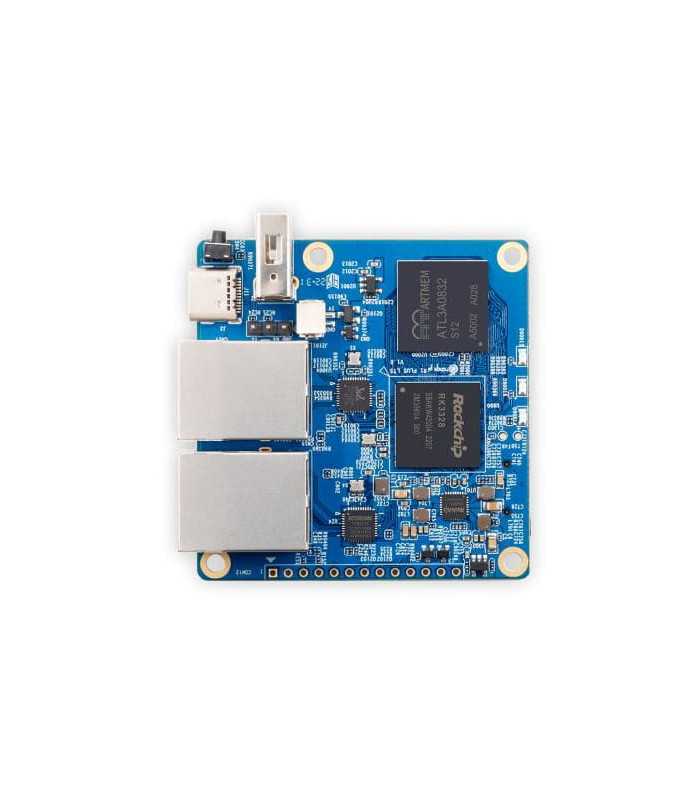

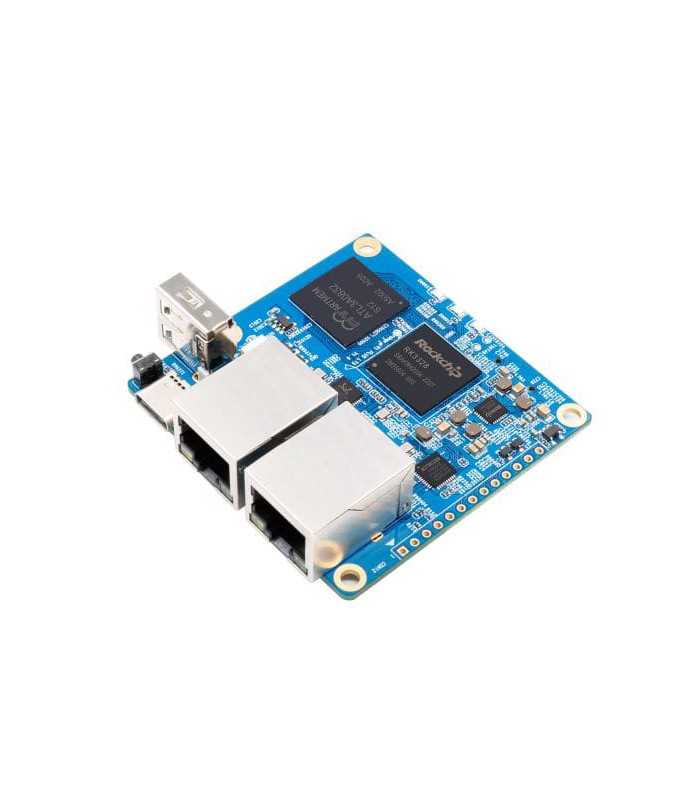

Orange Pi R1 Plus LTS is an open-source single-board computer with Dual Gigabit Ethernet ports. It is highly compact with a dimension of 56X57mm. It can run OpenWRT, Ubuntu, and Debian.

Orange Pi R1 Plus LTS uses the Rockchip RK3328 SoC, Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz and 1GB LPDDR3 SDRAM. It integrates cooling fan connector, USB 2.0 port, TF card slot, 13pin headers etc. It is powered through Type-C. It is suitable for industrial control needs.G.

Orange Pi R1 Plus LTS is for anyone who wants to start creating with technology - not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

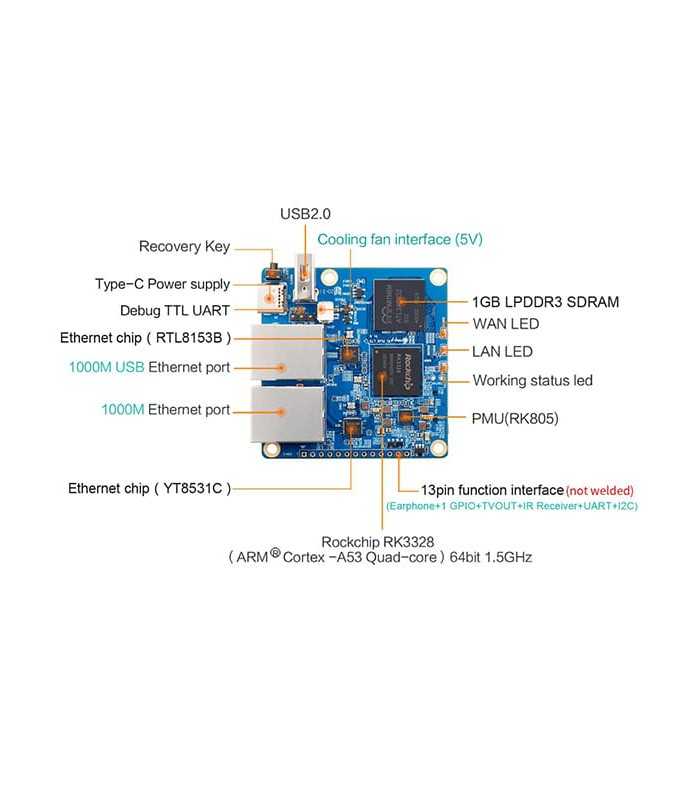

Hardware specification

CPU:
- Rockchip RK3328
- Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz
GPU
- Mali-450MP2
- Supports OpenGL ES 1.0/2.0
Power management chip: RK805
Memory (SDRAM): 1GB LPDDR3(Not Shared With GPU)
Onboard Storage
- Micro-SD Card slot
- 16MB SPI Flash
Onboard Network:
- 10M/100M/1000M Ethernet (YT8531C)
- 10M/100M/1000M USB Ethernet (RTL8153B)
Video Outputs
- TV CVBS output(Via 13pin interface board)
Audio output: 3.5mm audio port(Via 13pin interface board)
Power Source: USB Type-C Interface 5V/2A Input
USB: 1x USB 2.0 HOST
Low-level peripherals: 13pin header with IR pin, Tv-out, AUDIO(no MIC), 2xUSB2.0(not support)and 1 GPIO port Note: 13Pin Headers Will Not Be Welded
Debug serial port: UART-TX?UART-RX and GND
Button: 1x Reset Button
Fan interface: 1x cooling fan interface (5V)
LED: Power LED & Status LED
Supported OS: OpenWRT, Ubuntu, Debian
Appearance specification introduction:
Product size: 56 mm x 57mm
Weight: 29.5g

Lee masShow less

Detalles del producto

Referencia RBOPR1PLTS1GB

Ficha técnica

Minima pedido: 1

Tipo de unidad: pieza
