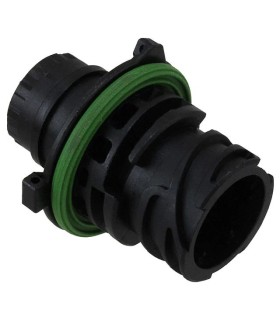

1,5MM BU-STE KPL 7-poliger mannlich Rundstecker

Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: wire to wire
Main lock function: on the terminal

Configuration features
Number of positions: 7

Electrical characteristics:

Operating voltage (VDC): 48
Nominal voltage architecture (V): 12, 24, 42, 48

Characteristics of the body
Body material: PBT GF
Cable exit angle: 180 °, 90 °
Main product color: black

Contact characteristics

Diameter of the coupling pin: 1.5 mm [.059 in]

Housing features

Centerline (pitch): 11.4 mm [.449 in]

Dimensions:

Product height: 32.8 mm [1,291 in]
Product length: 32.8 mm [1,291 in]
Product width: 31 mm [1.22 in]

Terms of use:

Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248
Operating temperature range: -40 - 120 ° C [-40 - 248 ° F]


UL flammability classification: UL 94HB
Degree of protection: IP67, IP69K
