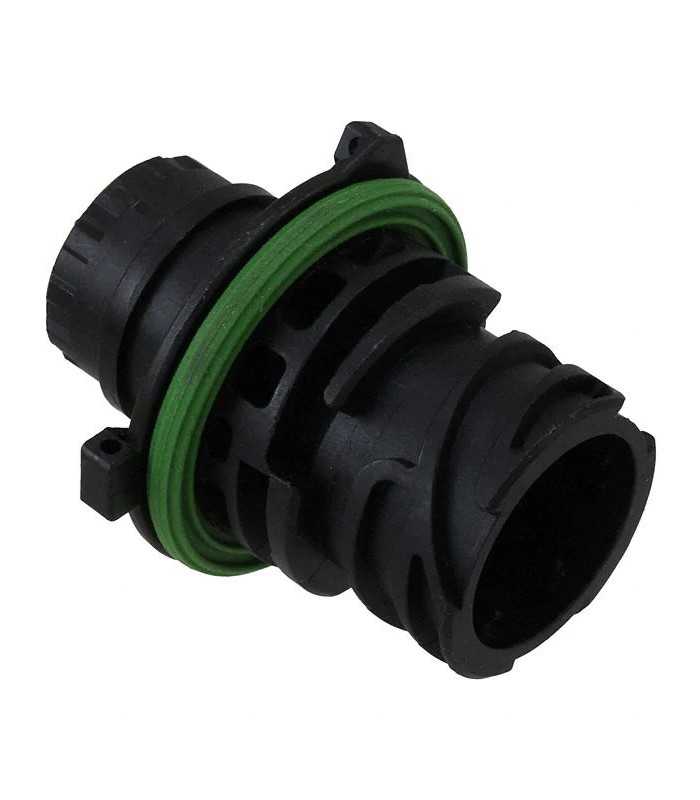

Steckverbinder 1,5MM HSG Series Weiblich 7 Wege

Characteristics of the product type
Connector and Housing Type: Male Terminal Housing
Connector system: wire to wire
Main lock function: on the terminal

Configuration features

Number of positions: 7

Electrical characteristics:

Operating voltage (VDC): 48
Nominal voltage architecture (V): 12, 24, 42, 48

Characteristics of the body

Body material: PBT GF
Main product color: black

Contact characteristics
Mating tongue width: 1.5 mm [.059 in]

Housing features
Centerline (pitch): 11.4 mm [.449 in]

Dimensions

Product height: 39.26 mm [1.546 in]
Product length: 39.2 mm [1.546 in]
Product width: 44 mm [1,732 in]

Terms of use

Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248
Operating temperature range: -40 - 120 ° C [-40 - 248 ° F]

UL flammability classification: UL 94HB
Degree of protection: IP67, IP6K9K
