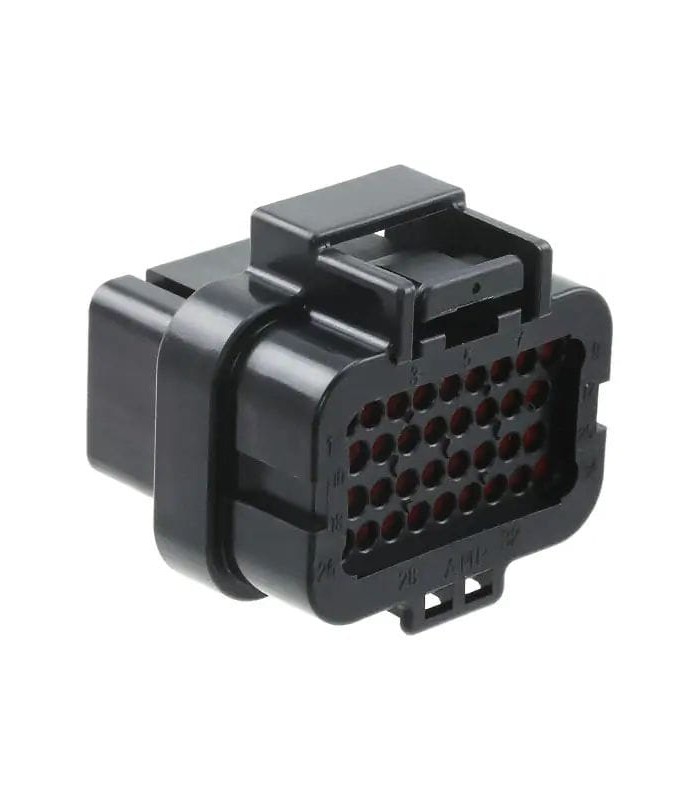

Superseal 1.0 Steckverbinder männlich 34 wege Cod 2

Characteristics of the product type

Connector and Housing Type: Female Terminal Housing
Connector system: wire-to-board, wire-to-device
Sealable: Yes
Hybrid connector: No
Main lock function: integrated into the housing

Configuration features

Number of positions: 34
Number of lines: 4

electrical characteristics

Operating voltage (VAC): 250
Operating voltage (VDC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240

Characteristics of the body

Body body material: PBT GF
Cable exit angle: 180 °
Main product color: black

Contact characteristics

Diameter of the coupling pin: 1 mm [.039 in]

Mechanical attack

Coupling Alignment Type: Polarized
Tearproof: No
Terminal position guarantee: Yes
Mounting function: without

Housing features

Center line (pitch): 3 mm [.118 in]

Dimensions

Row to row spacing (mm): 3.5, 4
Line-to-line spacing (in): .138, .157
Product height: 34.55 mm [1.36 in]
Product length: 32.15 mm [1,266 in]
Product width: 38.2 mm [1,504 in]

Terms of use

Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Operating temperature range (° C): -40 - 125, -40 - 125
Operating temperature range (° F): -40 - 257, -40 - 257

Industry standard

UL flammability classification: UL 94V-2
Degree of protection: JIS D0203
