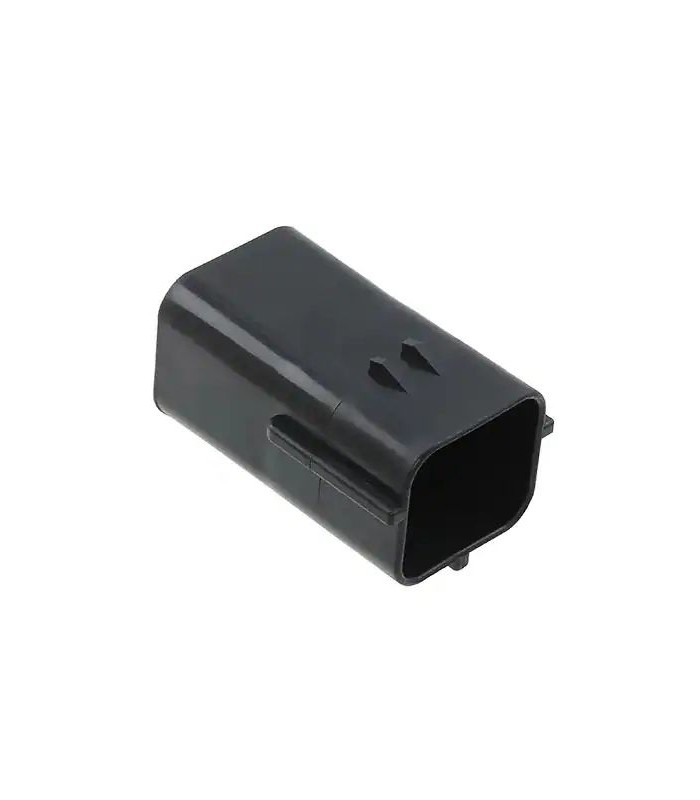

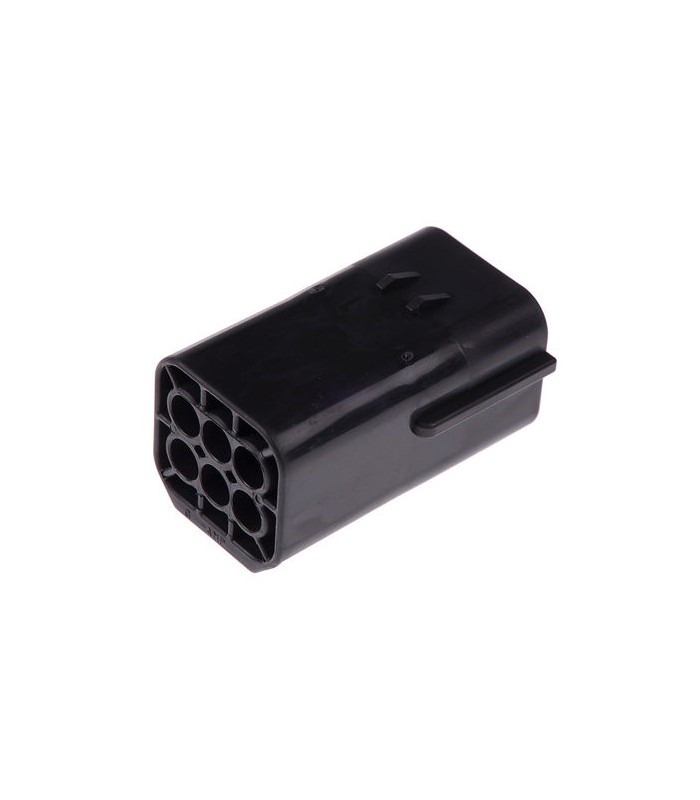

Econoseal J-Mark II Steckverbinder Weiblich 6 wege TE

Errebi code: 13751
Produzent code: 174264-2
Produzent: TE/Connectivity

Mit Ihrem Kauf unterstützen Sie den Verein R.A.Y.    Logo_R.A.Y.
Read moreShow less
2,42 € (tax excl.)
2,95 €

Mengenrabatt

Menge Stückpreis Sie sparen
11 2,66 € 3,20 €
26 2,36 € 15,31 €
51 2,21 € 37,64 €
101 1,92 € 104,67 €
251 1,63 € 333,10 €
501 1,48 € 739,58 €
1001 1,33 € 1.626,92 €
Product available for orders
100 % sichere Zahlungen
Zustand
Neuer Artikel
Reference:
RBCTEJ2M2PM6VT
Beschreibung
Product Type Features
- Connector & Housing Type: Housing for Male Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: No
- Primary Locking Feature: Integrated in Housing
- Strain Relief: No
- Row-to-Row Spacing (mm): 3, 3.5
- Row-to-Row Spacing (in): .118, .138

Configuration Features
- Number of Positions: 6
- Number of Rows: 2

Electrical Characteristics
- Nominal Voltage Architecture (V): 12
- Operating Voltage (VDC): 12

Body Features
- Primary Product Color: Black
- Cable Exit Angle: 180°
- Body Material: PBT

Contact Features
- Mating Tab Width: 1.8 mm [ .071 in ]

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: Yes

Housing Features
- Centerline (Pitch): 4.8 mm [ .189 in ]

Dimensions
- Width: 23.1 mm [ .909 in ]
- Height: 20.6 mm [ .811 in ]
- Length: 35.5 mm [ 1.398 in ]

Usage Conditions
- Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]

Operation/Application
- Circuit Application: Signal

Industry Standards
- UL Flammability Rating: UL 94V-2

Other
- Connector Position Assurance Capable: No
- Serviceable: Yes
Read moreShow less
Artikeldetails
RBCTEJ2M2PM6VT

Technische Daten

Produktart
Steckverbinderkörper
Serie
Econoseal J
Material
PBT (Polybutylenterephthalat)
Farbe
Schwarz
Betriebstemperatur
-30°C bis +105°C
Aussenmass
35,50x23,10x29,30 (L x W x H)
Entzündbarkeit
94V-2
Spannung
12V
Montage
Auf Kabel
Art
Weibilich
Anzahl der Pole
6
Anzahl der reihen
2
Raster
4.80 mm
Ausrichtung
180°
Mindestbestellmenge
1
Maßeinheit
stück
