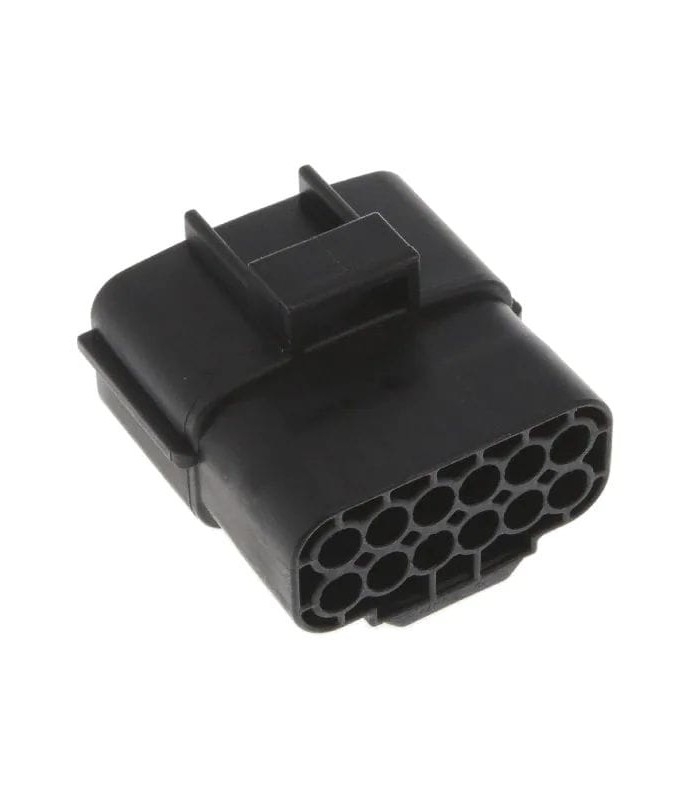

Econoseal J - Mark II Steckverbinder Weiblich 12 wege

Econoseal J Mark II (+) TE Connectivity Series Connector Bodies

A range of Econoseal J Mark II (+) female and male waterproof series wire connector housings for automotive use. The wire seals for these automotive connector housings can be loaded at the same time the contacts are crimped and the retaining dowels can be used to connect unused cavities. The design of these female and male connector housings avoids mismating thus avoiding damage to the contacts. These Econoseal J Mark II (+) series automotive enclosures also have an inserted plate to detect partial mating of contacts and a double locking function.

Features and Benefits
- No. of Positions: 1, 2, 3, 4, 6, 8, 10, 12.
- single circuit application
- Container features include 4.8mm pitch
- Operating temperature range: From -30 ° C to +105 ° C.

Applications
Typically, this product is used in wiring sensors inside engine hoods and used in connections to electrical control systems in extreme and unreliable weather conditions. All connectors are designed for use with thin-walled non-radiated PVC cables. Although initially designed for automotive applications, the Econoseal III can be used in any industry where a reliable sealed connector is required. Econoseal TE Connectivity connection system.

Designed to meet the stringent requirements of the automotive industry to offer a reliable and sealed connector.

All connectors are designed for use with thin non-radiated PVC cables. Thanks to its resistant structure initially for automotive applications, Econoseal III can be used in any industrial sector where the use of reliable and sealed connectors is required.

Type: Container
Number of contacts: 12
Typology: Male
Number of rows: 2
Series: Econoseal J Mk II +
Black colour
Height: 29.3mm
Width: 25.4mm
Depth: 27.6mm
Housing material: PBT
