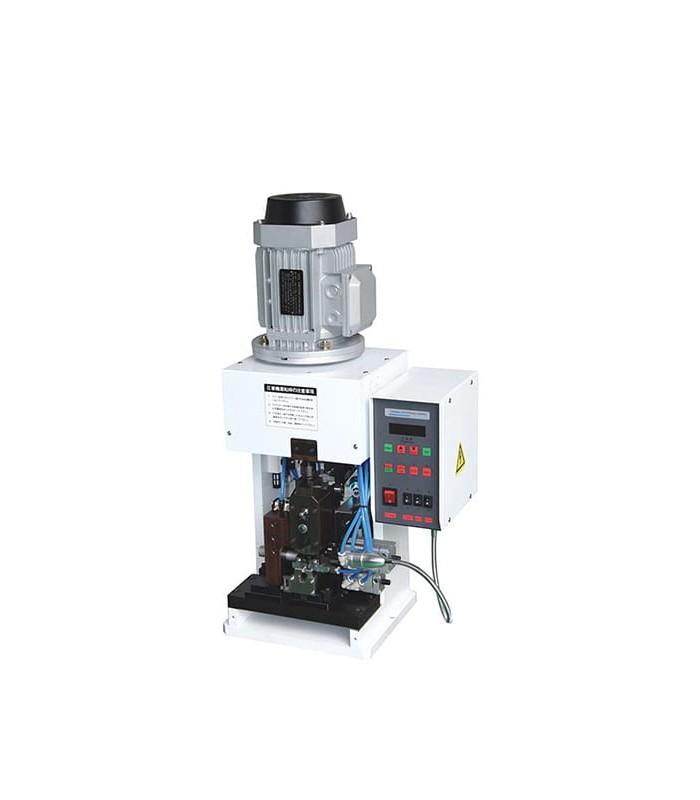

Automatische Maschine zum Abisolieren und Crimpen von Kabelschuhen mit vertikalem Klebebandabschnitt 24–16 AWG

Features
1. Adopts advanced frequency conversion technology to precisely control the variable speed motor, and is equipped with a high-precision control module and a transmission mechanism to make the stripping end one-time completion.
2. Driven by the cylinder, the action speed is fast, and the positioning is accurate.

Technical data:
Model: RBEW5045
Power Supply: Single Phase 200V-240V 45/60Hz
Air Source: 0.5-0.6mpa
Cable section: 24-16 AWG
Applicable wire: AV, AVS, AVSS, CAVUS, KV, KIV, UL,fiber line ,etc.
Stripping length: 1.0-8.0 mm
Cutting error: 0.05-0.1mm
Position error: 0.05-0.1mm
Crimping terminal: Open continuous terminal, straight
Crimping capacity: 2T
Stroke: 50mm
Dimension: 450*500*1000 mm
Weight: 100 Kg
