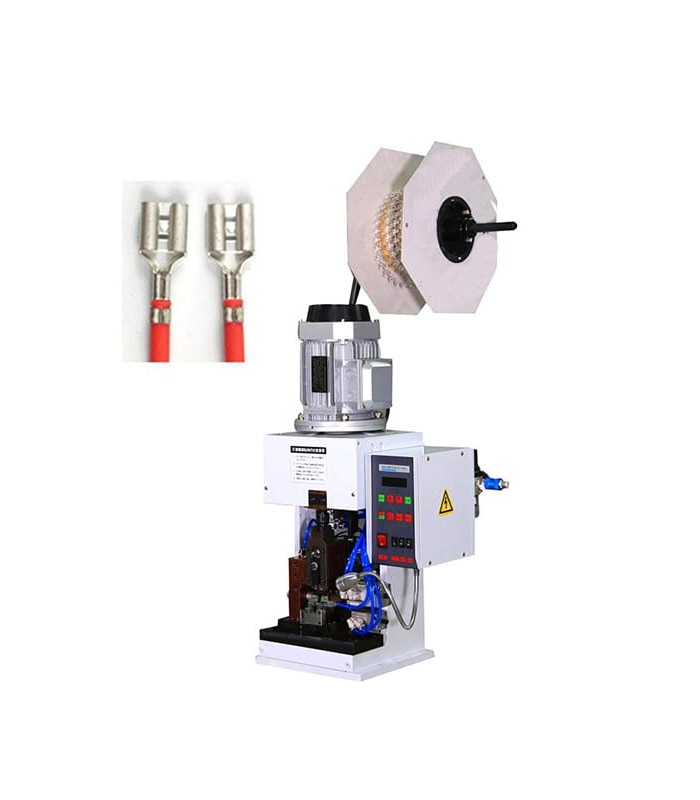

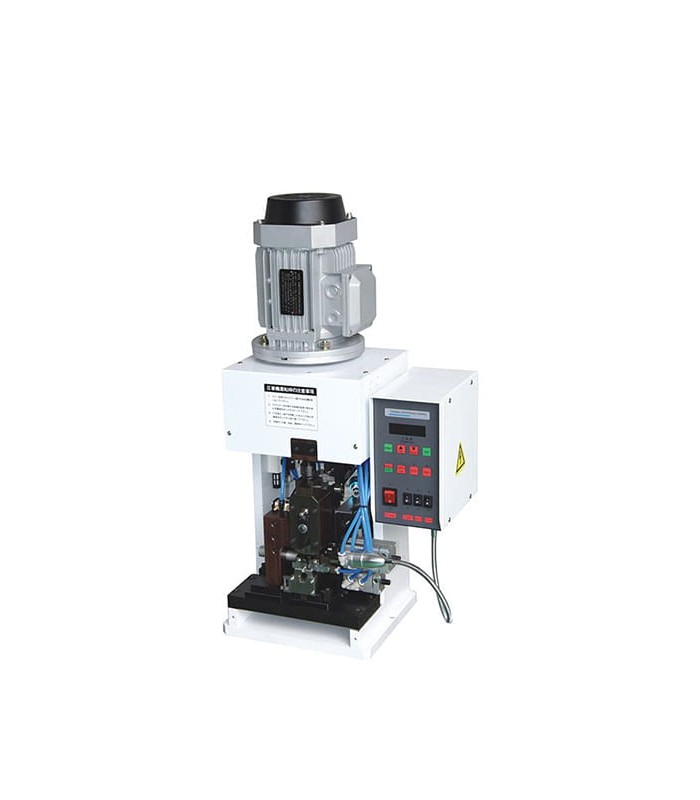

Máquina automática para pelar y prensar terminales con encintado vertical sección 24-16 AWG

Features
1. Adopts advanced frequency conversion technology to precisely control the variable speed motor, and is equipped with a high-precision control module and a transmission mechanism to make the stripping end one-time completion.
2. Driven by the cylinder, the action speed is fast, and the positioning is accurate.

Technical data:
Model: RBEW5045
Power Supply: Single Phase 200V-240V 45/60Hz
Air Source: 0.5-0.6mpa
Cable section: 24-16 AWG
Applicable wire: AV, AVS, AVSS, CAVUS, KV, KIV, UL,fiber line ,etc.
Stripping length: 1.0-8.0 mm
Cutting error: 0.05-0.1mm
Position error: 0.05-0.1mm
Crimping terminal: Open continuous terminal, straight
Crimping capacity: 2T
Stroke: 50mm
Dimension: 450*500*1000 mm
Weight: 100 Kg
