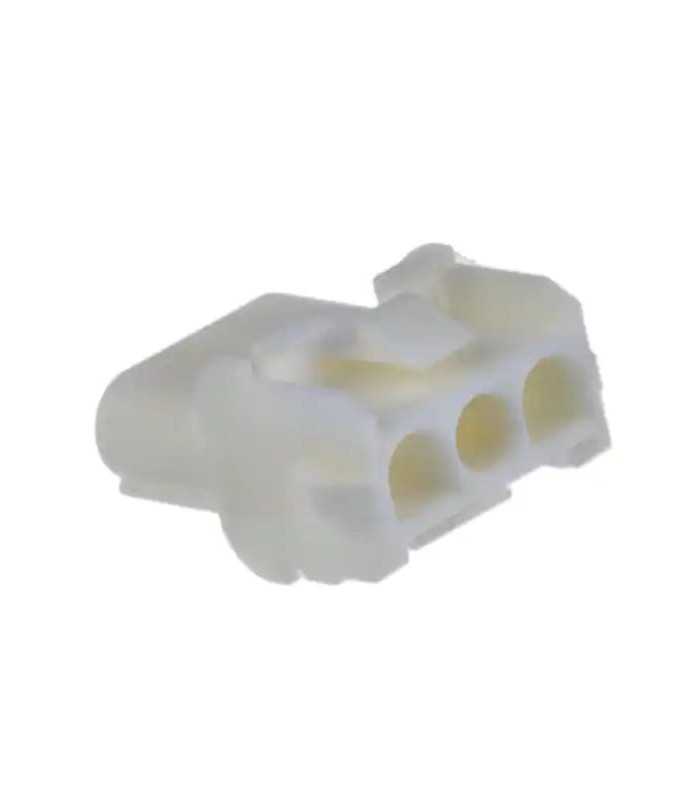

Mate n lok steckverbinder weiblich 3 wege V0

Product type features:
- Rectangular Power Connector Type: Housing
- Connector and housing type: Socket
- Connector system: cable to panel, cable to cable
- Sealable: No
- The connector and the contact end with: wire and cable

Configuration features:
- Number of positions: 3
- Number of lines: 1

Electrical characteristics:
- Operating voltage (VAC): 600

Contact characteristics:
- Retention of contacts inside the accommodation: without
- Contact type: Pin
- Multiple contact types: Without
- Contact layout: online

Termination functions:
- Wire and cable termination method: Crimping

Mechanical attack:
- Panel Mount Feature Type: Patches and Tabs
- Panel mount function: with
- Connector Mounting Type: Panel Mount

Housing features
- Centerline (pitch): 6.35 mm [.25 in]
- Housing color: natural
- Housing material: nylon

Dimensions:
- Panel thickness: 0.76 - 2.29 mm [.76 - 2.29 in]

Terms of use:
- Operating temperature range: -55 - 105 ° C [-67 - 221 ° F]

Operation / Application:
- Circuit application: power and signal
- Assembly integration function: Without

Industry standard:
- UL flammability classification: UL 94V-0
