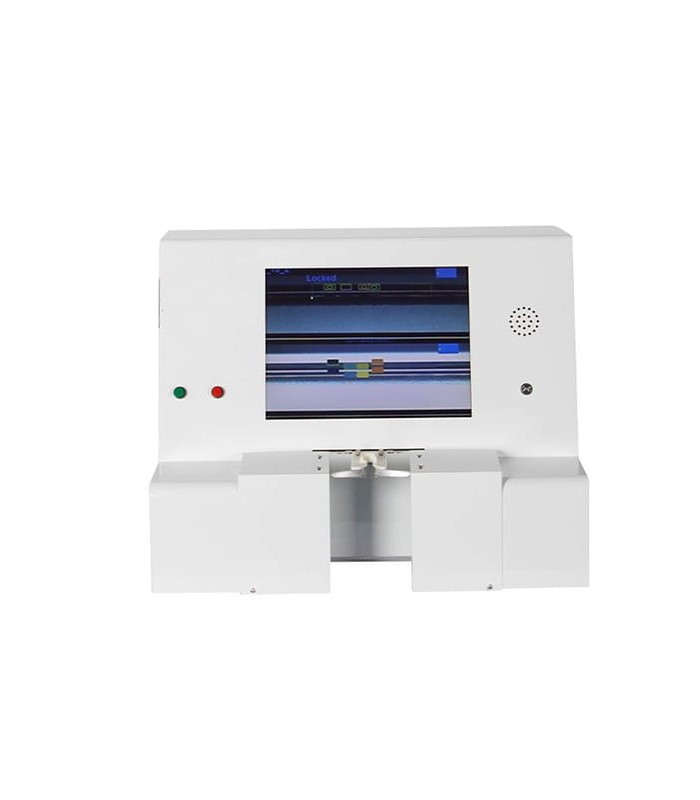

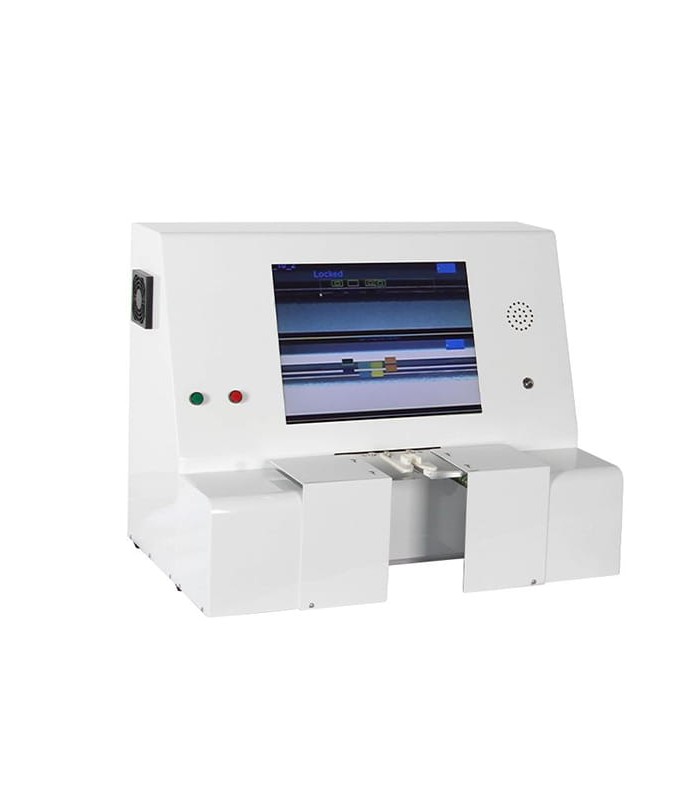

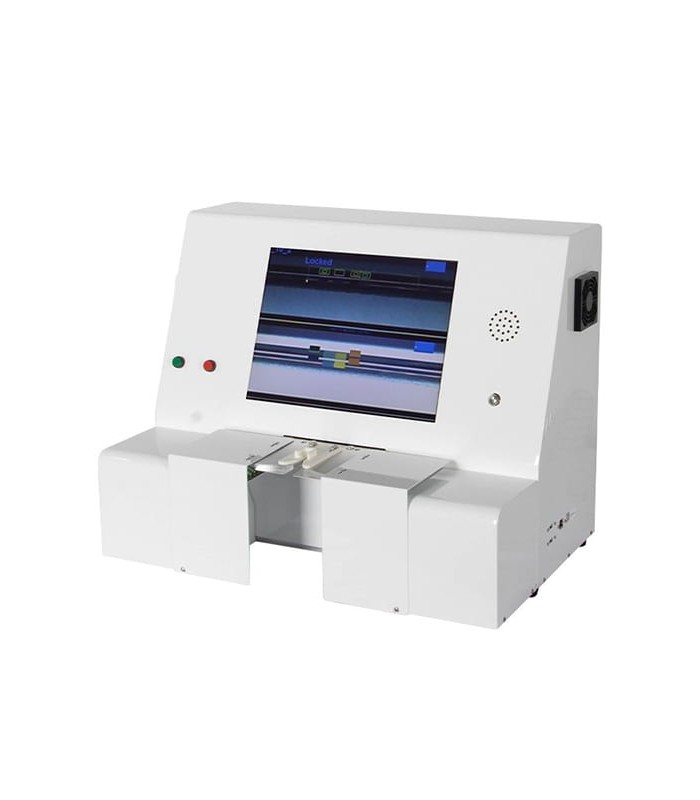

Betrachter zur Erkennung der Farbsequenz zweireihiger Verkabelungen

Characteristics:
1. Designed for double row cables such as ATX power cables
2. It can detect the two sides of the double row sling from the left and right at the same time
3. Suitable for all double-row harnesses, stable and versatile
4. Strong anti-interference ability, colored circles, with inaccurate positioning on the line, etc., which will not affect the test results

Technical data

Model: RBEW2520
Camera parameters: 1280*1024; 60fps; COM
Lens Parameters: Megapixel; 75mm F1.4
Visible range: 1 - 58 mm
Detection time: within 0.2 seconds
Power: 35W
Dimensions: 510x750x610 mm
Weight: 48 kg
