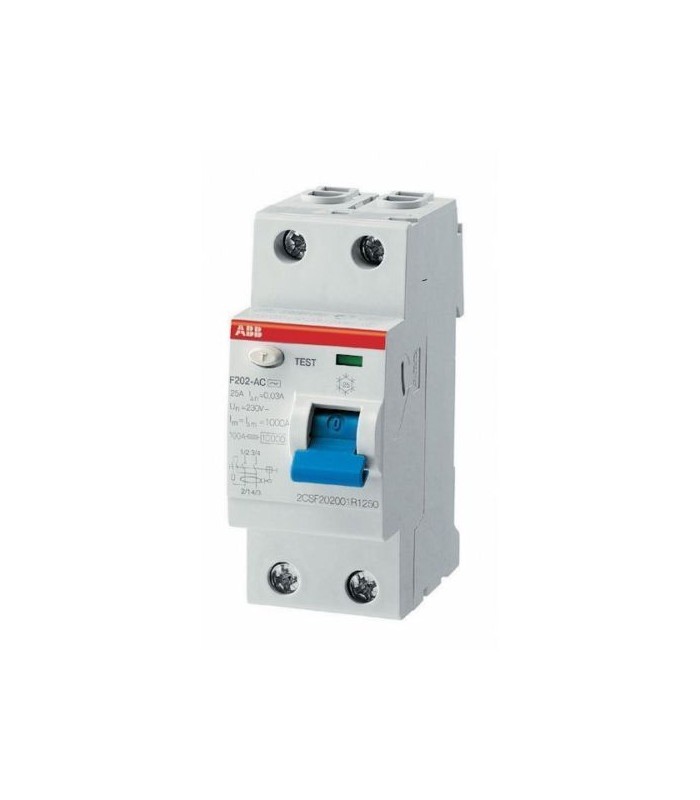

Residual Current Devices Rein F202 AC-25/0,3 2P 25A 100mA (F427803)

General Information
Extended Product Type: F202 AC-25/0,1
Product ID: 2CSF202001R2250
EAN: 8012542780304
Catalog Description: F202 AC-25/0,1 Residual Current Dev.
Long Description: The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Categories
Products » Low Voltage Products and Systems » Modular DIN Rail Products » Residual Current Devices RCDs » Residual Current Devices RCDs

Dimensions
Product Net Height: 0.085 m
Product Net Depth: 0.069 m
Product Net Weight: 0.200 kg
Product Net Width: 0.035 m

Container Information
Package Level 1 Width: 0.041 m
Package Level 1 Height: 0.078 m
Package Level 1 Length: 0.096 m
Package Level 1 Gross Weight: 0.225 kg
Package Level 1 EAN: 8012542780304
Package Level 1 Units: 1 piece

Technical
Operating Characteristic: Instantaneous
Type of Residual Current: AC type
Rated Residual Current: 100 mA
Rated Current (In): 25 A
Number of Poles: 2
Power Loss: at Rated Operating Conditions per Pole 1 W
Rated Voltage (Ur): 230/400 V
Standards: EN 61008, UL 1053
