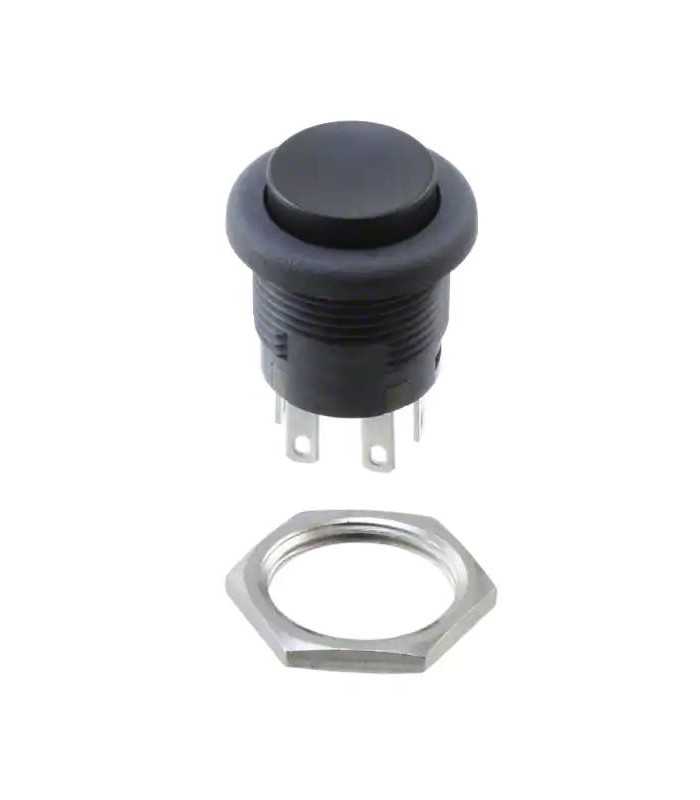

DPDT-Druckschalter (on)-on 3A schwarz mit Ringmutter

Series: LP01
Mounting Type: Panel Mount, Front
Type: Standard
Circuit: DPDT
Switch Function: On-Mom
Current Rating (Amps): 3A (AC/DC)
Voltage Rating - AC: 125V
Voltage Rating - DC: 30V
Actuator Type: Round, Button
Color - Actuator/Cap: Black
Illumination Type, Color: -
Illumination Voltage (Nominal): -
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection: -

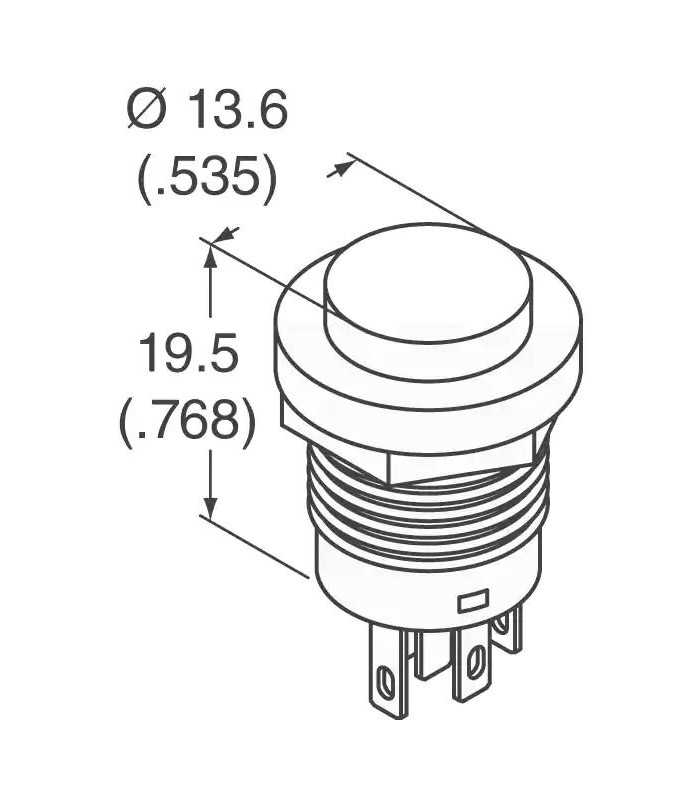

Panel Cutout Dimensions: Circular - 16.00mm Dia
Operating Temperature: -25°C ~ 70°C
Mechanical Life: 500,000 Cycles
Electrical Life: 50,000 Cycles
