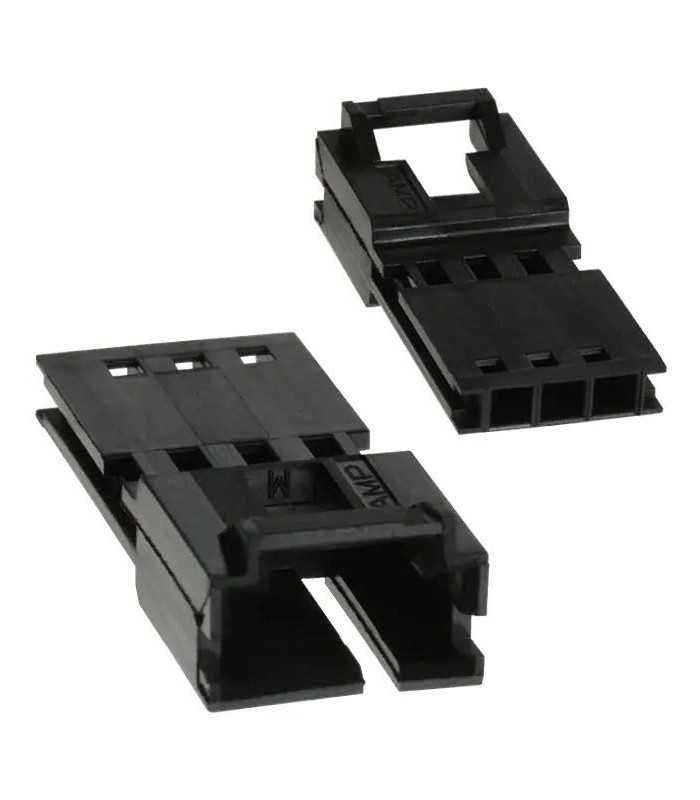

Modu MTE-Steckverbinder weiblich 2-Wege TE

Characteristics of the product type
- Connector Product Type: Housing
- Connector and housing type: Plug
- Connector system: wire-to-board
- Sealable: No
- The connector and the contact end with: wire and cable

Configuration features:
- Number of positions: 3
- Number of lines: 1

Electrical characteristics:
- Operating voltage (VAC): 250
- Dielectric withstand voltage (max) (VACrms): 600

Contact characteristics:
- Contact base material: phosphor bronze
- Contact type: Pin
- Rated contact current (max) A (A): 3
- Contact layout: online

Termination functions:
- Wire and cable termination method: crimp, insulation displacement crimp (IDC)

Mechanical attack:
- Coupling retention type: snap hook
- Retention of coupling: with
- Connector Mounting Type: Cable Mount (Free Hanging)

Housing features:
- Housing material: Thermoplastic
- Centerline (pitch): 2.54 mm [.1 in]
- Housing color: black

Dimensions:
- Connector height: 6.6 mm [.26 in]
- Row-to-row spacing: 2.54 mm [.1 in]
- Connector depth: 10.03 mm [.39 in]

Terms of use:
- Operating temperature range: -65 - 105 ° C
UL flammability classification: UL 94V-0
