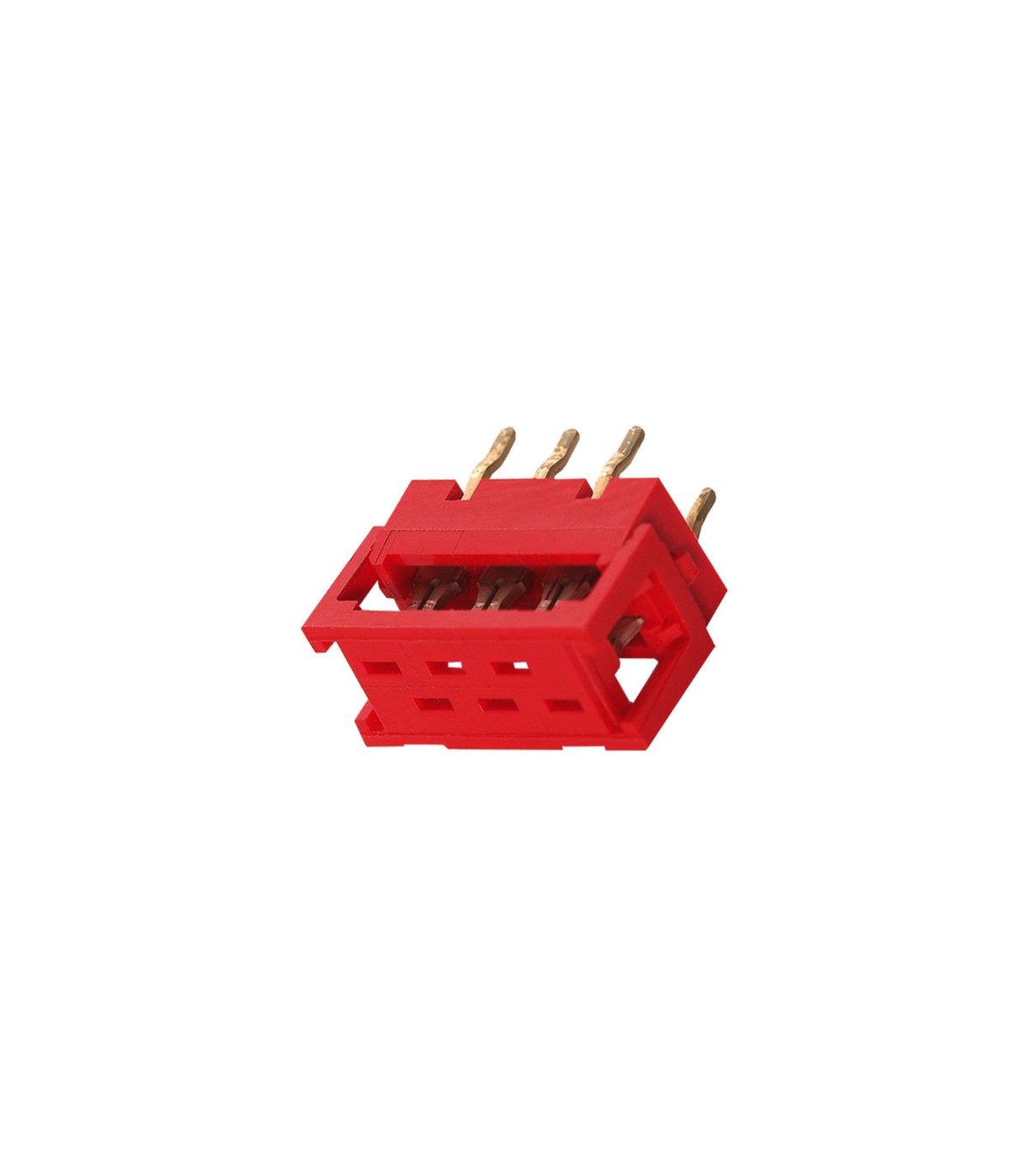

Steckverbinder IDC Micro Match Männlich 6 Wege PCB

Product Type Features

PCB Mounting Orientation: Vertical
Connector Style: Paddle-Board
Profile: Standard
Applies To: Printed Circuit Board
Product Type: Connector
Board Standoff: With
Connector Type: Connector Assembly
Wire/Cable Type: Ribbon Cable
Type of Connector: Paddleboard
Connector System: Cable-to-Board
Ejection Latches: Without

Configuration Features

Number of Positions: 6

Electrical Characteristics

Insulation Resistance (MOhm): 1000
Operating Voltage (VDC): 100

Body Features

Header Type: Pin Header
Daisy Chain: Without

Contact Features

Contact Mating Area Plating Material: Tin over Nickel
Vacuum Tape: Without
Contact Transmits (Typical): Signal (Data)
Solder Tail Contact Plating Material: Tin over Nickel
Contact Current Rating (A): 1.5
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Termination Area Plating Material: Tin over Nickel

Termination Features

Termination Method to PC Board: Through Hole
Termination Method to Wire/Cable: Insulation Displacement Crimp (IDC)
Termination Post Length 3.2 mm [0.125 in]

Mechanical Attachment

PCB Mount Retention: With
PCB Mount Retention Type: Kink
Mating Alignment Type: Polarization
Mating Alignment: Without
Polarization: Without
Panel Mount Retention: Without
Mating Retention: Without
PCB Mount Alignment: Without

Housing Features

Centerline: 1.27 mm [0.05 in]
Housing Color: Red
Housing Material: Polyester - GF

Dimensions

Height: 5.1mm [0.2 in]
Insulation Diameter: 0.9mm [0.035 in]
Length: 11.1mm [0.437 in]
PCB Thickness (Recommended) (mm): 1.6
Wire/Cable Size: 0.08 – 0.09 mm², 28 AWG

Usage Conditions

Operating Temperature Range(°C): -40 – 105

Industry Standards

UL Flammability Rating: UL 94V-0
