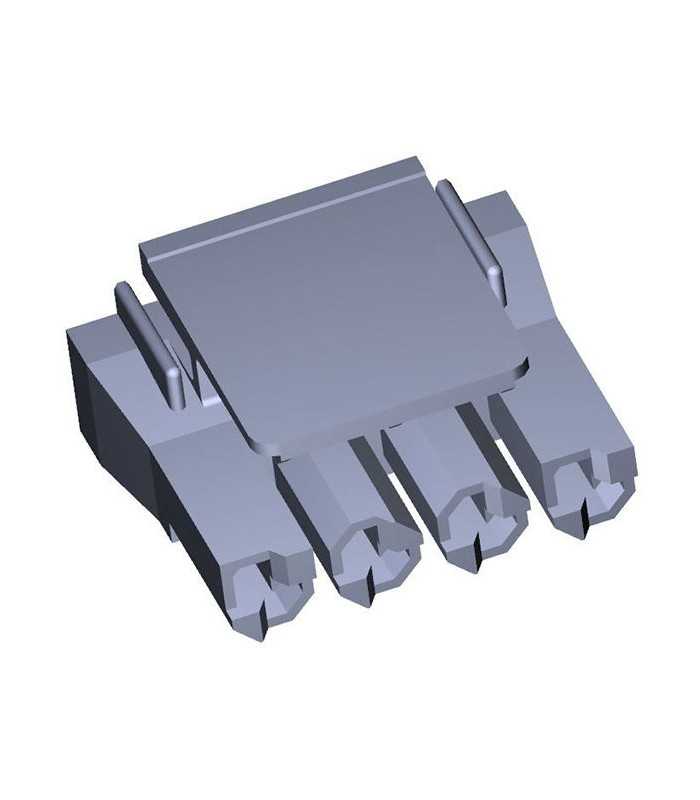

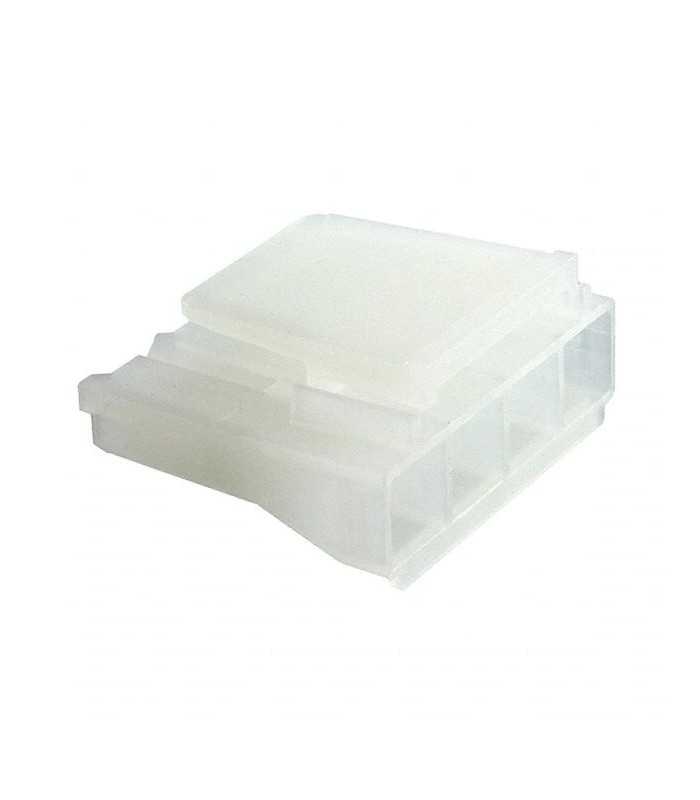

Sabre Steckverbinder männlich 4 wege
ErreBi code: 20242
Produzent code: 44441-1004
Produzent: Molex
Read moreShow lessProduzent code: 44441-1004
Produzent: Molex
1,94 €
(tax excl.)
2,37 €
Zustand
Neu
Reference:
RBCTSBPF4V
Marke:
Zur Wunschliste hinzufügen
Category: Crimp Housings
Series: 44441
Application: Power, Wire-to-Board, Wire-to-Wire
Overview: Sabre Power Connector
Product Name: Sabre
Physical
Circuits (maximum): 4
Color - Resin: Natural
Flammability : 94V-2
Gender: Receptacle
Glow-Wire Capable: No
Keying to Mating Part: Yes
Lock to Mating Part: Yes
Material - Resin: Nylon
Number of Rows: 1
Panel Mount: No
Pitch - Mating Interface: 7.50mm
Polarized to Mating Part: Yes
Stackable: No
Temperature Range - Operating: -40° to +75°C
Electrical
Current - Maximum per Contact: 18.0A
Read moreShow less
Series: 44441
Application: Power, Wire-to-Board, Wire-to-Wire
Overview: Sabre Power Connector
Product Name: Sabre
Physical
Circuits (maximum): 4
Color - Resin: Natural
Flammability : 94V-2
Gender: Receptacle
Glow-Wire Capable: No
Keying to Mating Part: Yes
Lock to Mating Part: Yes
Material - Resin: Nylon
Number of Rows: 1
Panel Mount: No
Pitch - Mating Interface: 7.50mm
Polarized to Mating Part: Yes
Stackable: No
Temperature Range - Operating: -40° to +75°C
Electrical
Current - Maximum per Contact: 18.0A
RBCTSBPF4V
Technische Daten
- Produktart
- Steckverbinder
- Serie
- 44441
- Stromstärke
- 18A
- Material
- PA (Polyamid, Nylon)
- Farbe
- Grau
- Betriebstemperatur
- -40°C a +75°C
- Entzündbarkeit
- 94V-2
- Montage
- Auf Kabel
- Art
- Männlich
- Anzahl der Pole
- 4
- Anzahl der reihen
- 1
- Raster
- 7.50 mm
- Ausrichtung
- 180°
- Mindestbestellmenge
- 1
- Maßeinheit
- stück
Besondere Bestellnummern
- upc
- 822348670598
