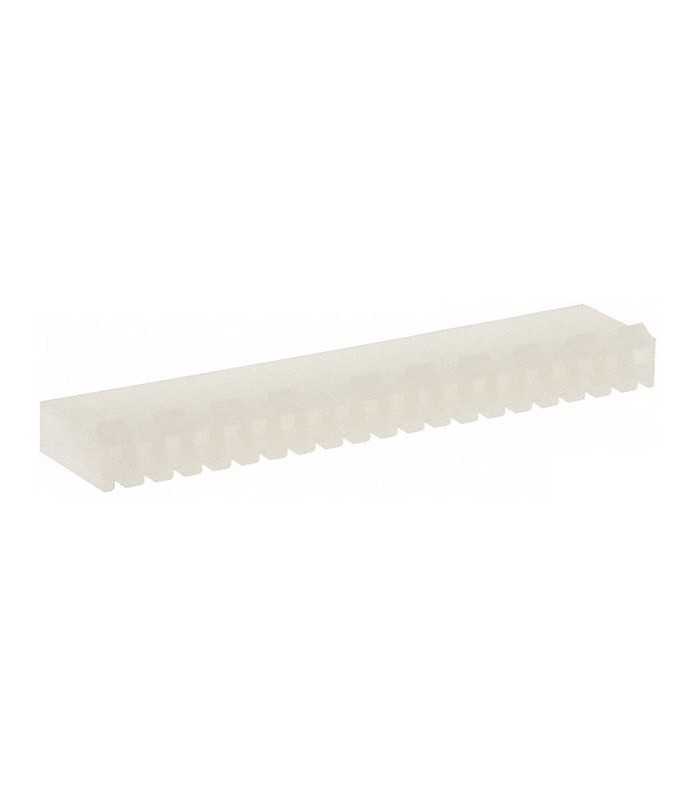

Steckverbinder KK 396 Series 2139 Weiblich 20 Wege Molex

Errebi code: 15769
Produzent code: 09-50-3201
Produzent: Molex
Read moreShow less
2,49 € (tax excl.)
3,04 €

Mengenrabatt

Menge Stückpreis Sie sparen
10 2,74 € 3,00 €
25 2,43 € 15,15 €
50 2,28 € 37,97 €
100 1,97 € 106,63 €
250 1,67 € 341,37 €
500 1,52 € 759,45 €
1000 1,37 € 1.672,31 €
Nur noch wenige Teile verfügbar 11 Artikel
Zustand
Neu
Reference:
RBCTMLLT20VM
Marke:
Zur Wunschliste hinzufügen
Beschreibung
Series: KK
No. of Positions: 20
Pitch Spacing: 3.96mm
For Use With: 2478 Crimp Terminals for 18-24 AWG, 2578 Crimp Terminals for 22-26 AWG
Connector Mounting Orientation: PC Board
Contact Resistance: 20mohm
Contact Termination: Crimp
Current rating: 5A
De-mating Force: 1N
Dielectric Strength: 1500V/m
Gender: Receptacle
Material: White Nylon UL94V-2 / Black Nylon UL94V-0
No. of Contacts: 20
No. of Rows: 1
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Product Range: MOLEX - KK 2139 Series
Termination Method: Crimp
Voltage Rating V AC: 250V
Read moreShow less
Artikeldetails
RBCTMLLT20VM

Technische Daten

Produktart
Steckverbinderkörper
Serie
KK 396 - 2139
Stromstärke
5A
Material
PA (Polyamid, Nylon)
Farbe
Weiß
Betriebstemperatur
-40°C bis +105°C
Entzündbarkeit
94V-2
Spannung
250V
Montage
Für Leitungen
Art
Weibilich
Anzahl der Pole
20
Anzahl der reihen
1
Raster
3.96 mm
Ausrichtung
180°
Mindestbestellmenge
1
Maßeinheit
stück

Besondere Bestellnummern

upc
800753614154
