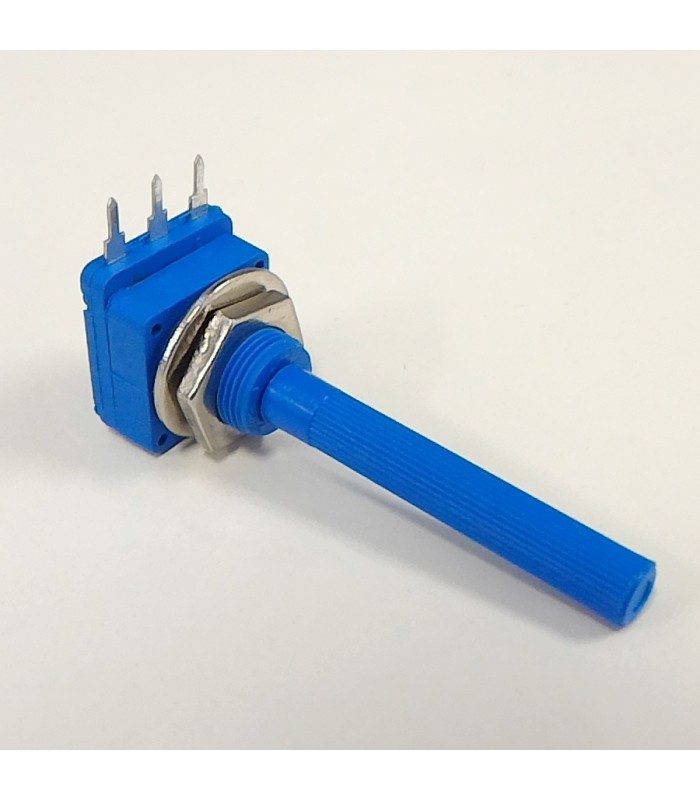

Drehpotentiometer Serie CP16S 4.7 k ohm 10 mW 500 VDC ± 20%

Product Type Features
Turn Type: Single Turn
Element Material: Carbon
Sealed: No
Resistor Type: Potentiometer
Product Type: Variable Resistor
Includes Spindle: Yes

Configuration Features
Sections: Single
Adjustment Location: Side
Adjustment Style: Spindle

Electrical Characteristics
Resistance (O): 4.7K
Power Rating(W): .1
Tolerance: 20%
Resistance Range (O): 1k – 1M
Voltage Rating (V): 125

Body Features
Shaft Style: Serrated

Termination Features
Termination Type: Printed Circuit Board

Dimensions
Shaft Size (mm): 6 x 45
Dimensions (mm): 6 x 6

Usage Conditions
Temperature Coefficient (ppm/°C): 500
