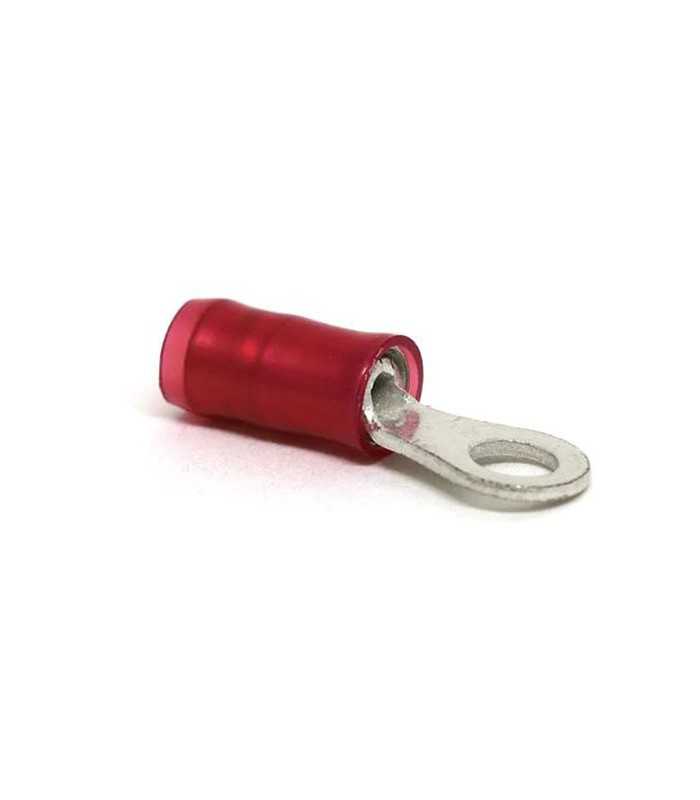

Kabelschuh Ösen 1,5 mm Isoliert Rot Loch 3 Verstärkt

Characteristics of the product type
Ring pin size: 6, M3.5
Barrel type with ring: closed barrel
Sealable: No
Isolated: Yes
Wire / cable type: ring and spade wire: normal wire
Support Style: Insulation Support
Configuration features
Number of holes: 1
Terminal angle: Straight
Electrical characteristics:
Voltage (maximum) (V): 300
Body features:
Ring and Spade Plating Material: Copper, Tin
Stripe color: red
Weight per piece (g): .722
Insulating sleeve color: red
Wire size (AWG): 22 - 16
Cable size (mm²): .3 - 1.42
Cable size (CMA): 509 - 3260
Pin diameter: 3.68 mm [.145 in]
Thickness of the tongue: .79 mm [.031 in]
Total length of ring and spade: 19.86 mm [.782 in]
Ring and spade wire insulation diameter (max): 3.18 mm [.125 in]
Ring and spade wire insulation diameter: 2.03 - 3.18 mm [.08 - .125 in]
