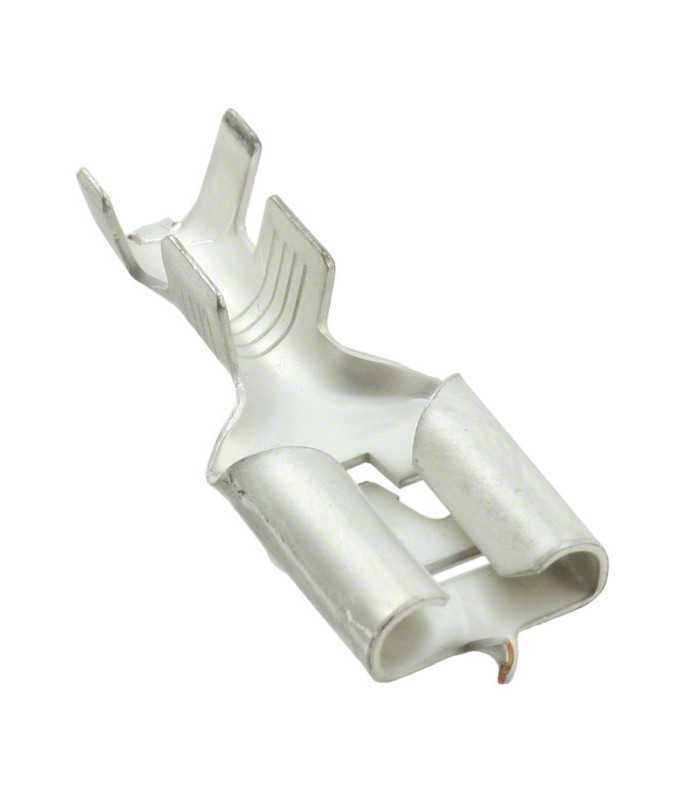

Fastin-Faston Flachsteckhülse 9,5 x 1.19mm Messing Zinn für 10 - 7 AWG

Product Type Features
- Terminates To: Wire & Cable
- FASTON: Yes
- Disconnect Type: Quick Disconnect
- Insertion Force: Normal
- Sealable: No
- Insulated: No
- Wire/Cable Type: Regular Wire
- Wire Stop: No

Configuration Features
- Connection Capacity: Single

Electrical Characteristics
- Voltage (Max)(V): 250

Body Features
- Fully Insulated: Yes
- Plating Material: Tin

Contact Features
- Terminal & Splice Style: Receptacle
- Terminal Type: Receptacle
- Terminal Orientation: Straight
- Barrel Type: Open
- Contact Base Material: Brass
- Crimp Type: F-Crimp

Mechanical Attachment
- Wire Insulation Support: With
- Locking Lance Height(mm): 1.25
- Mating Retention Type: Locking Lance

Dimensions
- Wire Size(AWG): 10 – 7
- Wire Size(mm²): 6 – 10
- Mating Tab Width: 9.53 mm [ 0.375 in ]
- Mating Tab Thickness: 1.22 mm [ 0.048 in ]
- Accepts Wire Insulation Diameter Range : 5 – 7 mm [ 0.197 – .276 in ]
- Receptacle Stock Thickness: 0.51 mm [ 0.02 in ]
- Overall Length: 29 mm [ 1.14 in ]

Usage Conditions
- Operating Temperature Range: -30 to 105°C [ -22 to 221°F ]

Industry Standards
- UL Flammability Rating: UL 94V-2
