1,10 €
(tax excl.)
1,34 €
(inkl. MwSt.)
ErreBi code: 24362Verkauf ein meter

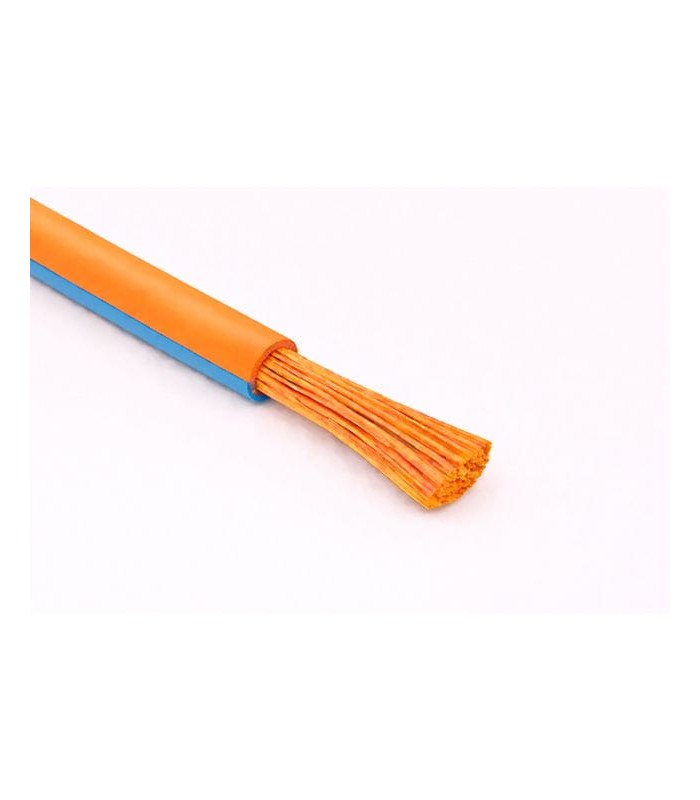

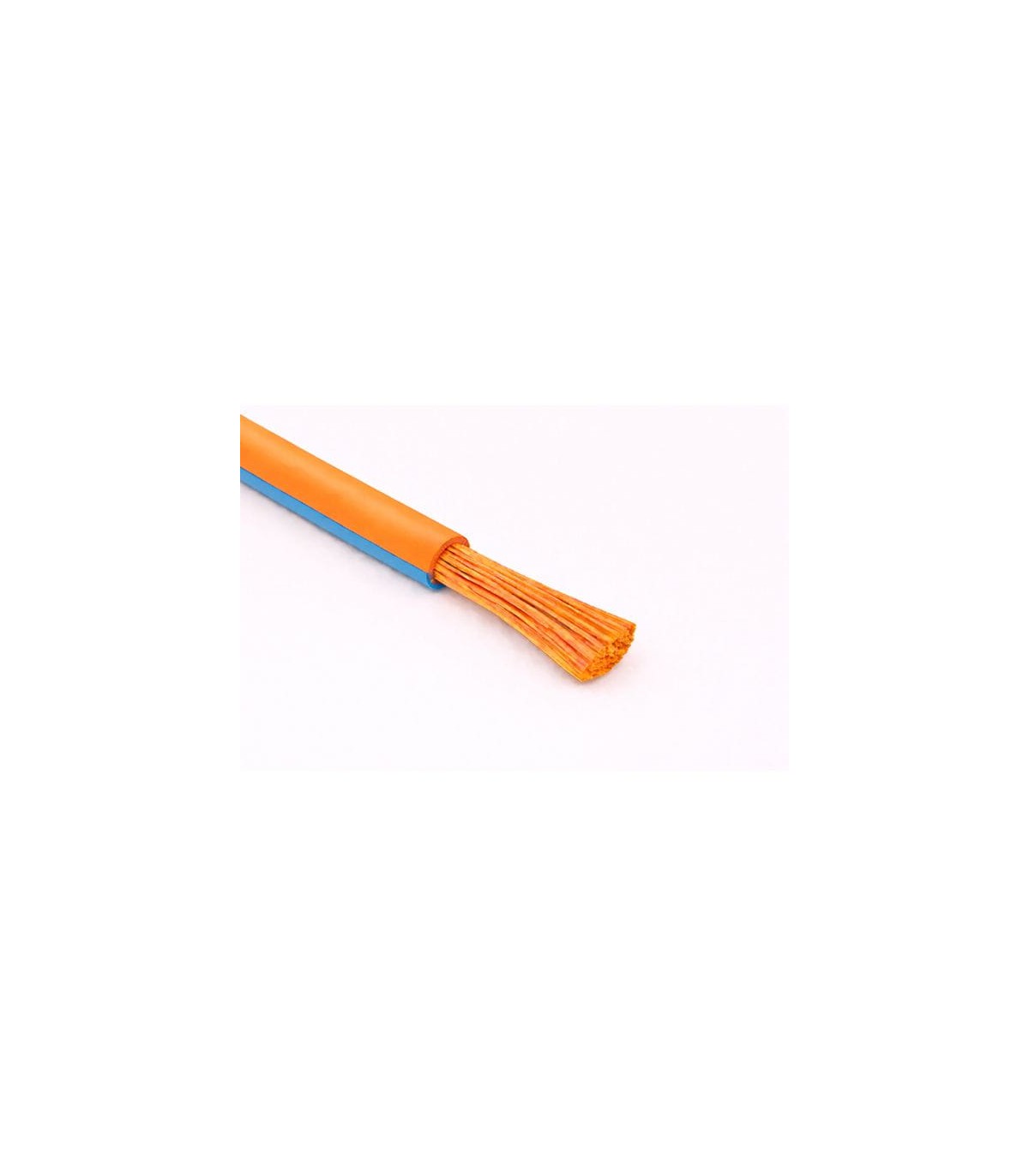

Draht Unipolar Kabel H05V-K abs. 0,35 mmq Orange/Blau
Errebi code: 42345
Verkauf ein meter
Read moreShow lessVerkauf ein meter
0,22 €
(tax excl.)
0,27 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCV0.5H05ARBL
Marke:
Zur Wunschliste hinzufügen
Nominal voltage Uo/U: 300/500 V
Maximum operating temperature: 70°C
Minimum operating temperature: -10°C (without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Read moreShow less
Maximum operating temperature: 70°C
Minimum operating temperature: -10°C (without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
RBCV0.5H05ARBL
Technische Daten
- Produktart
- H05V-K Kabel
- Farbe
- Orange/Blau
- Außendurchmesser
- 2.10 mm
- Spannung
- 300/500V
- Betriebstemperatur min.
- -10°C
- Betriebstemperatur max.
- +70°C
- Dämm Material
- PVC
- Leiter (Material)
- Elektrolytkupfer
- Kabelquerschnitt mmq
- 0.50 mmq
- Anzahl der Stränge
- 16
- Größe der Stränge
- 0.193 mm
- Abschirmen
- Nein
- Spannungsprüfung
- 2500V
- Flammwidrigkeit
- IEC 60332-1-2
- Art der Anstellung
- Interne Verdrahtung
- Widerstand des Dirigenten
- <= 39.0 Ohm/Km
- Mindestbestellmenge
- 10
- Maßeinheit
- meter
