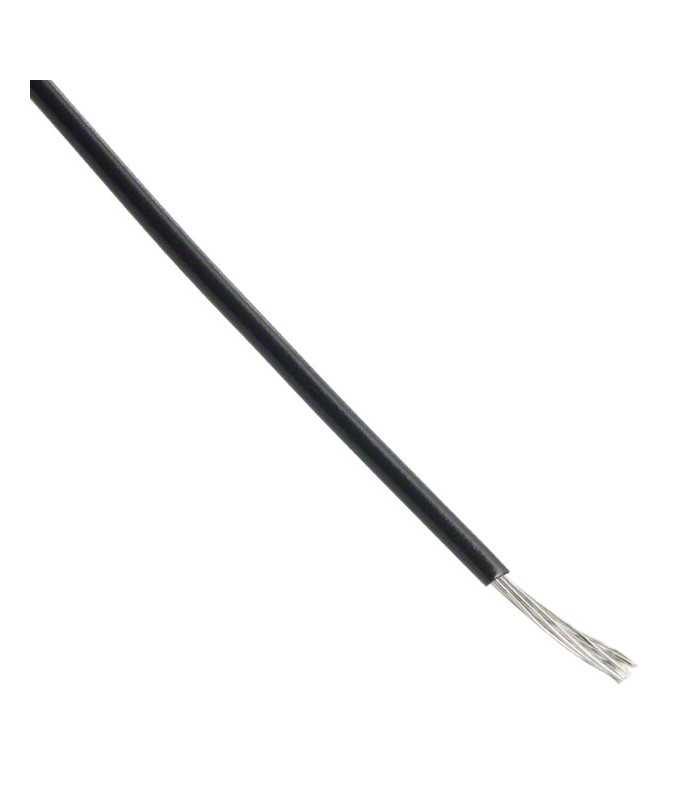

Unipolar Kable UL Style 1213 AWG 26 Teflon PTFE 600V Schwarz

PTFE wire has high temperature resistance, chemical and solvent resistance and excellent electrical properties. This 600V PTFE wire can be used in temperatures ranging from -60°C to +200°C depending on the application.

Silver plated stranded copper conductors protect the wires from corrosion and increase efficiency in hot and humid environments.

Easy to handle, strip and terminate.

PTFE insulation.

The bonding wire can be used for a wide range of applications, whether it is a control cabinet, a high temperature furnace or a specialized machine tool.

Conductor Section: 0.13 mmq
Sheath Color: Black
AWG: 26 AWG
Insulation Material: PTFE
Outer Diameter: 0.71mm
Rated Voltage: 600 V
Conductor Material: Silver-Plated Copper
Wire Type: UL1213
Operating Temperature: -60°C to +200°C
Shield Type: Unshielded
