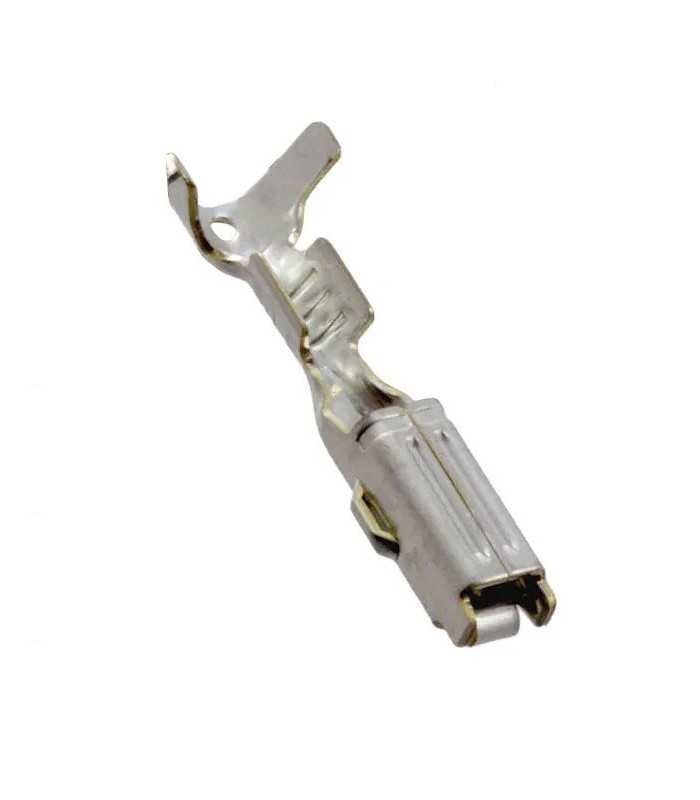

Terminal Econoseal J MK II Weiblich für Kable abs. 0.20-0.50mmq

Product Type Features
- Sealable: Yes
- Primary Locking Feature: Clean Body
- Wire Type: Copper
- Receptacle Style: 180°

Body Features
- Seal Type: Single Wire Seal (SWS)

Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating (A): 6
- Terminal & Splice Type: Receptacle
- Mating Tab Width: 1.8 mm [ .071 in ]
- Mating Tab Thickness: .64 mm [ .025 in ]
- Interface Plating: Tin (Sn)
- Contact Termination Area Plating Material: Tin (Sn)

Termination Features
- Termination Method: Crimp

Dimensions
- Wire Size (mm²): .2 – .5
- Wire Size (AWG): 24 - 20
- Wire Insulation Diameter: 1.5 – 2.2 mm [ .055 – .094 in ]

Usage Conditions
- Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]

Other
- Terminal Transmits: 0 – 24 A (Low Power)
