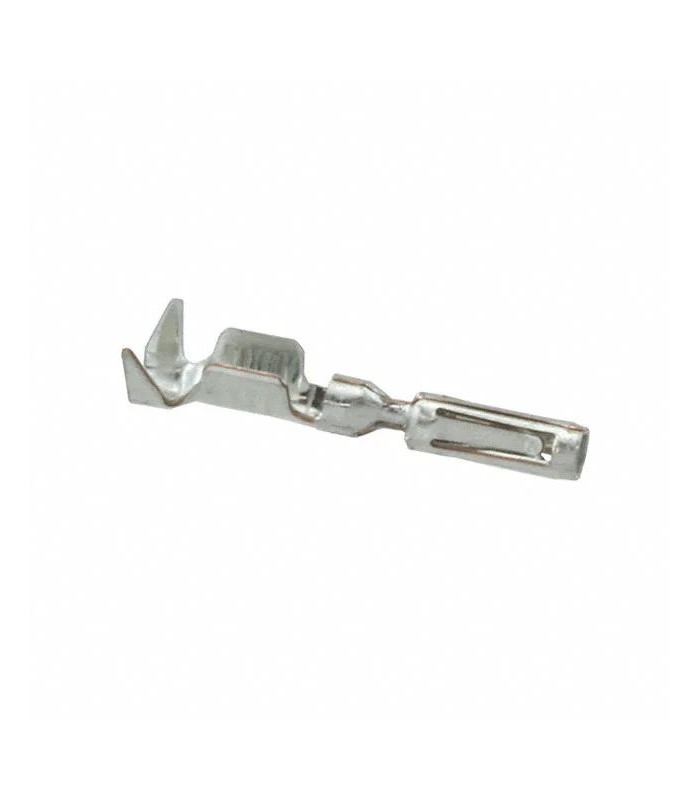

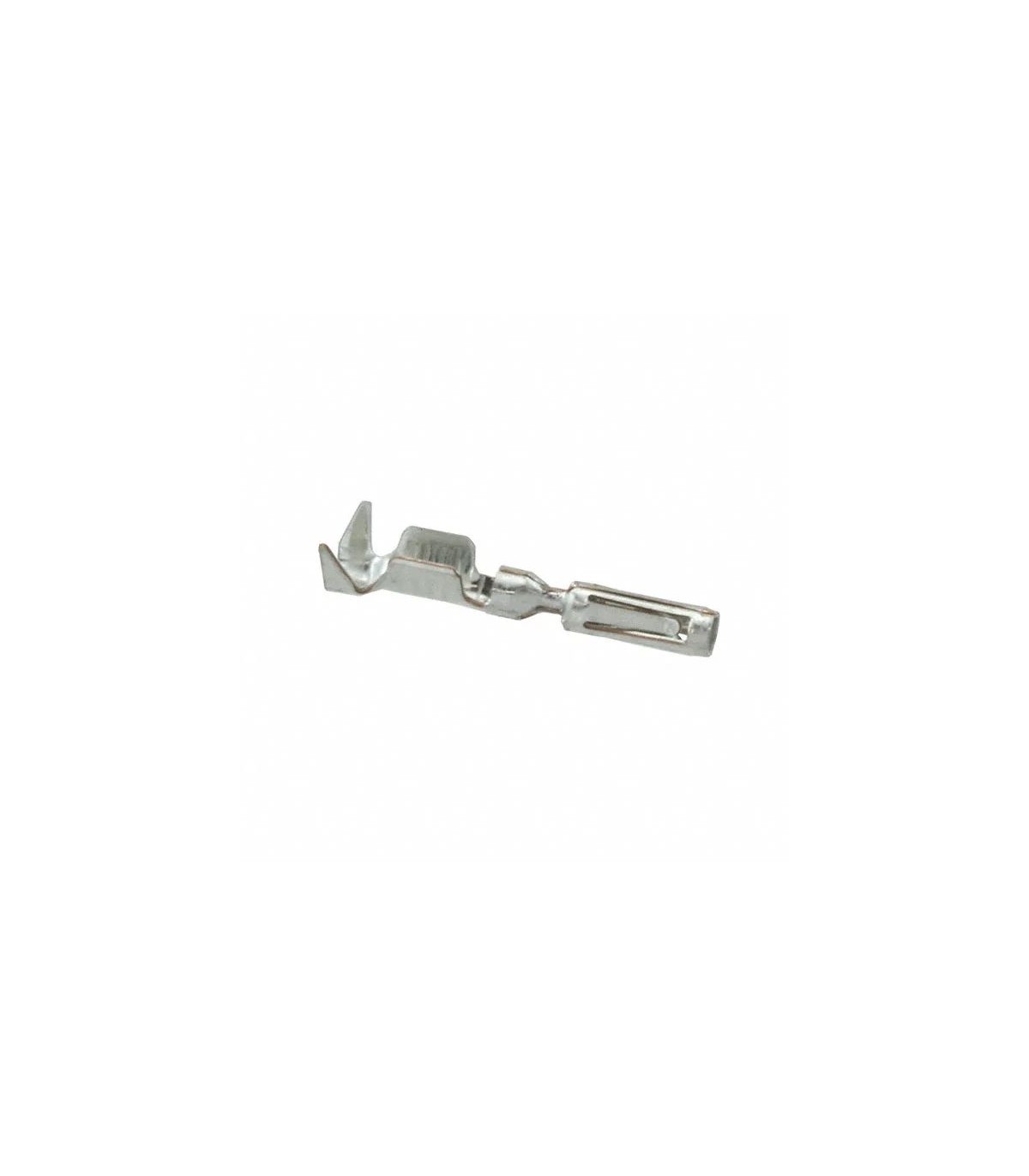

Terminal AmpSeal weiblich für Kable abs. AWG 16-20

Errebi code: 25138
Produzent code: 770520-1
Produzent: TE/Connectivity

0,28 € (tax excl.)

0,34 € (inkl. MwSt.)

Mengenrabatt

Menge	Stückpreis	Sie sparen
30	0,27 €	2,05 €
50	0,26 €	4,27 €
100	0,22 €	11,96 €
250	0,19 €	38,43 €
500	0,17 €	85,40 €
1000	0,15 €	187,88 €

Product available for orders

Die Mindestbestellmenge für diesen Artikel ist 10.

Zustand

Neu

Reference:

RBTNASF16T

Marke:

TE Connectivity

Zur Wunschliste hinzufügen

Beschreibung

Product Type Features
-Sealable: No
-Receptacle Style: 180°

Contact Features
-Crimp Type: F-Crimp
-Typical Current Rating (A): 17
-Terminal & Splice Type: Socket
-Mating Pin Diameter: 1.3 mm [ .051 in ]
-Interface Plating: Tin (Sn)

Termination Features
-Termination Method: Crimp

Dimensions
-Wire Size (AWG): 16 – 20
-Wire Size (mm²): .5 – 1.5
-Wire Size Search (AWG): 15, 16, 17, 18, 19, 20
-Wire Size Search (mm²): .5, .6, .75, .85, 1, 1.25, 1.3, 1.5
-Wire Insulation Diameter : 1.7 – 2.7 mm [ .067 – .106 in ]

Usage Conditions
-Operating Temperature Range (°C): -40 – 125, -40 – 125
-Operating Temperature Range (°F): -40 – 125
