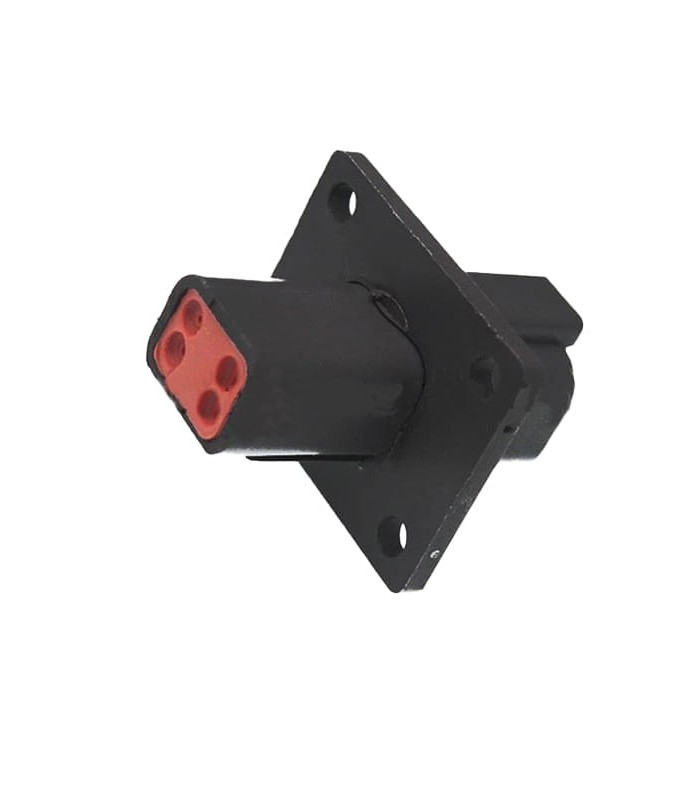

Steckverbinder DT Series Weiblich 4 Wege aus dem Panel schwarz

Number of positions: 4 positions
Pitch: 4.45mm
Gender: Female
Mounting Style: Mounting Flange
Termination style: crimp
Maximum wire diameter: 14 AWG
Minimum wire diameter: 20 AWG
Fixing hole diameter: 1.5mm
Color: Black
Rated current: 13A
Height: 31.75 mm
Housing material: polyamide (PA)
Degree of protection: IP68, PI6K9K
Insulation: isolated
Length: 45.92mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Number of lines: 2 lines
Product Type: Automotive Connectors
Leading: 9.12 mm
Type: 4 way
Rated voltage: 250V
Width: 40.51 mm
Unit weight: 11.786 g
