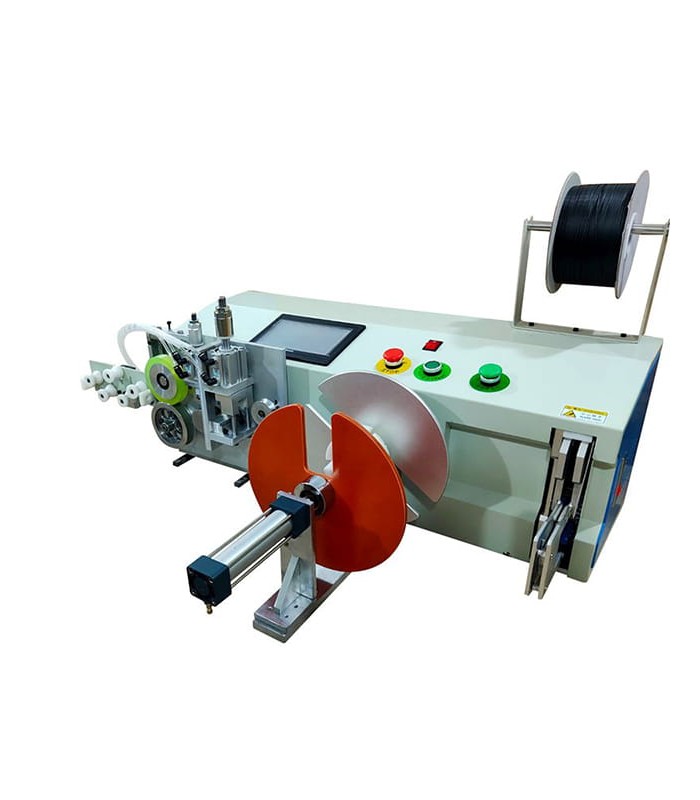

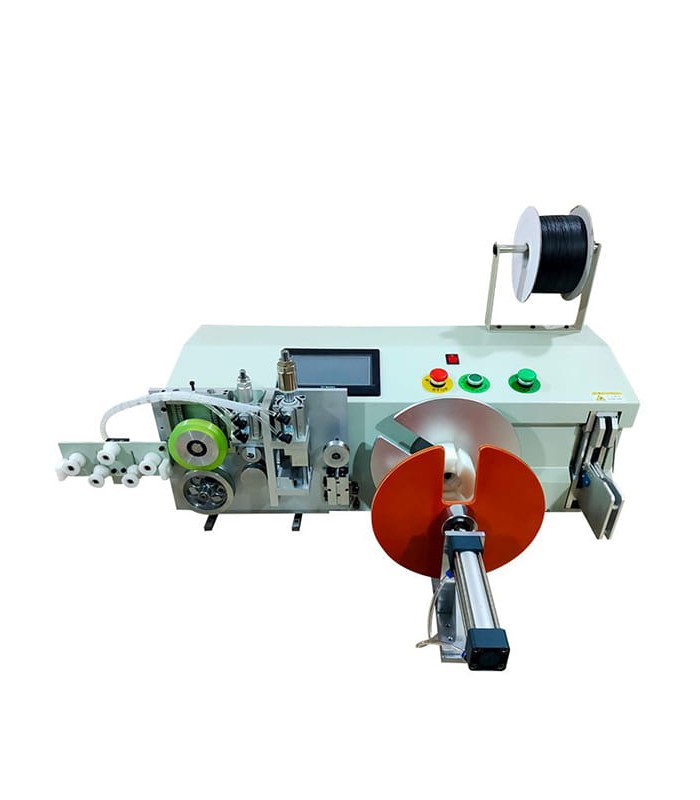

Maschine zum Zuschneiden, Aufwickeln mit und ohne Spule und automatisches Binden von Kabeln mit einem Durchmesser von 1 bis 8 mm

Features
1. This machine is specifically used in fixed length wire winding, cutting
2. The parameter can be freely changed in accordance to the requirements of operator
3. Foot pedal is available, which makes the operation much fast and easier
4. Touch screen.

Technical data
Model: RBEW20S1A
Tying function: Applicable
Tying diameter: 8 - 30/18 - 45 mm
Wire diameter: 1 - 8 mm
Finished coil ID: 50 - 200 mm
Finished coil OD: < 280 mm
Finished coil height: < 100 mm (customizable)
Finished coil weight: < 1.5 Kg
Winding speed: 1 - 6 circles/s
Tying speed: 0.7 s/time
Power supply: 110, 220 V (50 - 60 Hz)
Power: 500W
Dimension: 1100*550*550 mm
Weight: 100 Kg
