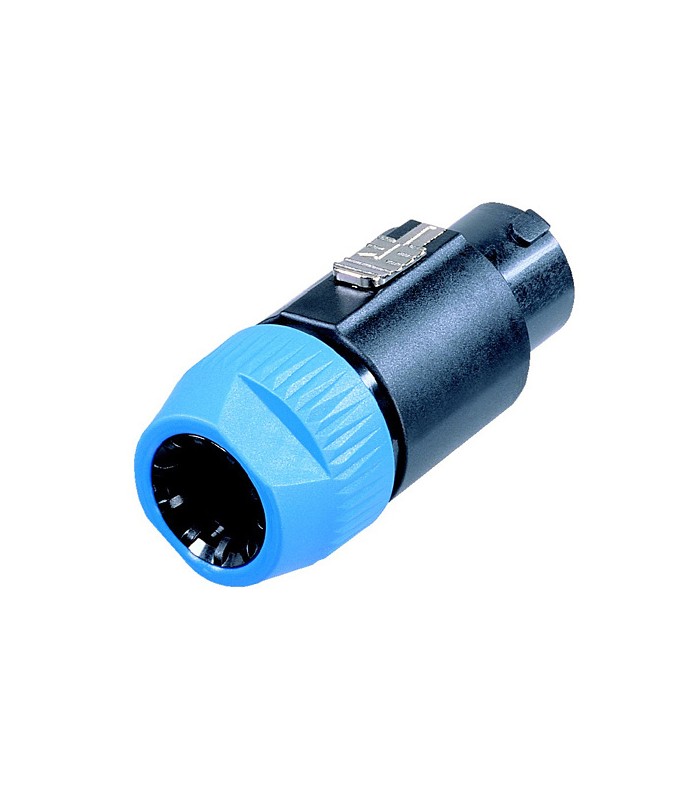

Steckverbinder NL8 Weiblich 8 Wege

8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Features & Benefits
Current rating 30 A rms continuous
Reliable and robust, easy and fast to assemble
Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
Accurate and dependable twist lock latching system "Quick Lock"
High impact material for insert and housing, long-lasting and dependable
Chuck type strain relief system for secure clamping of cable

Product
Title: NL8FC
Connection Type: speakON
Gender: female

Electrical
Contact resistance: = 3 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GO (after dampheat)
Rated current per contact: 30 A rms continuous
Rated current per contact: 40 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical
Cable O.D.: 8 - 20 mm
Cable retention: = 220 N (subject to cable O.D. and material)
Lifetime: > 5000 mating cycles
Wiresize: 4 mm²
Wiresize: 12 AWG
Wiring: screw type terminals or soldering
Locking device: Quick Lock (latch)

Material
Contact plating: 4 µm Ag
Contacts: Brass (CuZn39Pb3)
Insert: PBTP 20 % GR
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Polyamide (PA 6 30 % GR)
Strain relief: Polyacetal (POM)

Environmental
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
