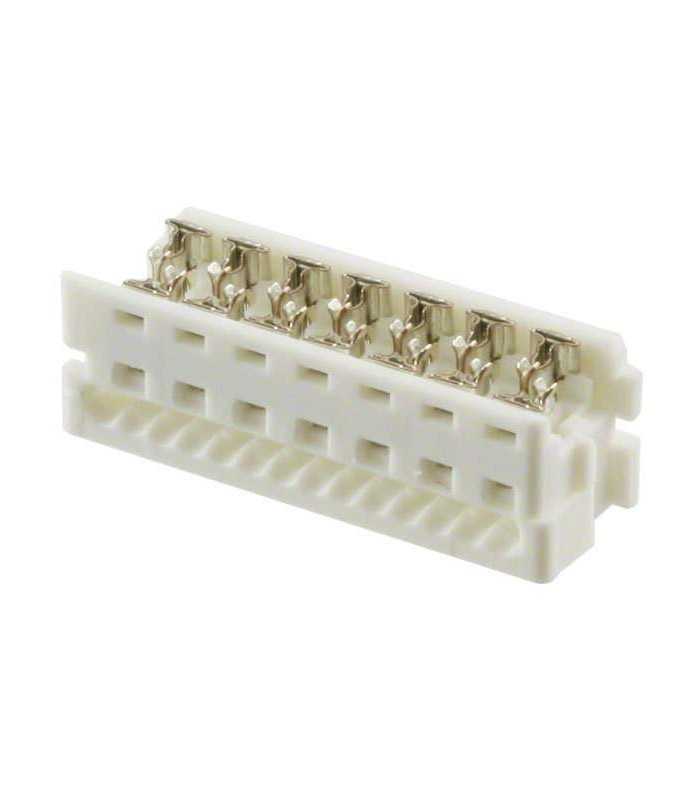

Conector IDC Picoflex Hembra 14 Vías

General
Category: Ribbon Cable / Wire Trap Connectors
Product Name: Picoflex®
Series: 90327
Comments: Low Profile
Component Type: Housing
Glow-Wire Compliant: No

Physical
Circuits (Loaded): 14
Circuits (maximum): 14
Color - Resin: White
Durability (mating cycles max): 30
Entry Angle: Vertical
Flammability: 94V-0
Lock to Mating Part: Yes
Material - Metal: Phosphor Bronze
Material - Plating Mating: Tin
Material - Plating Termination: Tin
Material - Resin: Polyester
Net Weight: 0.828/g
Number of Rows: 2
PCB Locator: No
PCB Retention: None
Pitch - Mating Interface: 1.27mm
Pitch - Termination Interface: 1.27mm
Polarized to Mating Part: Yes
Polarized to PCB: No
Shrouded: Fully
Stackable: No
Surface Mount Compatible (SMC): N/A
Temperature Range - Operating: -40°C to +105°C
Termination Interface: Style: IDT or Pierce
Wire Insulation Diameter: 1.00mm max.
Wire Size AWG: 26, 28
Wire/Cable Type: Ribbon Cable

Electrical (Please review the Product Specification for specific details.)
Current - Maximum per Contact: 1.2A
Voltage - Maximum: 250V

Agency Certification
CSA: LR19980
UL: E29179
