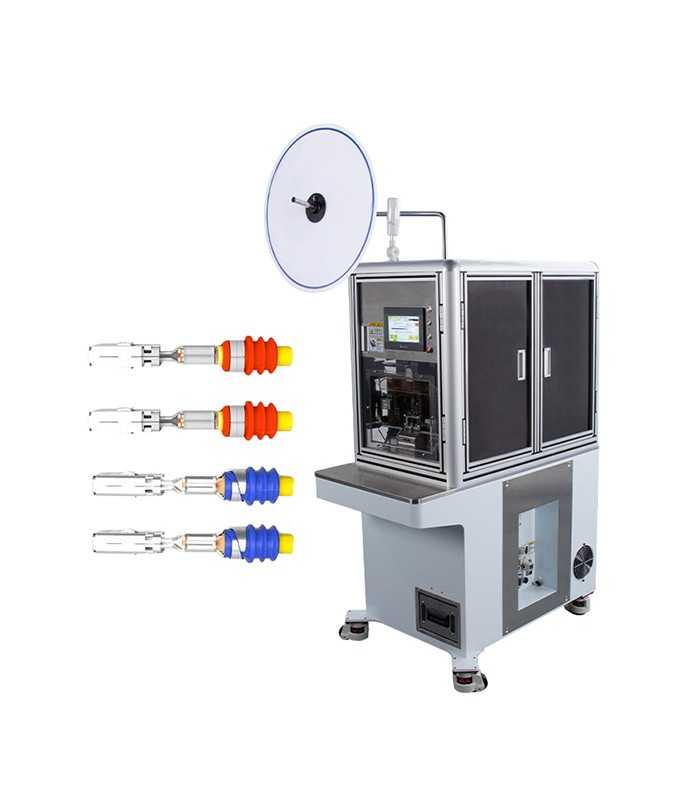

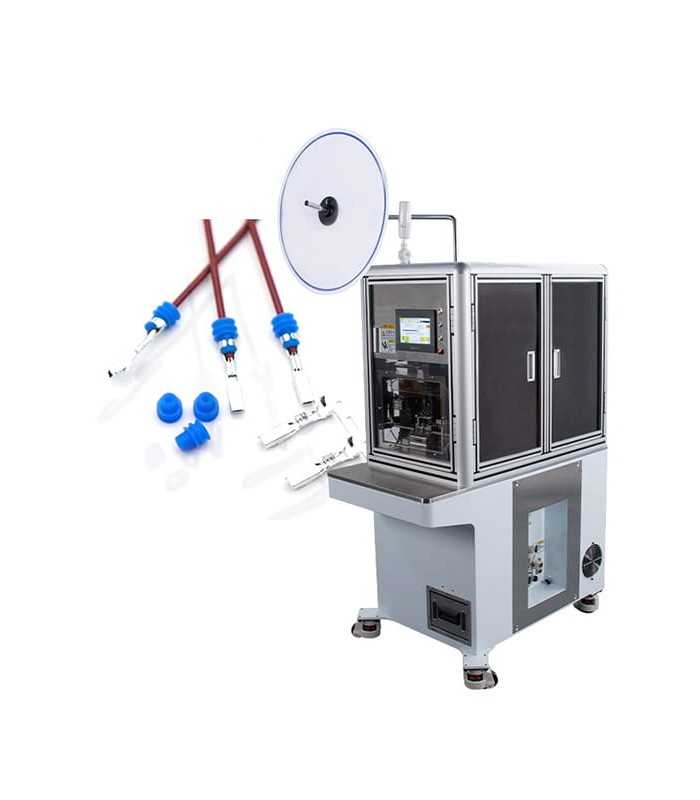

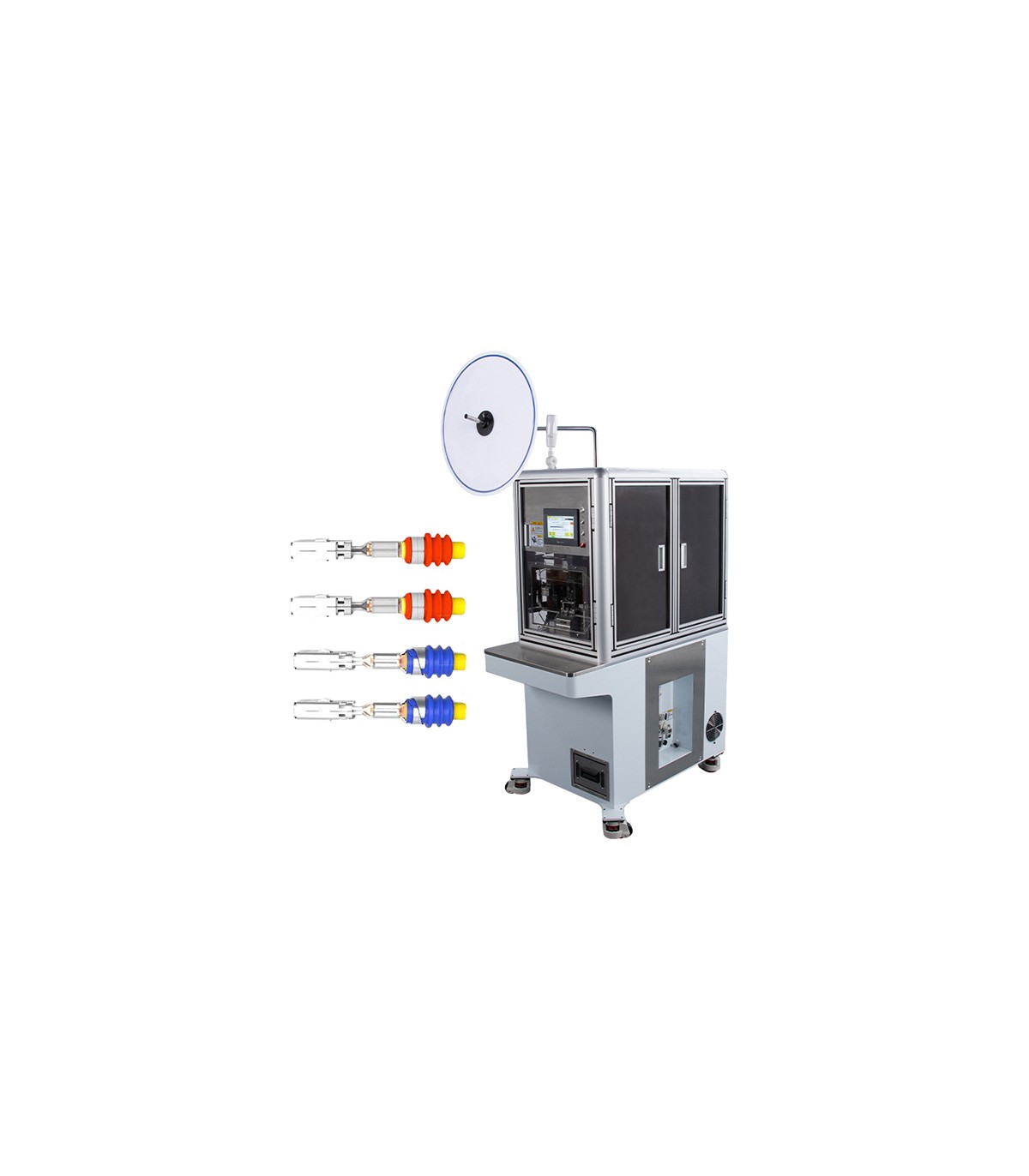

Máquina semiautomática para pelado y engaste de terminales con inserción de conectores impermeables

Technical data

Model: RBEW5030
Cable section: 0.2 - 2.50 mmq
Adjustable stripping length: 0.1 to 10 mm
Cutting accuracy: ±0.02 mm
Crimping force: up to 3.0 tons (30KN-3T)
Stroke: 40 mm
Voltage: 220V/110V, 50/60Hz
Air pressure: 0.5 - 0.7 mPa
Weight: 300 kg
Dimensions: 850 x 880 x 1300 mm

Advanced features:
- High efficiency servomotor: ensures fast and stable crimping operations.
- Screw stripping system: ensures precise and adjustable stripping length.
- Motorized cutting mechanism: allows fine adjustment of cutting parameters for greater precision.
- Waterproof connectors power supply: easy to replace, adaptable to different types of products.
- Bilingual user interface (Chinese/English): for intuitive and accessible management.
