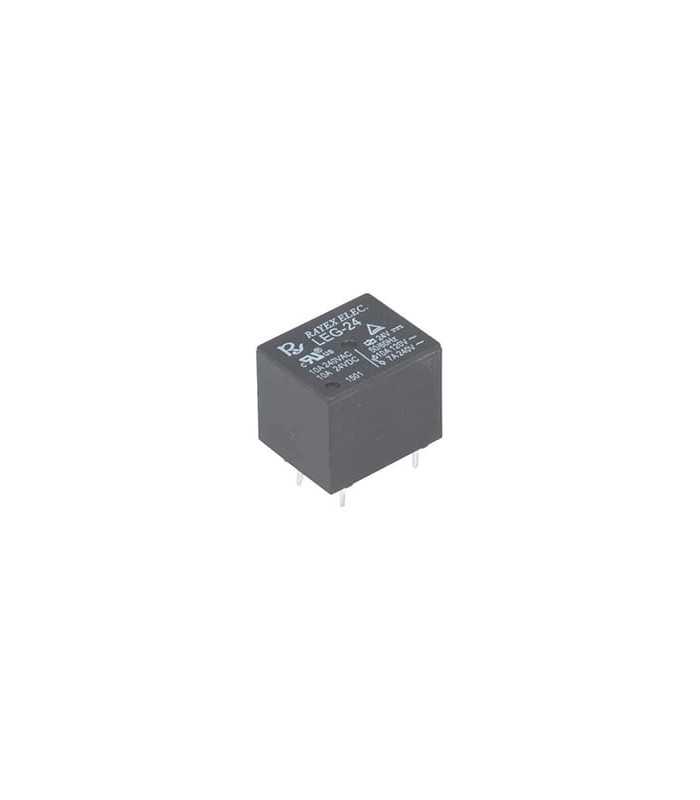

Relais électromagnétique SPST-NO 24V 10A PCB
Code ErreBi: 54961
Code Producteur: LEG1A-24
Producteur: RAYEX
Lire la suiteShow lessCode Producteur: LEG1A-24
Producteur: RAYEX
1,29 €
(tax excl.)
1,57 €
TTC
Condition
Neuf
Référence:
RBRESPST24V10ACS
Marque:
Ajouter à la liste de souhaits
Manufacturer: RAYEX
Relay type: electromagnetic
Contact configuration: SPST-NO
Coil rated voltage: 24V DC
Maximum current per contact: 10A
AC load capacity @R: (with resistance load): 10A / 120V AC
DC load capacity @R: (with resistance load): 10A / 24V DC
Switching voltage: max. 100V DC, max. 240V AC
Assembly: PCB
Coil resistance: 1.6kO
intervention time: 8ms
External dimensions: 19.5x15.8x15mm
release time: 8ms
Coil power consumption: 360mW
Working temperature: -25...80°C
Contact resistance: 100mO
Lead spacing: 2mm
Coil current: 15mA
