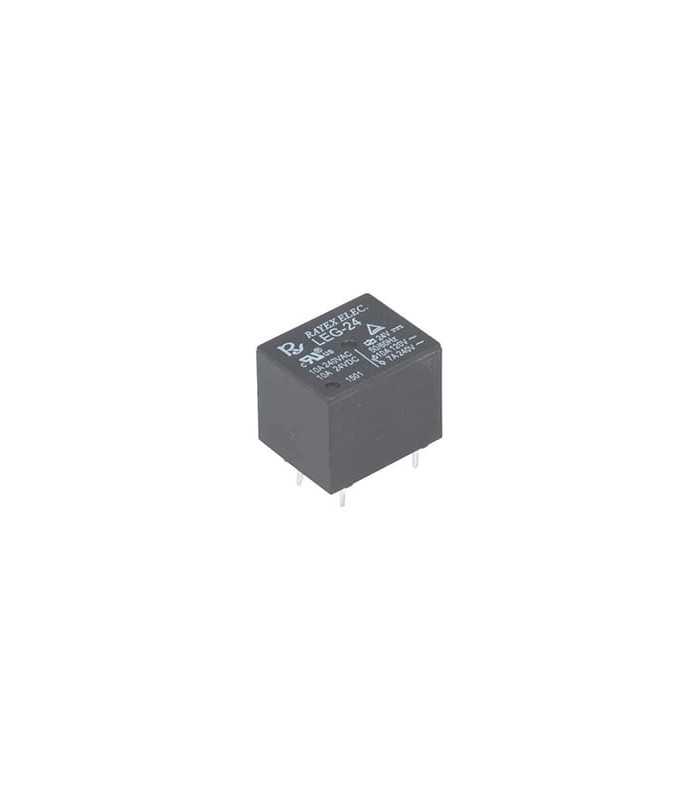

Relé electromagnético SPST-NO 24V 10A PCB

Manufacturer: RAYEX
Relay type: electromagnetic
Contact configuration: SPST-NO
Coil rated voltage: 24V DC
Maximum current per contact: 10A
AC load capacity @R: (with resistance load): 10A / 120V AC
DC load capacity @R: (with resistance load): 10A / 24V DC
Switching voltage: max. 100V DC, max. 240V AC
Assembly: PCB
Coil resistance: 1.6kO
intervention time: 8ms
External dimensions: 19.5x15.8x15mm
release time: 8ms
Coil power consumption: 360mW
Working temperature: -25...80°C
Contact resistance: 100mO
Lead spacing: 2mm
Coil current: 15mA
