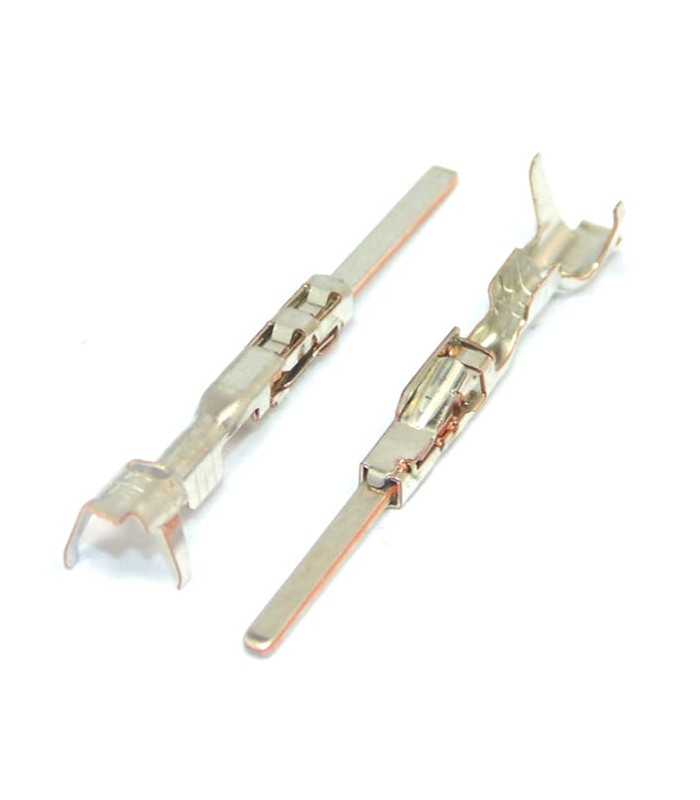

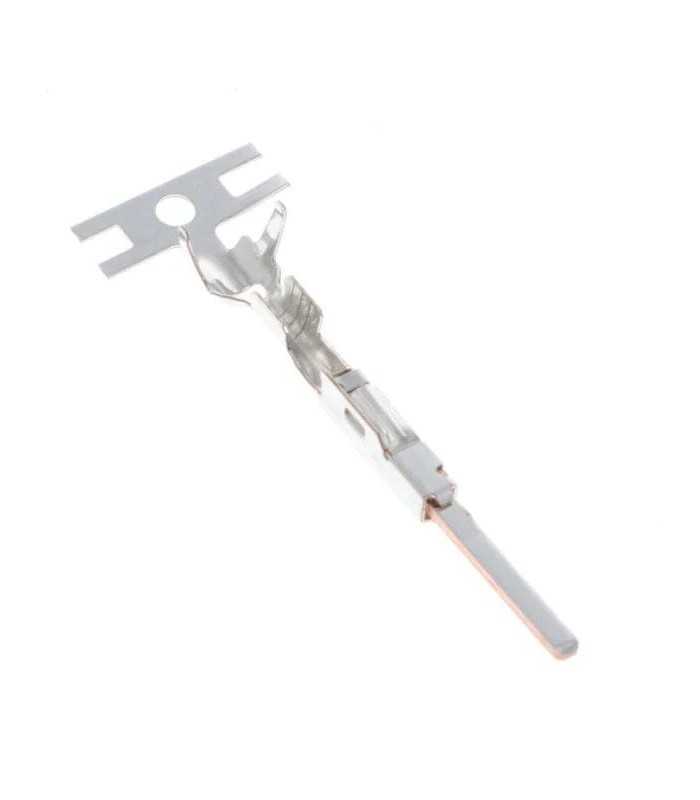

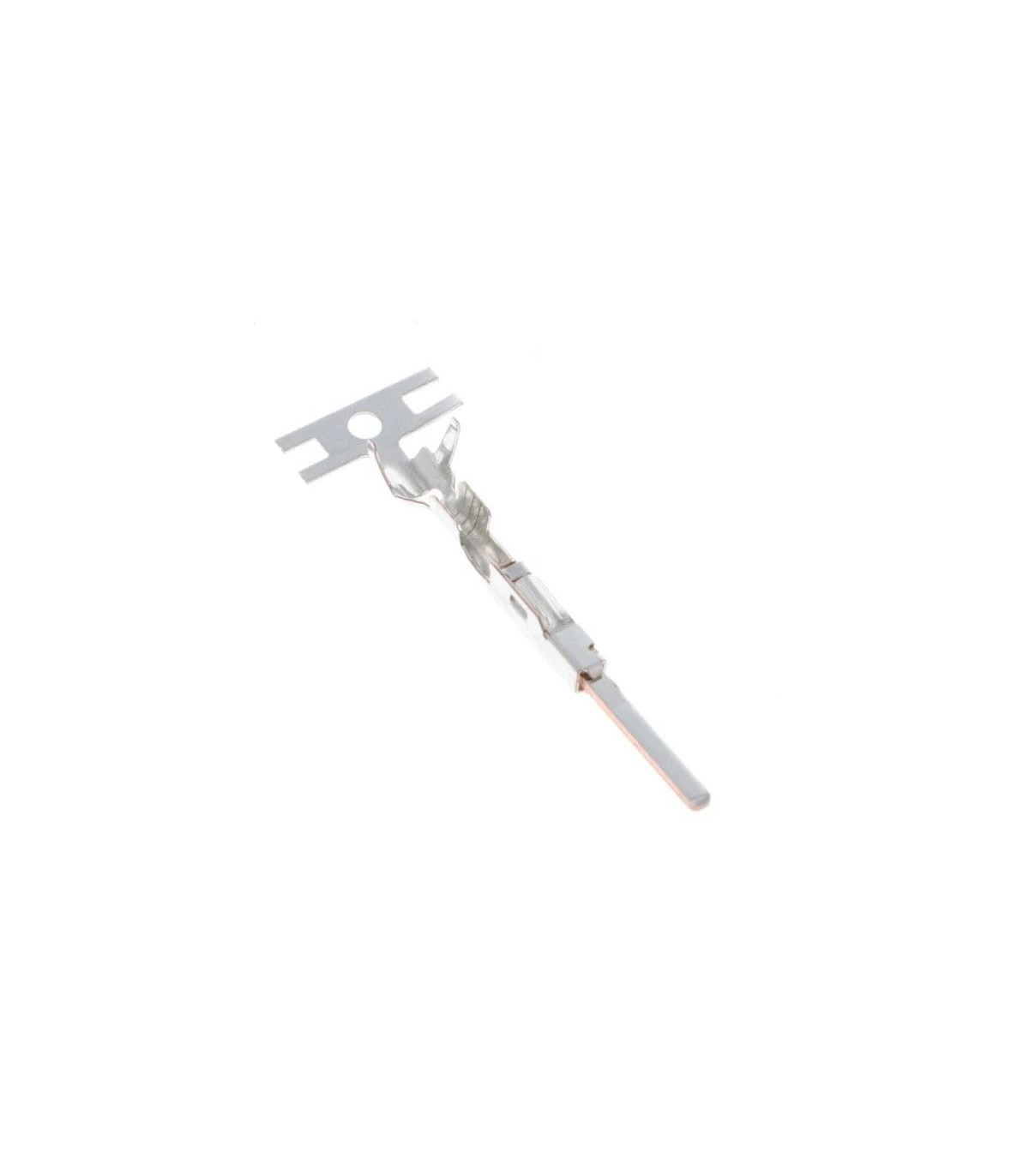

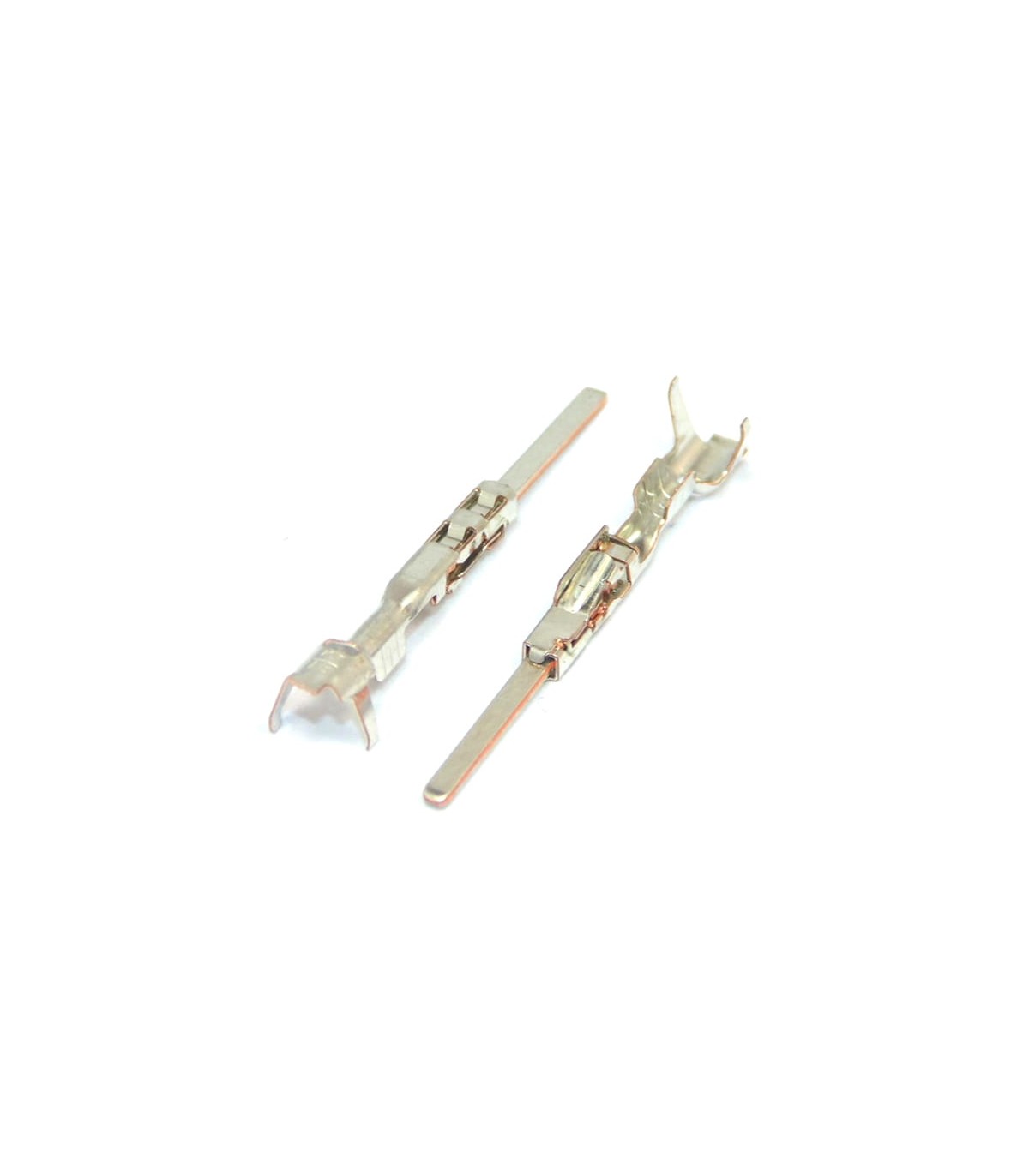

Connecteur de la série MCON 1.2, mâle, pour câbles de section 20-18 AWG

The 1718760-1 terminal is a crimpable flat terminal from the MCON 1.2 mm series, designed to ensure reliable and compact connections, especially in automotive and industrial applications.

The body is made of copper alloy with a tin-plated finish, a choice that ensures excellent conductivity and corrosion protection. The plug measures 1.2 x 0.6 mm, perfectly fitting into the appropriate MCON family housings.

It supports conductors from 0.5 to 0.75 mm² (AWG 20-18), with insulation diameters between 1.4 and 1.9 mm, and can handle currents up to approximately 10 A continuously.

The termination is a crimp type: the terminal is attached to the cable with a special pliers, ensuring a solid electrical and mechanical contact.

Designed to withstand the most demanding conditions, it operates flawlessly in a temperature range of -40°C to +130°C. Furthermore, the locking lance design ensures secure connection and is also suitable for sealable connectors.

This terminal is therefore ideal for automotive wiring, signaling systems, small power or control circuits, and in general for any application where compact size, reliability, and resistance to vibration and temperature changes are essential.

Manufacturer: TE Connectivity
Product: Terminals
Gender: Male
Mounting Style: Cable Mount
Termination Style: Crimp
Contact Plating: Tin
Wire Size: 20-18 AWG
Series: MCON 1.2 mm
Brand: TE Connectivity
Gender: Male
Contact Material: Copper Alloy
Rated Current: 10 A
Voltage: 250 V
Material: Copper
Maximum Operating Temperature: +130 °C
Minimum Operating Temperature: -40 °C
Mounting Angle: Straight
Weight: 0.24 g
