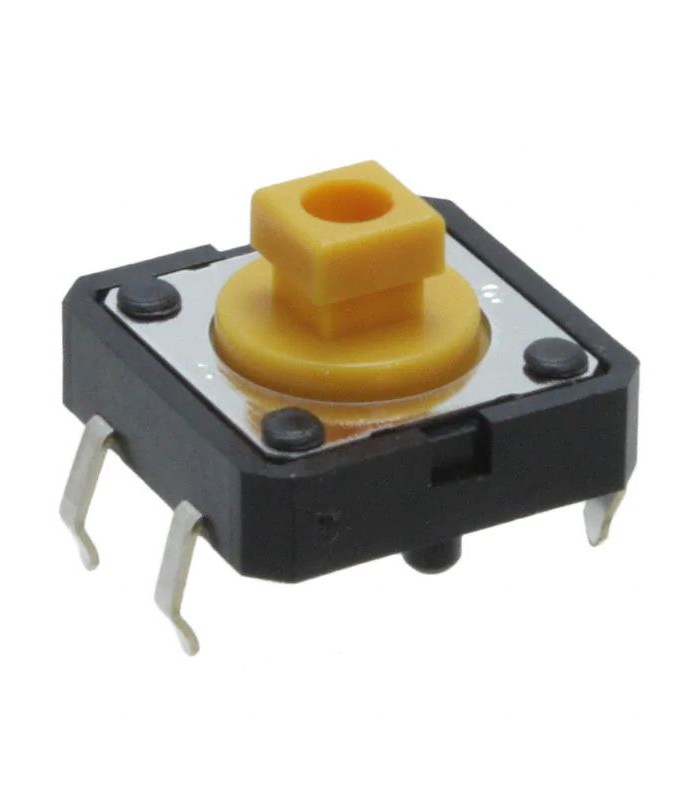

Presionar el botón micro interruptor B3F 12x12 PCB
Código ErreBi: 25026
Código productor: B3F-4055
Productor: OMRON
Lee masShow lessCódigo productor: B3F-4055
Productor: OMRON
0,34 €
(tax excl.)
0,41 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBMIP12X12CS
Marca:
A lista de deseos
Illuminated: Non-Illuminated
Illumination Colour: -
Lamp Type: -
Mounting Style: Through Hole
Mounting Direction: Straight

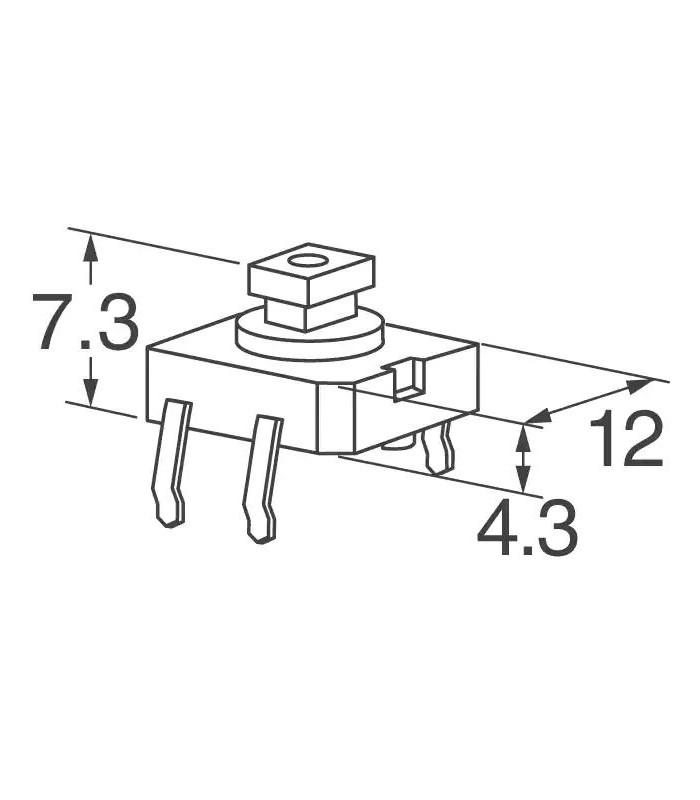

Stem Height: 7.3 mm
Actuator: Rectangular
Operating Force: 2.5 N
Current Rating: 50 mA
Voltage Rating DC: 24 VDC
Voltage Rating AC: -
Ground Terminal: Yes
Contact Form: SPST
Termination Style: Solder Pin
Length: 12 mm
Width: 12 mm
Height: 3.5 mm
Series: B3F
Operating Temperature(°C): -25° a +70°
Product Type: Tactile Switches
Unit Weight: 850 mg
Lee masShow less
Illumination Colour: -
Lamp Type: -
Mounting Style: Through Hole
Mounting Direction: Straight
Stem Height: 7.3 mm
Actuator: Rectangular
Operating Force: 2.5 N
Current Rating: 50 mA
Voltage Rating DC: 24 VDC
Voltage Rating AC: -
Ground Terminal: Yes
Contact Form: SPST
Termination Style: Solder Pin
Length: 12 mm
Width: 12 mm
Height: 3.5 mm
Series: B3F
Operating Temperature(°C): -25° a +70°
Product Type: Tactile Switches
Unit Weight: 850 mg
