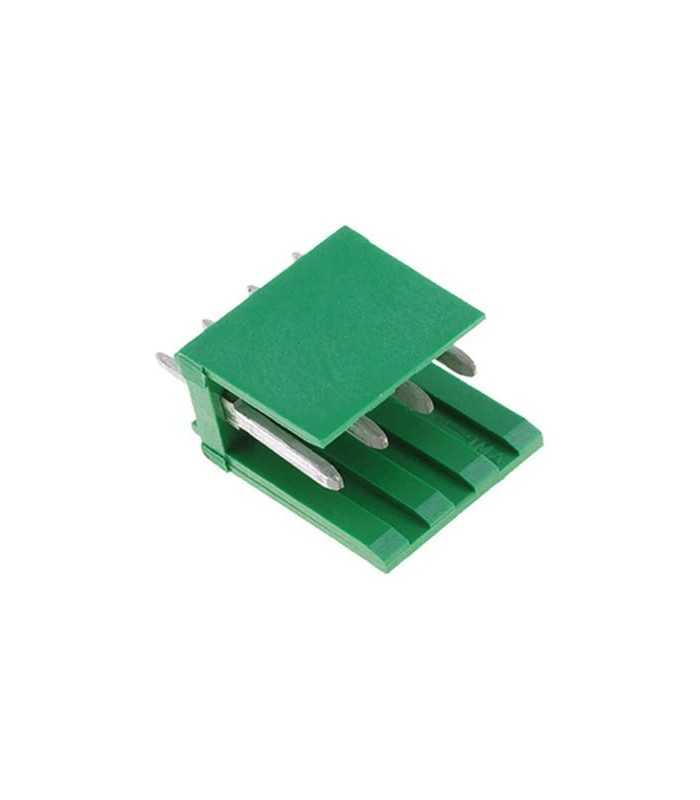

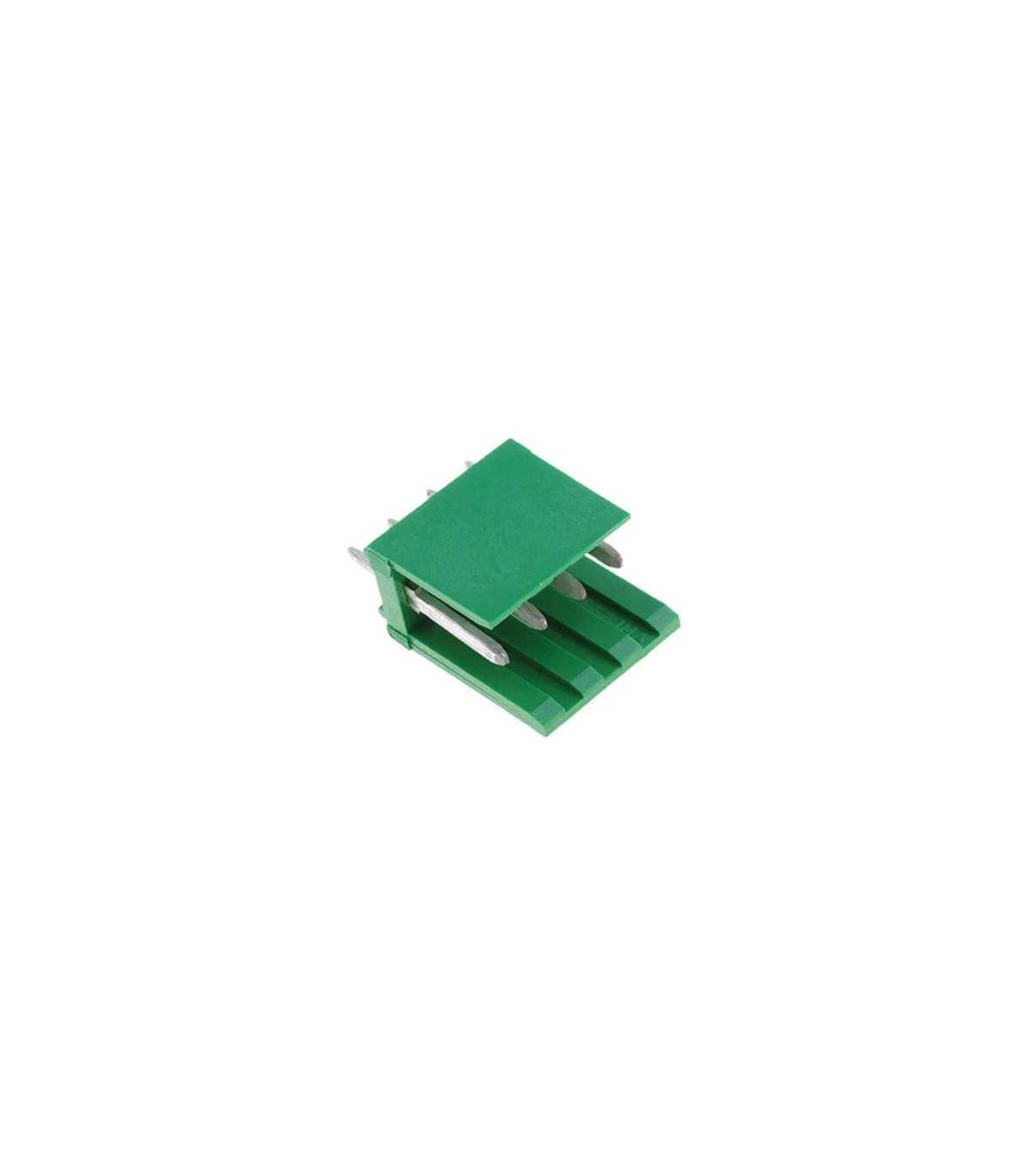

Conector Modu I macho 4 vìas PCB

Product type characteristics
Applies to: printed circuit board
Connector Style: Plug
PCB Mounting Orientation: Vertical
Connector Type: Header
Profile: standard
Product Type: Connector
Gasket: Without
Board Standoff: Without
Cable gland: without
Stabilizers: Without

Configuration features
Number of positions: 4
Number of lines: 1
Selective upload: no
With key: no

electrical characteristics
Dielectric withstanding voltage: 750V

Characteristics of the body
Header type: protected
Post Size (inch): .01

Contact characteristics
Contact base material: brass
Contact type: pin
Contact mating area plating thickness (µin): 15
Contact mating area plating material: tin
Solder tail contact plating material: tin
Contact shape: square
Contact protection: With
Contact protection type: protected

Termination functionality
Termination method on PC board: Through hole
Termination Terminal Plating Material: Tin
Termination pole length (mm): 3.3

Mechanical attack
PCB Mounting Style: Through Hole
Coupling alignment type: polarization
PCB Mount Retention: Without
Coupling Alignment: Con
Panel Mount Retention: Without
Mating Connector Lock: Without

Housing features
Centerline: 3.96 mm [ 0.156 in. ]
Housing material: GF polycarbonate
Housing Color: Green

Dimensions
Coupling Pin Length: 10 mm [0.393 in.]
Protected End Size (inches): .045

Terms of Use
Operating temperature range (°C): -65 – 105

Industry standards
Approved standards: CSA LR7189, UL E28476
UL Flammability Rating: UL 94V-0
