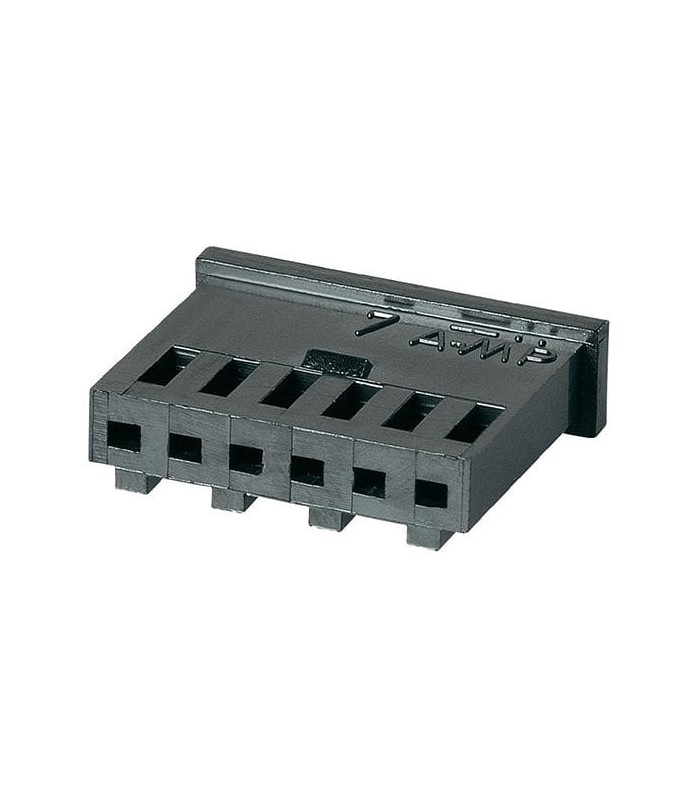

Conector Modu II hambre 6 vìas TE/Connectivity

Product Type Features:
- Connector Product Type: Housing
- Connector & Housing Type: Receptacle
- Connector System: Wire-to-Board
- Connector & Contact Terminates To: Wire & Cable

Configuration Features:
- Number of Positions: 6
- Number of Rows: 1

Contact Features:
- Contact Type: Socket
- Contact Current Rating (Max)(A): 3
- Contact Layout: Inline

Termination Features:
- Termination Method to Wire & Cable : Crimp

Mechanical Attachment:
- Mating Retention Type: Detent Latching
- PCB Mount Retention: Without
- Panel Mount Feature: Without
- Mating Retention: With
- Connector Mounting Type: Cable Mount (Free-Hanging)

Housing Features:
- Housing Material : LCP (Liquid Crystal Polymer)
- Centerline (Pitch): 2.54mm[1 in]
- Housing Color: Black
- Housing Entry Configuration: Both Ends Closed

Dimensions:
- Connector Height : 3.1 mm[12in]
- Row-to-Row Spacing: 2.54mm[1 in]
- Connector Length(mm): 7.1

Usage Conditions:
- Operating Temperature Range: -40 –80°C[-40 – 176°F]

Operation/Application:
- Circuit Application: Signal

Industry Standards:
- UL Flammability Rating: UL 94V-0
- Glow Wire Rating: Standard Part - Not Glow Wire
