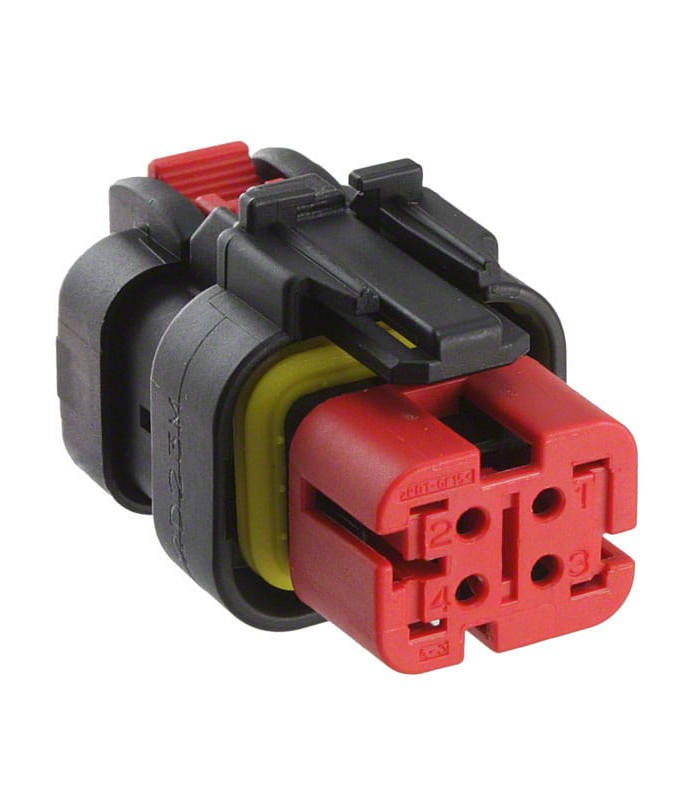

Conector AmpSeal series 16 macho 2x2 vìas

Manufacturer: TE Connectivity
Number of positions: 4 positions
Pitch: 5.3mm
Gender: Male
Red
Fixing hole diameter: 1.5mm
Rated current: 13A
Flammability rating: UL 94 HB
Height: 26.8mm
Housing Material: Polybutylene Terephthalate (PBT)
Ingress protection: IP67
Length: 25.33mm
Material: Plastic
Maximum operating temperature: +125 C
Minimum operating temperature: - 40 C
Mounting Angle: Straight
Number of lines: 2 lines
Rated voltage: 250V DC
Width: 36.7mm
Conductor cross section: 14 AWG to 20 AWG
Unit Weight: 16g
