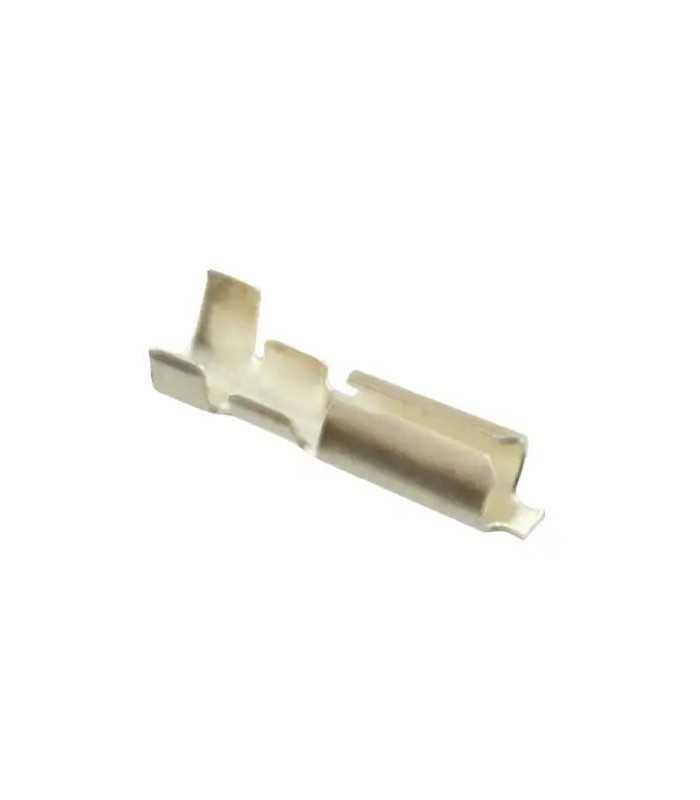

Borne SHUR-PLUG Femelle diamètre 4,01mm pour câble de sect. 18-14AWG

Product Type Features
- Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel
- Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire
- Series: 62734 SHUR-PLUG
- Sealable: No
- Insulated: No
- Support Style: Insulation Support

Configuration Features
- Strip Orientation: End Feed

Body Features
- Crimp Wire Pin, Tab & Ferrule Plating Material: Brass, Silver
- Plating Thickness (µm): 2.5

Contact Features
- Terminal & Splice Type: Receptacle
- Crimp Wire Pin, Tab & Ferrule Terminal Type: Receptacle
- Crimp Wire Pin, Tab & Ferrule Pin Diameter: 3.96 mm [ .156 in ]
- Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight
- Terminal Length: 8.7 mm [ .344 in ]

Mechanical Attachment
- Wire Insulation Support: With

Dimensions
- Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.3 – 4.45 mm [ .13 – .175 in ]
- Accepts Wire Insulation Diameter Range: 3.3 – 4.45 mm [ .13 – .175 in ]
- Wire Size (AWG): 18 – 14
- Wire Size (mm²): .8 – 2
- Wire Size (CMA): 1618 – 4107
- Crimp Wire Pin, Tab & Ferrule Material Thickness: .46 mm [ .018 in ]
- Crimp Wire Pin, Tab & Ferrule Overall Length: 17.53 mm [ .69 in ]
- Strip Length (in): .156
- Bullet Diameter: 4.01mm

Usage Conditions
- Operating Temperature Range: 105 °C [ 221 °F ]

Operation/Application
- Heavy Duty: No
- Connects To: Pin
