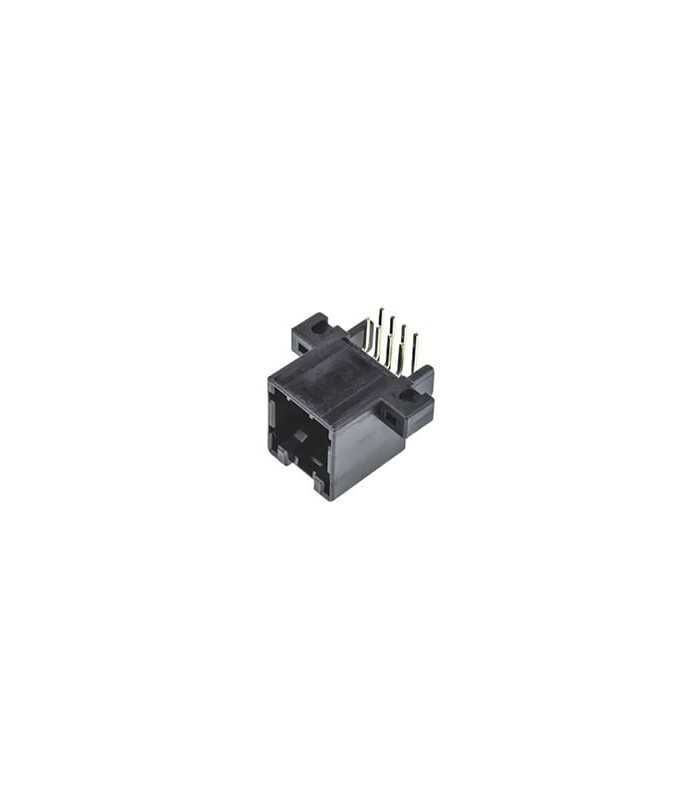

Connecteur Multilock 040 Femelle 8 Voies PCB

Characteristics of the product type
Connector Style: Female Terminal Housing
Connector system: wire to wire
Sealable: No
Hybrid connector: No
Main lock function: integrated into the housing
Row spacing: 5.2 mm [.205 in]

Configuration features
Number of positions: 8
Number of lines: 2

electrical characteristics
Nominal voltage architecture (V): 12
Operating voltage (VDC): 12

Characteristics of the body
Black colour
Cable exit angle: 180 °
Body material: PBT

Contact characteristics
Mating Tab Width: 0.64mm [0.025in]

Mechanical attack
Mounting Feature: No
Terminal position guarantee: No
Polarized: Yes

Housing features
Center line (pitch) 2.5 mm [.098 inch]

Dimensions
Width 18.9 mm [.744 inches]
Height 18.5 mm [.728 inch]
Length 28.1 mm [1.0629 inch]

Terms of use
Operating temperature range: -30 - 105 ° C [-22 - 221 ° F]

Operation / Application
Circuit application: signal

Industry standard
UL flammability classification: UL 94-HB
