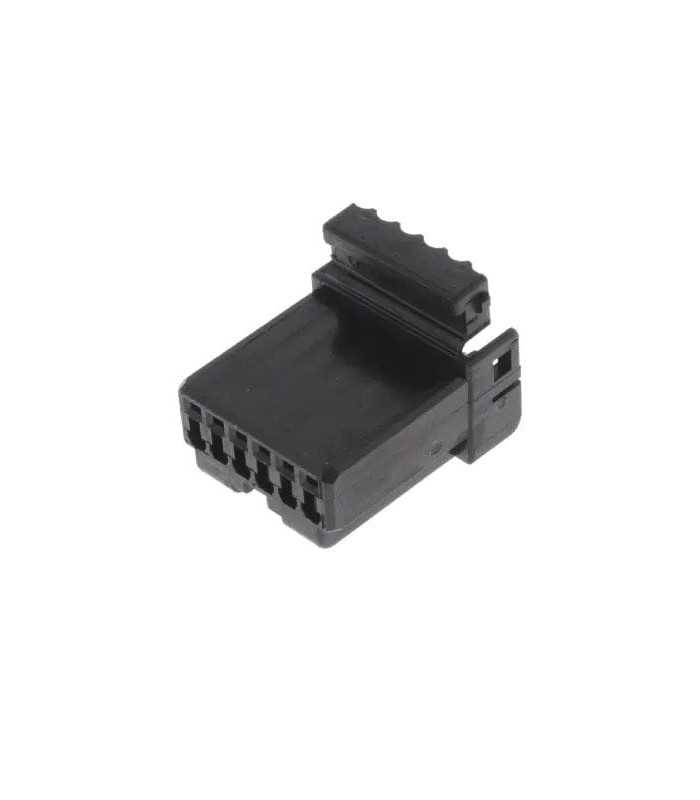

Connecteur Multilock 040 Mâle 6 Voies

Product Type Features
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: No
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Row-to-Row Spacing: 5.2 mm [.205 in]

Configuration Features
Number of Positions: 6
Number of Rows: 1

Electrical Characteristics
Nominal Voltage Architecture (V): 12
Operating Voltage (VDC): 12

Body Features
Color: Black
Cable Exit Angle: 180°
Body Material: PBT

Contact Features
Mating Tab Width: .64 mm [.025 in]

Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes

Housing Features
Centerline (Pitch) 2.5 mm [.098 in]

Dimensions
Width 18.9 mm [.744 in]
Height 18.5 mm [.728 in]
Length 28.1 mm [1.0629 in]

Usage Conditions
Operating Temperature Range: -30 – 105°C[-22 – 221°F]

Operation/Application
Circuit Application: Signal

Industry Standards
UL Flammability Rating: UL 94-HB
