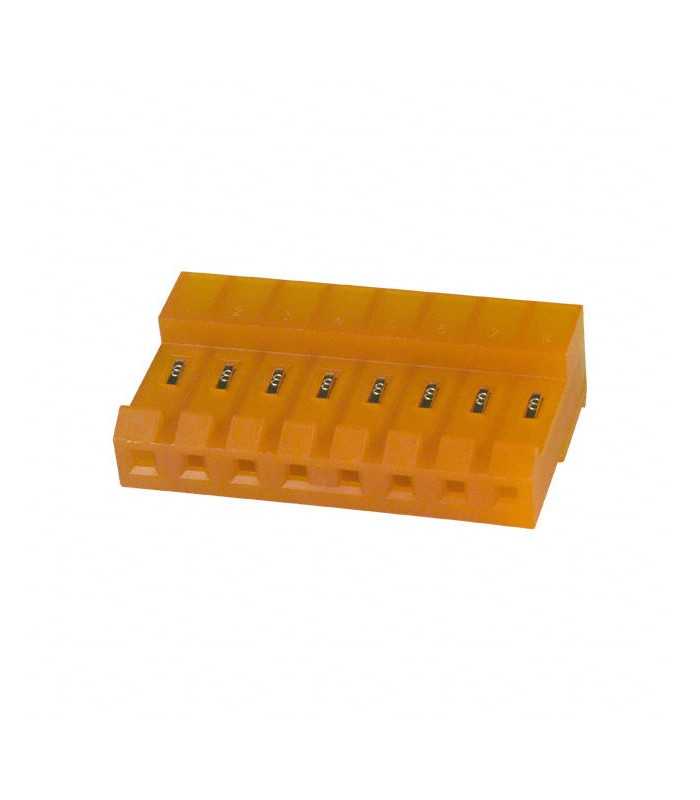

Connecteur MTA 156 Femelle 8 Voies Orange pour câble AWG 18

Product Features
Product Type: Connector Assembly
Housing Type: Receptacle
Contact Type: Socket
Number of Positions: 8
Centerline: 3.96mm [.156in]
Number of Power Positions: 8
Number of Rows: 1
Contact Layout: Inline

Electrical Characteristics
Contact Current Rating(A): 7
Operating Voltage(VAC): 600

Contact Features
Contact Retention: With
Contact Termination Area Plating Material: Tin
Contact Mating Area Plating Material: Tin
Contact Mating Area Plating Thickness: 80µm [2.03µin]
Contact Termination Area Plating Thickness: 2.03 – 5.08µm[80 – 200µin]
Contact Base Material: Copper Alloy
Contact Retention Type: Locking Lance
Contact Mating Area Plating Material Finish: Matte
Underplate Material Thickness: 30µm [.762µin]
Underplate Material: Nickel

Termination Features
Wire/Cable Size(AWG): 18
Wire/Cable Size(mm²): .8 – .9
Termination Method to Wire/Cable: Insulation Displacement Crimp (IDC)
Wire Type: Stranded
Wire/Cable Type: Discrete Wire

Mechanical Attachment
Strain Relief: With
Panel Mount Retention? Without
Mating Alignment: Without
Mating Retention Type: Locking Ramp
PCB Mount Alignment: Without
PCB Mount Retention: Without
Mating Retention: With

Housing Features
UL Flammability Rating: UL 94V-2
Housing Color: Orange
Housing Material: Nylon
Wire/Cable Installation Type: Closed End
Cable Exit Angle: 90°
Housing Style: Standard Profile

Dimensions
Length: 31.7mm [1.248in]
Height: 9.02mm [.355in]
Accepts Wire Insulation Diameter Range: 2.41mm [.095in]

Usage Conditions
Sealed Condition: Not Sealed

Operation/Application
Connector System: Wire-to-Board, Wire-to-Post
Applies To: Printed Circuit Board, Wire/Cable
Operating Temperature: -55 – 105°C [-67 – 221°F]
Circuit Application: Power

Industry Standards
Glow Wire Rating: Standard Part - Not Glow Wire
CSA Rating: Certified
CSA File Number: LR7189
UL Rating: Recognized
Agency/Standard: CSA, UL
Agency/Standard Number: E28476
