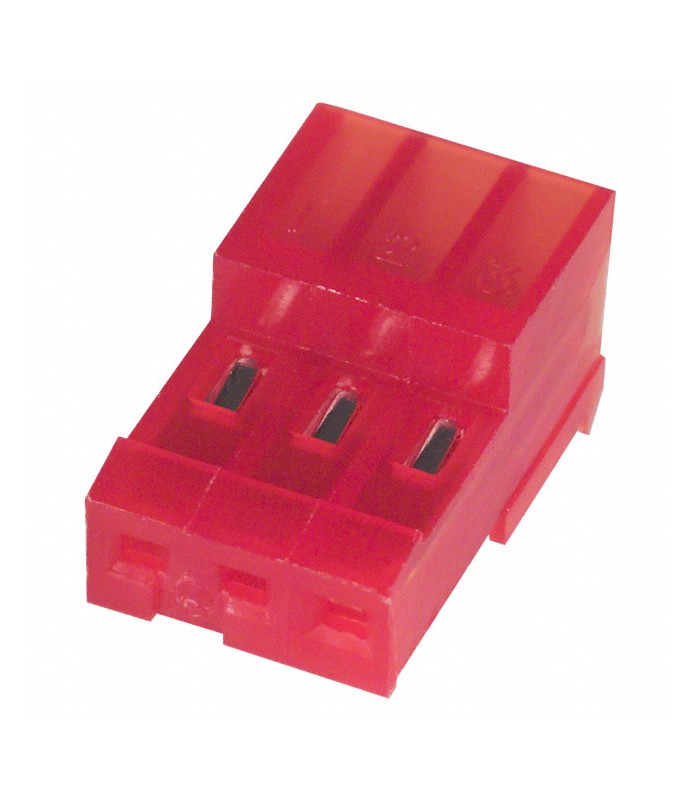

Connecteur MTA 100 Femelle 3 Voies Rouge pour câble AWG 22

Product Type Features
Wire/Cable Type: Discrete Wire, Stranded
Product Type: Connector
Applies To: Wire/Cable
Connector Type: Connector Assembly
Sealed: No
Connector Style: Receptacle
Connector Design: Closed End
Connector System: Wire-to-Post
Strain Relief: With
Number of Positions: 3
Number of Rows: 1
Backwall/Post Interruptions: Without

Electrical Characteristics
Operating Voltage (VAC): 250

Body Features
Cable Exit Angle: 90°

Contact Features
Contact Mating Area Plating Material: Tin
Contact Mating Area Plating Material Finish: Matte
Contact Mating Area Plating Thickness: 2.03µm [ 80µin ]
Contact Base Material: Copper Alloy
Contact Layout: Inline
Contact Termination Area Plating Material: Tin
Underplate Material: Nickel
Contact Termination Area Plating Thickness: 2.03 – 5.08µm [ 80 – 200µin ]
Contact Type: Socket
Underplate Material Thickness: .762µm, 30µin
Contact Termination Area Plating Material Finish: Matte
Contact Current Rating (A): 5

Termination Features
Termination Method to Wire/Cable: IDC

Mechanical Attachment
PCB Mount Alignment: Without
Mating Retention: With
PCB Mount Retention: Without
Contact Retention Type: Locking Lance
Panel Mount Retention: Without
Contact Retention: With
Mating Alignment: Without
Mating Retention Type: Locking Ramp

Housing Features
Centerline: 2.54mm [ .1in ]
Housing Color: Red
Housing Style: Standard
Housing Material: Nylon

Dimensions
Height: 6.99mm [ .275in ]
Wire/Cable Size (AWG): 22
Insulation Diameter: 1.52 mm [ .06in ]
Length: 7.62mm [ .3in ]
Wire/Cable Size (mm²): .3 – .4

Usage Conditions
Operating Temperature Range: -55 – 105°C [ -67 – 221°F ]

Operation/Application
For Use With: MTA .100 Headers & MTA .100 IDC Posted Connectors
Pick and Place Cover: Without

Industry Standards
Agency/Standard: CSA, UL
CSA Rating: Certified
UL Rating: Recognized
UL File Number: E28476
CSA File Number: LR7189
UL Flammability Rating: UL 94V-2
