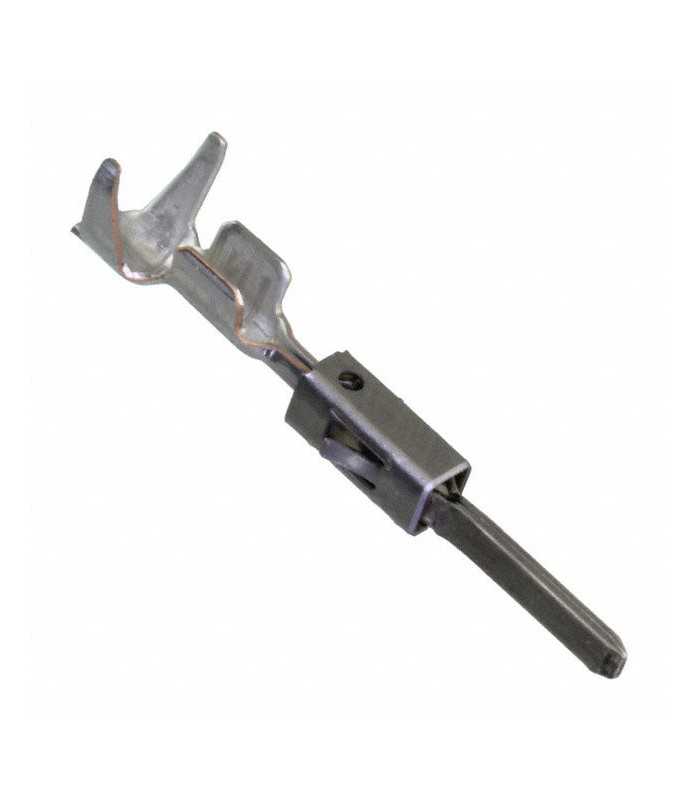

Borne MCP 1,5 mâle

Product Type Features
- Sealable: Yes
- Primary Locking Feature: Locking Lance
- Wire Type: Copper
- Receptacle Style: 180°

Body Features
- Seal Type: Single Wire Seal (SWS)

Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating (A): 10
- Terminal & Splice Type: Tab
- Mating Tab Width: 1.6 mm [ .063 in ]
- Mating Tab Thickness: .6 mm [ .024 in ]
- Interface Plating: Tin (Sn)
- Contact Termination Area Plating Material: Tin (Sn)

Termination Features
- Termination Method: Crimp

Dimensions
- Wire Size (AWG): 20 – 18
- Wire Size (mm²): .5 – 1
- Wire Insulation Diameter: 1.4 – 2.1 mm [ .055 – .083 in ]

Usage Conditions
- Operating Temperature Range: -40 – 130 °C [ -40 – 266 °F ]

Industry Standards
- Agency/Standard: DIN 72 551 Part 5 and 6

Other
- Terminal Transmits: 0 – 24 A (Low Power)
