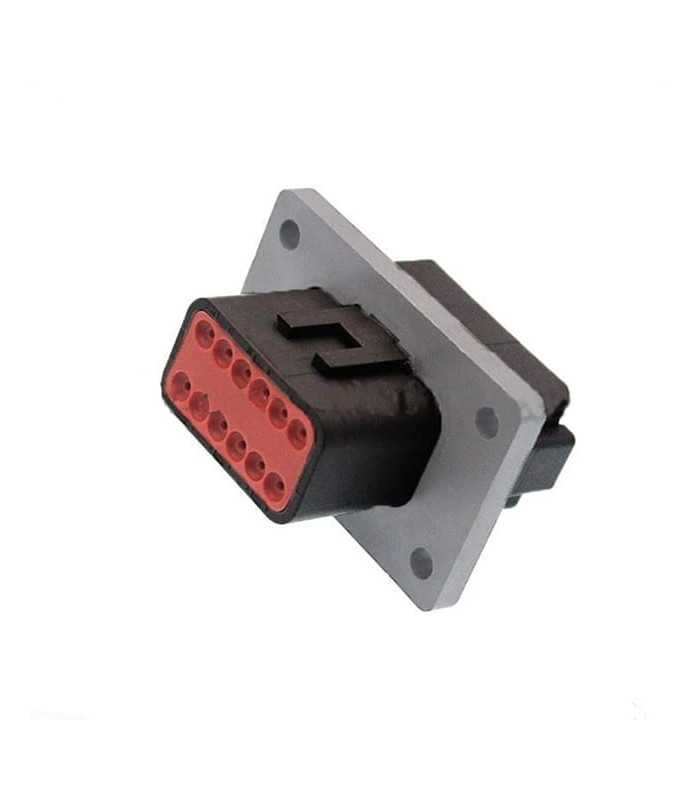

Connecteur Series DT Female 12 Voies BL06

Product type characteristics

Connector shape : Rectangular
Type of connector and housing : housing for male terminals
Number of positions : 12
Number of lines : 2

Operating voltage (VAC): 250
Operating voltage (VDC): 250
Rated voltage architecture (V): 12, 24, 48
Body features

Cable exit angle : 180°
Main color of the product : black
Connector and coding code : A
contact characteristics

Contact type : Pin
Contact size : size 16
Coupling Pin Diameter : 1.59 mm [ .063 in ]
Rated contact current (max) (A): 13
Mechanical attack

Coupling alignment : Con
Coupling alignment type : with keyway
Grommet : add for accessory
Connector Mounting Type : Panel Mount
Terminal Position Assurance : Yes
Housing features

Case material : PA GF
Centerline (pitch) : 9.12 mm [ .359 in ]
Dimensions

Accepts insulation diameter range : 1.35 – 3.05 mm [ .053 – .12 in ]
Row to Row Spacing : 4.45 mm [ .175 in ]
Product length : 50.62 mm [ 1.993 in ]
Product Width : 55.12 mm [ 2.17 in ]
Connector Height : 35.56 mm [ 1.4 in ]

Terms of use:
Operating temperature (max) : 125 °C [ 257 °F ]
Operating temperature range : -55 – 125 °C [ -67 – 257 °F ]

Circuit application : power supply and signal

Industry Standards:
UL flammability rating : 12mm flame test according to UL-94 standard
Degree of protection : IP68, IP6K9K
