2,87 €
(tax excl.)
3,50 €
TTC
Code ErreBi: 24441Vendu au mètre

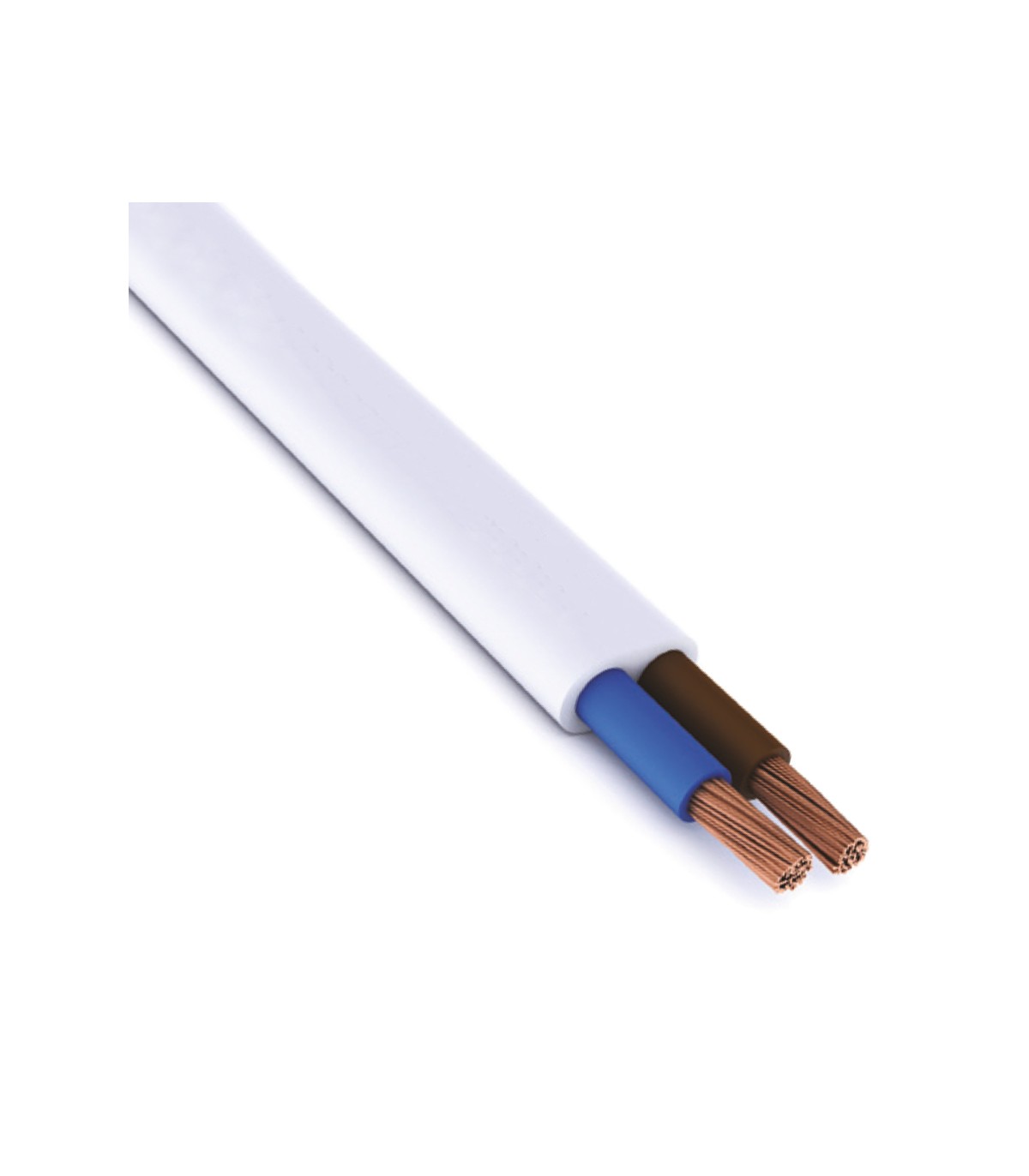

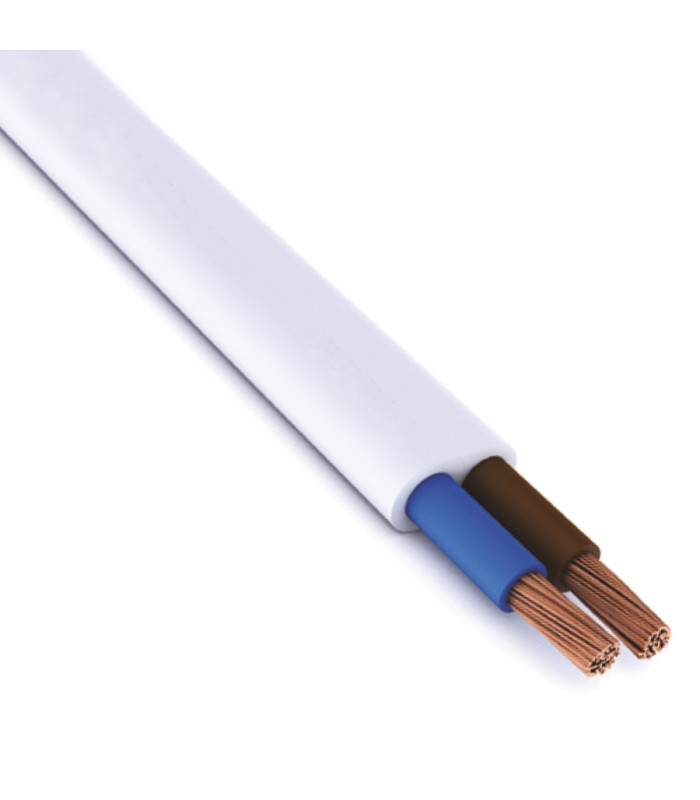

Câble électrique multiconducteur PVC H03VVH2-F 2X0,75 gaine extérieure plate blanche
Code ErreBi: 20260
Vendu au mètre
Lire la suiteShow lessVendu au mètre
1,88 €
(tax excl.)
2,29 €
TTC
Condition
Neuf
Référence:
RBCVH03VVH2-F2X0.75PTBNC1
Marque:
Ajouter à la liste de souhaits
PVC multicore cables, designed for the automotive industry, offer high resistance to mineral oils, hydrocarbons (such as gasoline and petrol), and typical engine compartment fluids. They are ideal for applications requiring reliability, flexibility, and good chemical resistance even under intermittent thermal conditions.
APPLICATIONS
Suitable for light or extra-light duty, i.e., when the risk
of mechanical stress or damage is low or negligible,
such as in the normal use of lightweight portable appliances
used in homes, offices, and shops (household hair dryers,
radios, table lamps, and small office machines).
Technical Specifications
Short Circuit Temperature: +160°C
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: 70°C
Operating Voltage: 300 V
Test Voltage: 2000 V
Har: HAR Certificate No. A0643
Flame Resistance: IEC 60332-1-2
Suitable for indoor installation
Suitable for fixed installation
Outer Diameter: 5.30 mm
Number of Conductors: 2
Cable section: 0.75 mm²
Outer Sheath Color: White
Inner Core Colors: Blue and Brown
Lire la suiteShow less
APPLICATIONS
Suitable for light or extra-light duty, i.e., when the risk
of mechanical stress or damage is low or negligible,
such as in the normal use of lightweight portable appliances
used in homes, offices, and shops (household hair dryers,
radios, table lamps, and small office machines).
Technical Specifications
Short Circuit Temperature: +160°C
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: 70°C
Operating Voltage: 300 V
Test Voltage: 2000 V
Har: HAR Certificate No. A0643
Flame Resistance: IEC 60332-1-2
Suitable for indoor installation
Suitable for fixed installation
Outer Diameter: 5.30 mm
Number of Conductors: 2
Cable section: 0.75 mm²
Outer Sheath Color: White
Inner Core Colors: Blue and Brown
RBCVH03VVH2-F2X0.75PTBNC1
Data sheet
- Type de produit
- Câble H05VVH2-F
- Couleur
- Blanc
- Diamètre externe
- 2.08 mm
- Voltage
- 300V
- Température de fonctionnement min.
- -20°C
- Température de fonctionnement max.
- +70°C
- Matériau d'isolation
- PVC
- Conducteur (matériel)
- Cuivre rouge
- Section de câble mmq
- 0.75 mmq
- Blindage
- Non
- Test de tension
- 2000V
- Résistance à la flamme
- CEI 60332-1-2
- Type d'emploi
- Secteur Automobile
- Nombre de conducteurs
- 2
- Matériau de la gaine externe
- PVC
- Minimale commande
- 2
- Unité de mesure
- mètres
- Couleur d'anime
- bleu/marron
