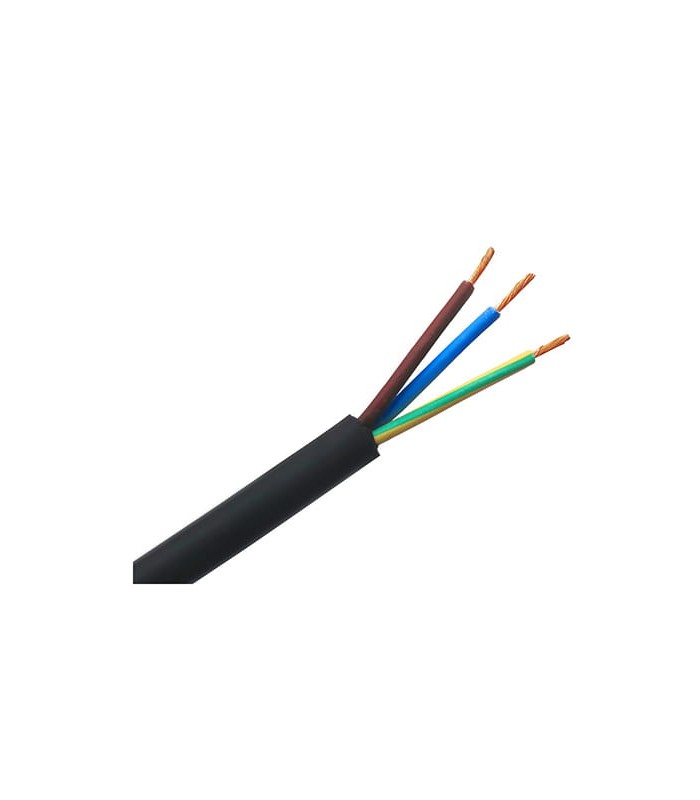

Câble Néoprène H05RN-F 3G1

APPLICATIONS

Suitable for installations in domestic premises, kitchens and offices for applications in ordinary service and for powering appliances in which the cables are subject to low mechanical stress (vacuum cleaners, kitchen appliances, portable household tools, portable inspection lamps). Permanent use outdoors and in the presence of water is permitted.

Rated voltage: 300/500 VAC
Short circuit temperature: 200°C
Use temperature: -25/+60°C (fixed installation)
Test voltage: 2000 VAC
Suitable for outdoor use
Suitable for mobile installation
Flame resistance: IEC 60332-1-2
Conductor material: copper
Nominal conductor cross-section: 1 mmq
Number of conductors: 3
Conductor insulation material: rubber
Outer sheath material: neoprene
Outer sheath color: black
Outer diameter: 9.07 mm
Nominal voltage: 450 - 750 V
