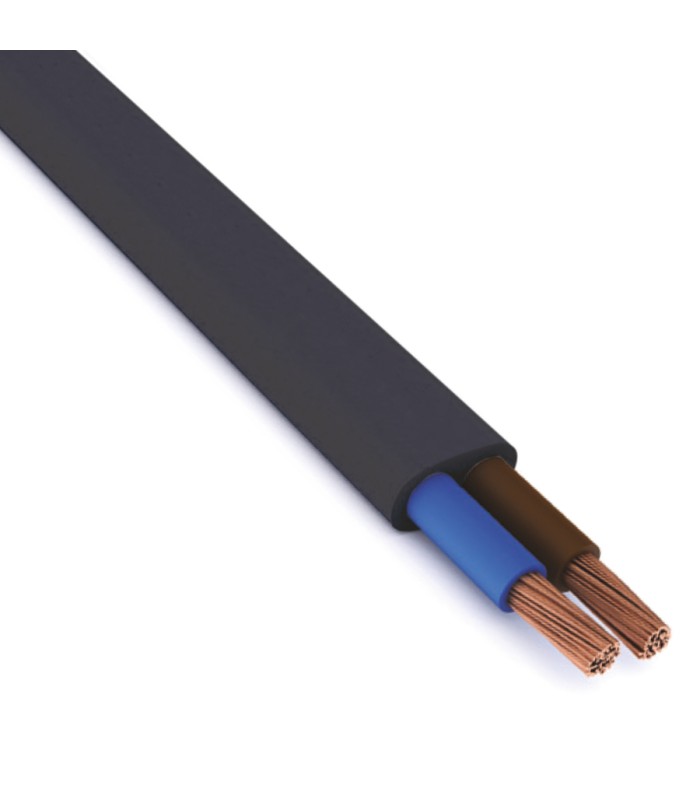

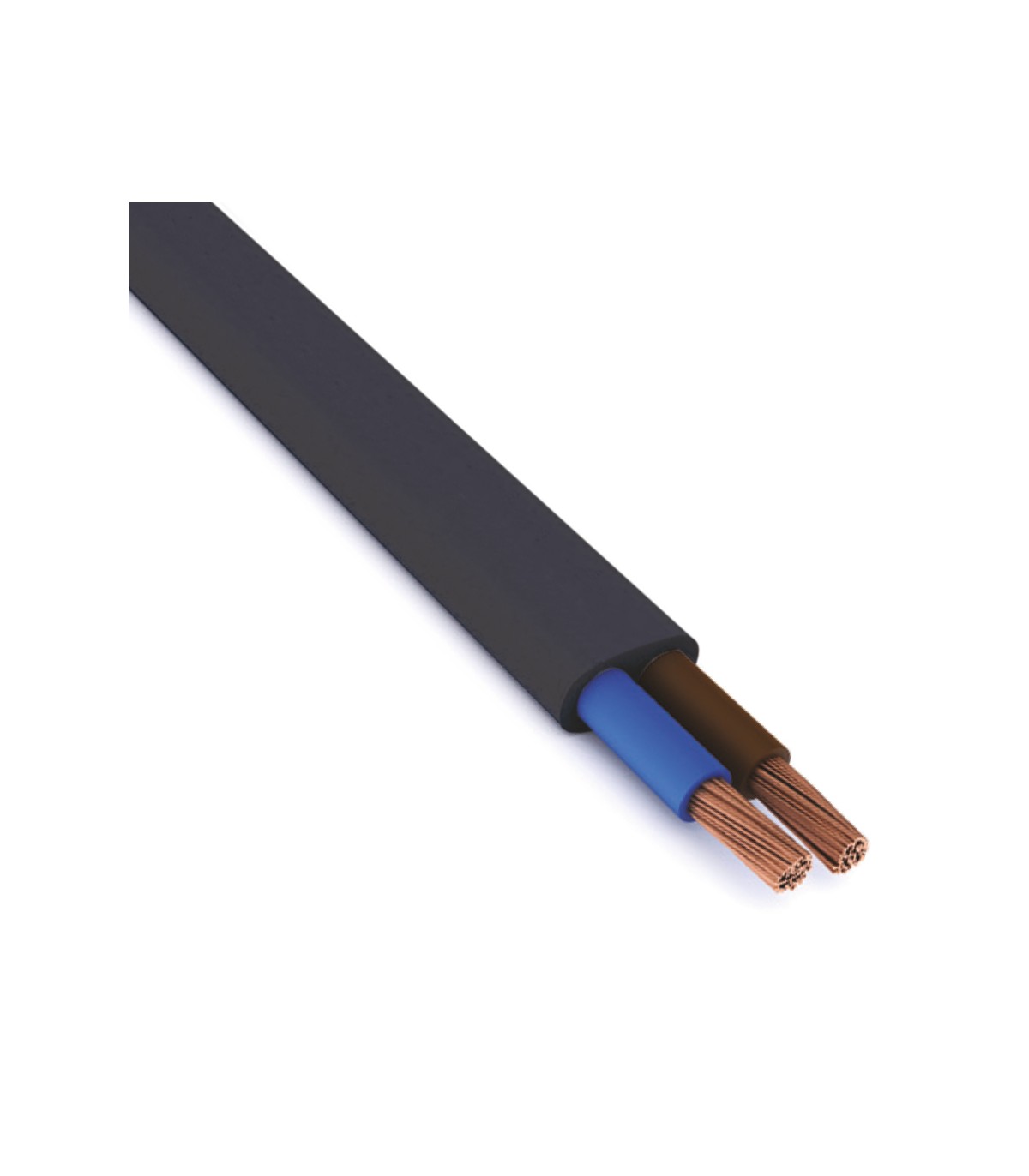

Câble électrique multiconducteur PVC H03VVH2-F plat 2X0,75 gaine extérieure noire

PVC multicore cables, designed for the automotive industry, offer high resistance to mineral oils, hydrocarbons (such as gasoline and petrol), and typical engine compartment fluids. They are ideal for applications requiring reliability, flexibility, and good chemical resistance even under intermittent thermal conditions.

APPLICATIONS

Suitable for light or extra-light duty, i.e., when the risk
of mechanical stress or damage is low or negligible,
such as in the normal use of lightweight portable appliances
used in homes, offices, and shops (household hair dryers,
radios, table lamps, and small office machines).

Technical Specifications

Short Circuit Temperature: +160°C
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: 70°C
Operating Voltage: 300 V
Test Voltage: 2000 V
Har: HAR Certificate No. A0643
Flame Resistance: IEC 60332-1-2
Suitable for indoor installation
Suitable for fixed installation
Outer Diameter: 5.30 mm
Number of Conductors: 2
Cable Cross-Section Area: 0.75 mm²
Outer Sheath Color: Black
Inner Core Colors: Blue and Brown
