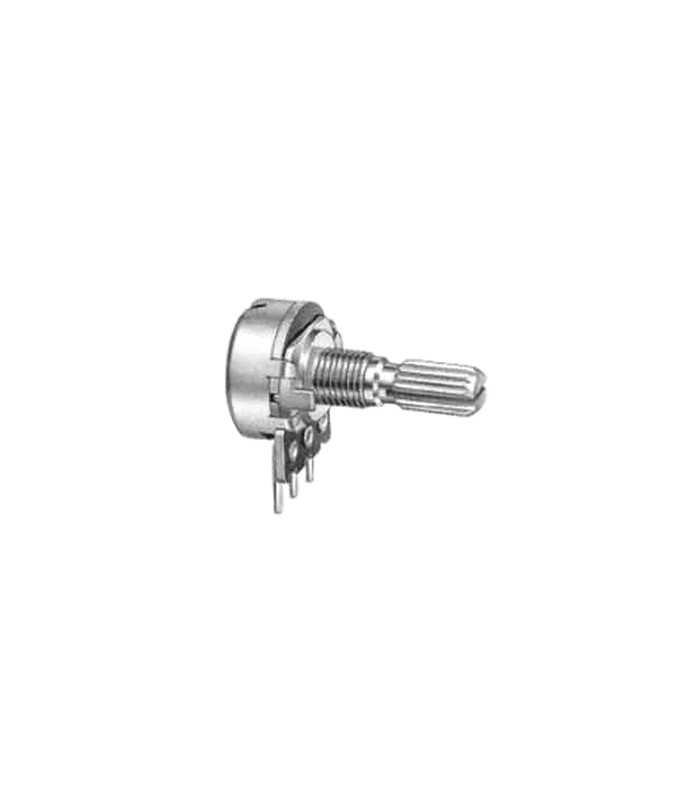

Potenciómetro Giratorio Lineal 5K ohm

FEATURES
Shaft: metal Ø6mm
Standard resistance values: 5KO5
Tollerance: ±20%
Rotation angle: 300° ±5°
Rotation torque: 20÷200 gf*cm
Shaft stop strength: > 6kgf*cm/min
Rated wattage: 0.125W (taper B), 0.06W (other tapers)
Rated voltage max.: 200V AC (taper B), 150V AC (other tapers)
Click position: center, 11, 21, 41 (on demand)
Click torque: 100÷400 gf*cm
Rotation life (cycles): 15000
Tracking error: =3dB a [-40÷0]dB (volume), =2dB al 50% (tone-balance)
Insulation resistance: > 100MO at 500V DC
Withstand voltage: 500V AC for 1 minute
