Orange Pi 5 con 4 GB de RAM
Código ErreBi: 60620
Productor: Orange
Memoria (SDRAM): 4GB DDR4
Lee masShow lessProductor: Orange
Memoria (SDRAM): 4GB DDR4
173,32 €
(tax excl.)
211,45 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBOP54GB
Marca:
A lista de deseos
Orange Pi 5 uses Rockchip RK3588S new generation 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with 4GB/8GB/16GB (LPDDR4/4x), and up to 8K display processing capability.
Orange Pi 5 provides abundant interfaces, including HDMI output, GPIO interface, M.2 PCIe2.0, Type-C, Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc.; It can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Orange Pi 5 supports Orange Pi OS(Droid), the official operating system developed by Orange Pi, as well as Android12 and Debian11.
Hardware specification
SoC:
Rockchip RK3588S (8nm LP process)
CPU:
- 8-core 64-bit processor
- Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU
- Arm Mali-G610 MP4 “Odin” GPU
- Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
- 3D graphics engine and 2D graphics engine
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU: RK806-1
RAM: 4GB/8GB/16GB (LPDDR4/4x)
Memory:
- QSPI Nor FLASH 16MB
- MicroSD (TF) Card Slot
- M.2 M-KEY Socket
USB:
- USB3.0 × 1
- USB2.0 × 2
- Type-C (USB3.1) ×1
Video Output:
- HDMI2.1, up to 8K @60Hz
- DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
- 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera:
- MIPI CSI 4Lane
- 2 * MIPI D-PHY RX 4Lane
Audio: CODEC: ES8388
- 3.5mm headphone jack audio input/output
- Input: Onboard MIC
- HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet
Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot:
- Support PCIe NVMe SSD
- Support custom PCIe Wi-Fi6+BT5.0 module
Button:
- 1×MaskROM key
- 1×Recovery key
- 1×On/Off key
Power Source: Support Type-C power supply, 5V @ 4A
LED:
- Power indicator: red
- Status indicator: green
Debugging: 3 Pin debug serial port (UART)
Supported OS: Orangepi OS(Droid)?Orangepi OS(Arch)?Ubuntu?Debian?Android12

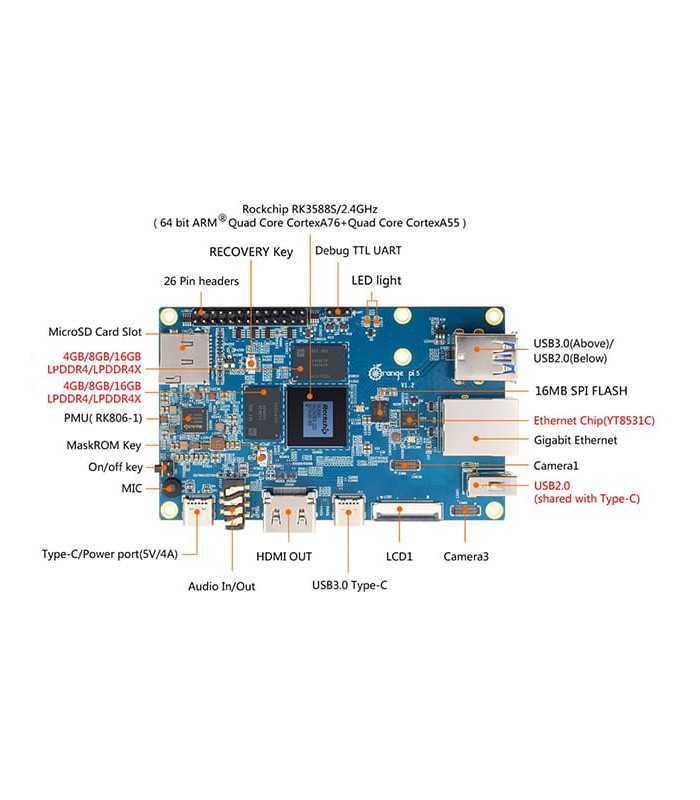

Interface definition:
Product size: 62 mm × 100mm
Weight: 46g
Rockchip RK3588S (8nm LP process)
CPU:
- 8-core 64-bit processor
- Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU
- Arm Mali-G610 MP4 “Odin” GPU
- Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
- 3D graphics engine and 2D graphics engine
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU: RK806-1
RAM: 4GB/8GB/16GB (LPDDR4/4x)
Memory:
- QSPI Nor FLASH 16MB
- MicroSD (TF) Card Slot
- M.2 M-KEY Socket
USB:
- USB3.0 × 1
- USB2.0 × 2
- Type-C (USB3.1) ×1
Video Output:
- HDMI2.1, up to 8K @60Hz
- DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
- 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera:
- MIPI CSI 4Lane
- 2 * MIPI D-PHY RX 4Lane
Audio: CODEC: ES8388
- 3.5mm headphone jack audio input/output
- Input: Onboard MIC
- HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet
Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot:
- Support PCIe NVMe SSD
- Support custom PCIe Wi-Fi6+BT5.0 module
Button:
- 1×MaskROM key
- 1×Recovery key
- 1×On/Off key
Power Source: Support Type-C power supply, 5V @ 4A
LED:
- Power indicator: red
- Status indicator: green
Debugging: 3 Pin debug serial port (UART)
Supported OS: Orangepi OS(Droid)?Orangepi OS(Arch)?Ubuntu?Debian?Android12
Interface definition:
Product size: 62 mm × 100mm
Weight: 46g
