Orange PI 3 LTS con 2gb de ram y 8gb de almacenamiento
Código ErreBi: 60635
Productor: Orange
Memoria (RAM): 2gb LPDDR4
Almacenamiento: 8gb EMMC
Orange Pi 3 LTS es una computadora de placa única de código abierto con WiFi inalámbrico de doble banda y Bluetooth 5.0. Es muy compacta con una dimensión de 56X85 mm.
Lee masShow lessProductor: Orange
Memoria (RAM): 2gb LPDDR4
Almacenamiento: 8gb EMMC
Orange Pi 3 LTS es una computadora de placa única de código abierto con WiFi inalámbrico de doble banda y Bluetooth 5.0. Es muy compacta con una dimensión de 56X85 mm.
80,94 €
(tax excl.)
98,75 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBOP3LTS2-8GB
Marca:
A lista de deseos

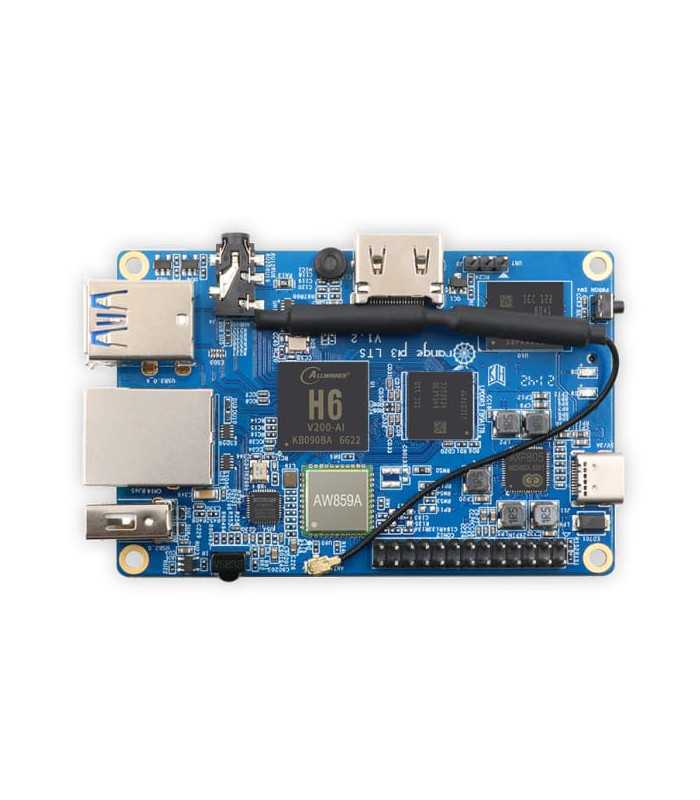

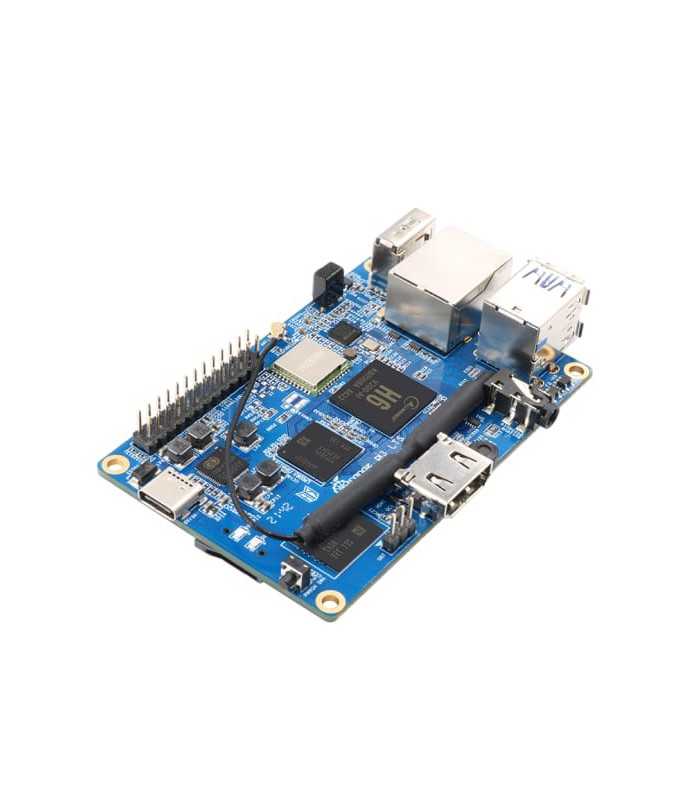

Orange Pi 3 LTS uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9,Ubuntu,Debian. Orange Pi 3 LTS offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0,etc. It is powered through Type-C. It is a good choice for applications that need strong networking perfomance.
Orange Pi 3 LTS is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

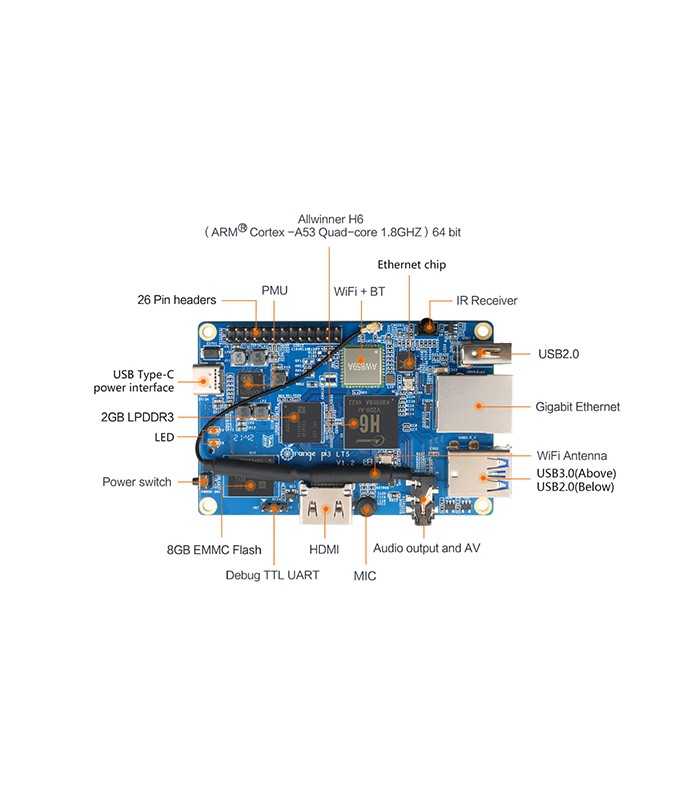

Hardware specification
CPU:
- Allwinner H6
- Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor
GPU:
-High-performance multi-core GPU Mali T720
- OpenGL ES3.1/3.0/2.0/1.1
- Microsoft DirectX 11 FL9_3
- ASTC(Adaptive Scalable Texture Compression)
- Floating point operation greater than 70 GFLOPS
Power management chip: AXP805
RAM: 2GB LPDDR3 (shared with GPU)
Onboard Storage:
- Micro SD card slot
- 8GB EMMC Flash
Onboard Network: Support 10/100M/1000M Ethernet (YT8531C Chip)
Onboard WiFi+Bluetooth:
- AW859A Chip
- Support IEEE 802.11 a/b/g/n/ac
- Support BT5.0
Video Output:
- HDMI 2.0a
- TV CVBS Output
Audio output:
- HDMI Output
- 3.5mm Audio Port
Power Source: 5V3A Type-C
USB: 1*USB 3.0 HOST,?2*USB 2.0 HOST
Low-level peripherals: 26pin connector with1*I2C, 1*SPI, 1*UART &Multiple GPIO Ports
Debug serial port: UART-TX?UART-RX & GND
Button: Power Button (SW4)
LED: Power LED& Status LED
IR Receiver: Support IR Remote Control
Supported OS: Android 9.0?Ubuntu?Debian
Dimension: 56mm*85mm
- Allwinner H6
- Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor
GPU:
-High-performance multi-core GPU Mali T720
- OpenGL ES3.1/3.0/2.0/1.1
- Microsoft DirectX 11 FL9_3
- ASTC(Adaptive Scalable Texture Compression)
- Floating point operation greater than 70 GFLOPS
Power management chip: AXP805
RAM: 2GB LPDDR3 (shared with GPU)
Onboard Storage:
- Micro SD card slot
- 8GB EMMC Flash
Onboard Network: Support 10/100M/1000M Ethernet (YT8531C Chip)
Onboard WiFi+Bluetooth:
- AW859A Chip
- Support IEEE 802.11 a/b/g/n/ac
- Support BT5.0
Video Output:
- HDMI 2.0a
- TV CVBS Output
Audio output:
- HDMI Output
- 3.5mm Audio Port
Power Source: 5V3A Type-C
USB: 1*USB 3.0 HOST,?2*USB 2.0 HOST
Low-level peripherals: 26pin connector with1*I2C, 1*SPI, 1*UART &Multiple GPIO Ports
Debug serial port: UART-TX?UART-RX & GND
Button: Power Button (SW4)
LED: Power LED& Status LED
IR Receiver: Support IR Remote Control
Supported OS: Android 9.0?Ubuntu?Debian
Dimension: 56mm*85mm
| Orange Pi 3 VS Orange Pi 3 LTS | ||
| Model | Orange Pi 3 | Orange Pi 3 LTS |
| Hardware feature | ||
| SOC | Allwinner H6 64bit | Allwinner H6 64bit |
| CPU architecture | Cortex™-A53 | Cortex™-A53 |
| CPU frequency | 1.8GHz | 1.8GHz |
| Onboard Storage | MicrosD card 8GB EMMC Flash/EMMC(Default Empty) | MicrosD card 8GB EMMC Flash |
| Core number | 4 | 4 |
| Memory bus | LPDDR3 | LPDDR3 |
| Memory | 1GB/2GB | 2GB |
| WiFi+BT5.0 | AP6256 | AW859A |
| network | 10M/100M/1000M Ethernet | 10M/100M/1000M Ethernet |
| USB | 1*USB2.0+4*USB3.0 | 2*USB2.0+1*USB3.0 |
| PCB size | 60x93.5mm | 56x85mm |
| Power interface | DC input,MicroUSB (OTG) | 5V3A Type-C |
| PMU | Yes | Yes |
| PCIE | Yes | - |
| Software features | ||
| OS | Android7.0,Ubuntu,Debian | Android9.0, Ubuntu,Debian |
| OrangePi 3 VS OrangePi 3 LTS - Dimension | ||
