Pinza manual Serie SN rango 0,08-0,5 / 0,25 / 0,5 / 1,0 mm2 (28-18 AWG)

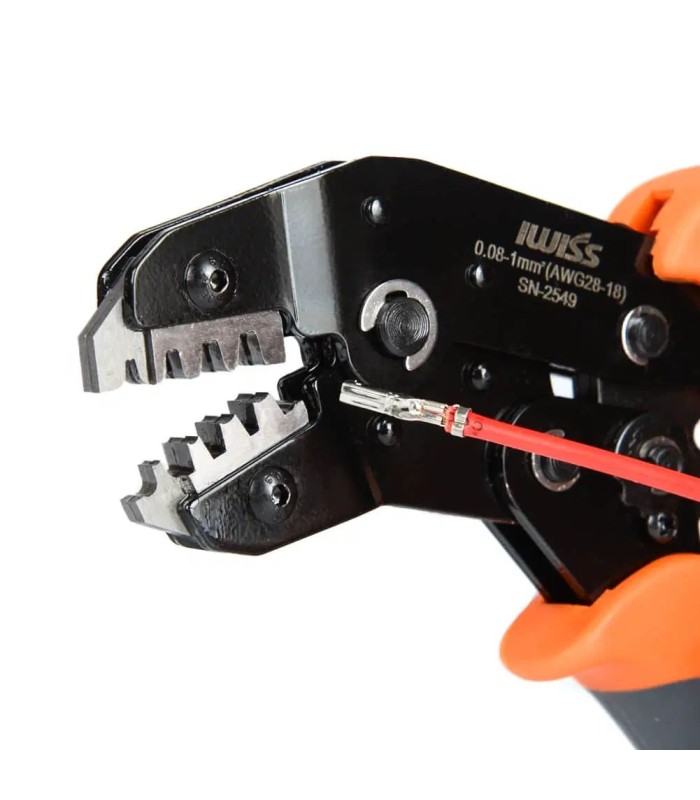

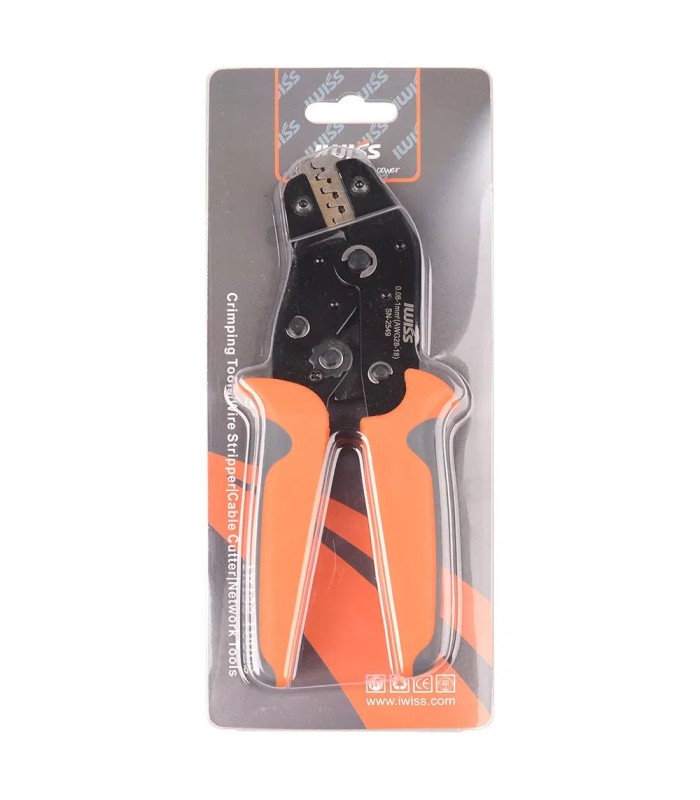

SN-2549 Cable Crimping Tool:

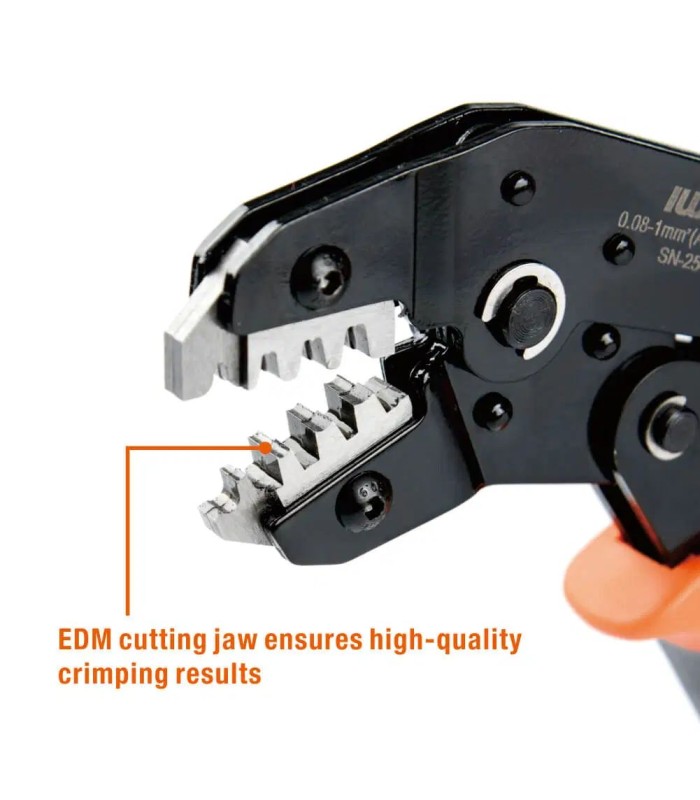

- Wire EDM Cutting jaws with perfect polishing.
- Designed according to human factors engineering, it can save 50% energy when crimping.

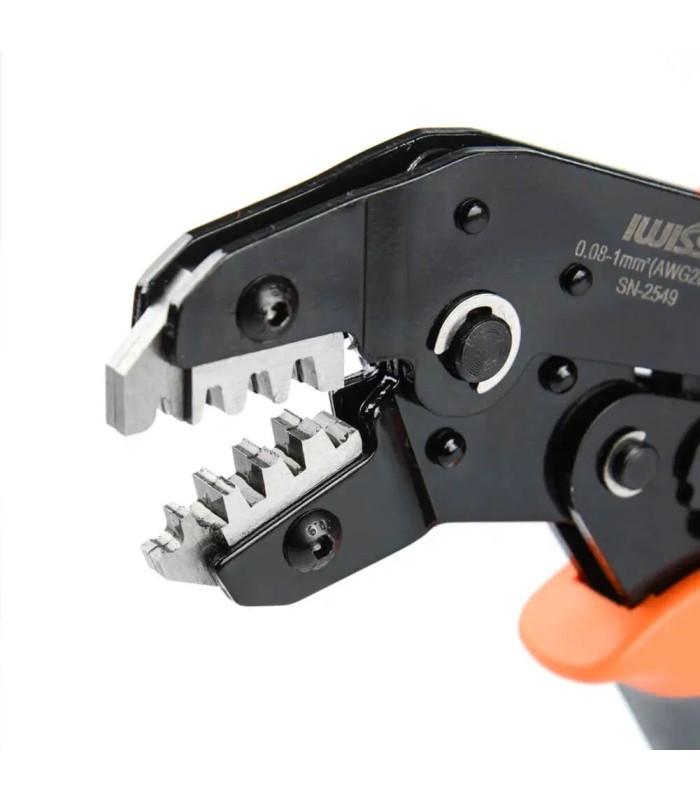

- Precise crimp die sets and integral lock with auto release mechanism ensure high quality crimp effect after repeated crimping.
- Accurate adjustment before ex-factory delivery.

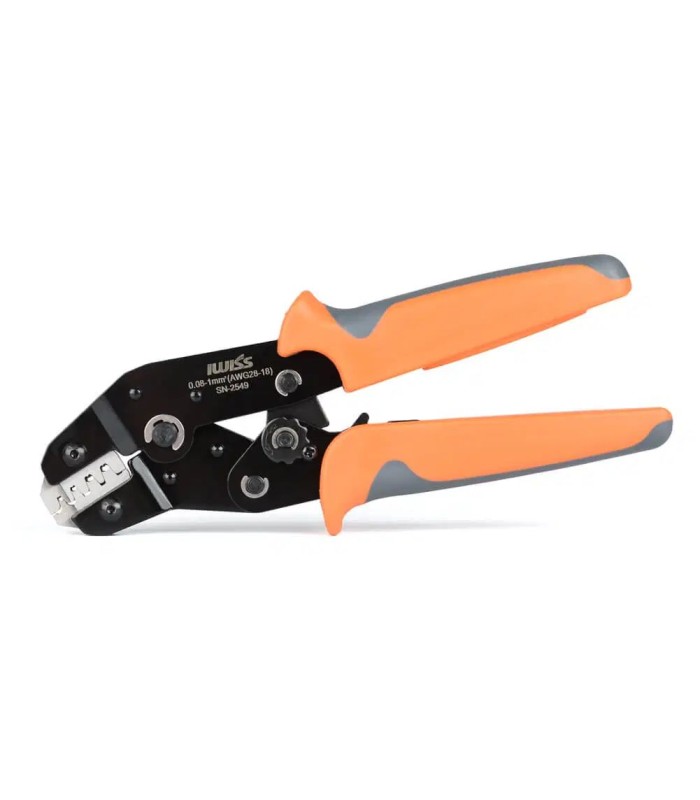

- Thanks to the best grip position of the handle, the light and compact structure and the design of the handle guarantee a perfect crimping effect.

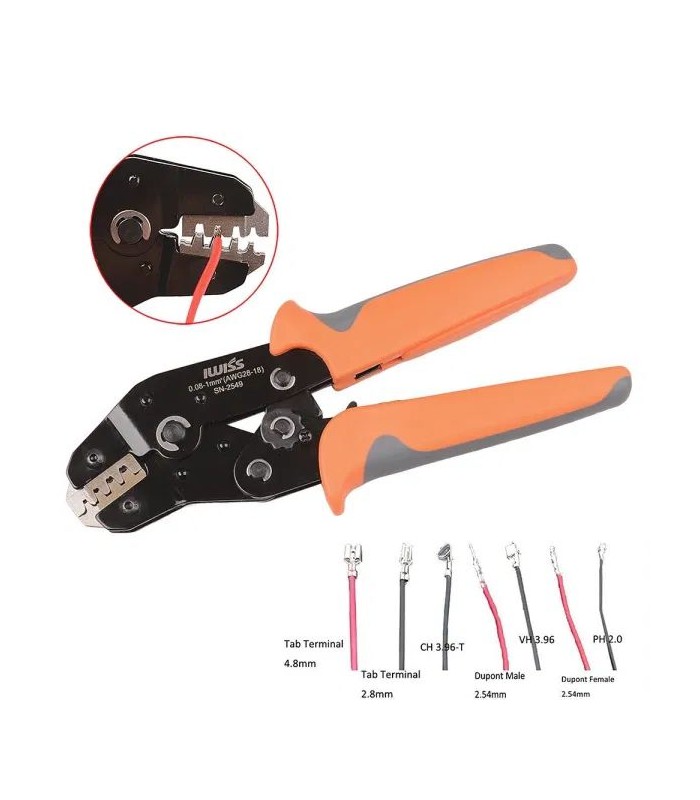

- Compatible with PH2.0 / XH2.54 / Dupont2.54 / 2.8 / 3.0 / 3.96 / 4.8 / KF2510 / JST terminal.
- Length: 190mm / 7.5in
- Weight: 0.37kg / 0.85lbs

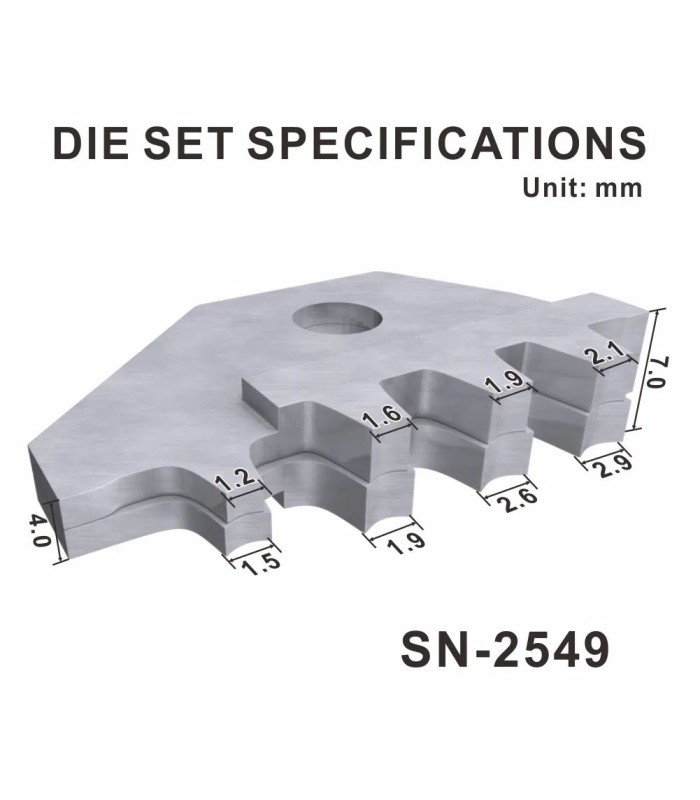

About jaw:

- The first jaw:
Thickness: 4mm, crimp range: 0.08-0.5mm2 (AWG 28-22)
- The second jaw:
Thickness: 7mm, crimp range: 0.25mm2 (AWG 28-24)
- The third jaw:
Thickness: 7mm, crimp range: 0.5mm2 (AWG 22-20)
- The fourth jaw:
Thickness: 7mm, crimp range: 1.0mm2 (AWG 20-18)
- An SN-2549 bender is the same as a SN-28B (0.1-1.0mm2) and a SN-01BM (0.08-0.5mm2)
- Crimping range: AWG 28-18 (0.08-0.5 / 0.25 / 0.5 / 1.0mm2).
- The components of the ratchet crimp are made of special steel.
- Wire EDM Cutting jaws with perfect polishing.
- Compatible with PH2.0 / XH2.54 / Dupont2.54 / 2.8 / 3.0 / 3.96 / 4.8 / KF2510 / JST terminal.
- Precise crimp die sets and integral lock with auto release mechanism ensure high quality crimp effect after repeated crimping.
