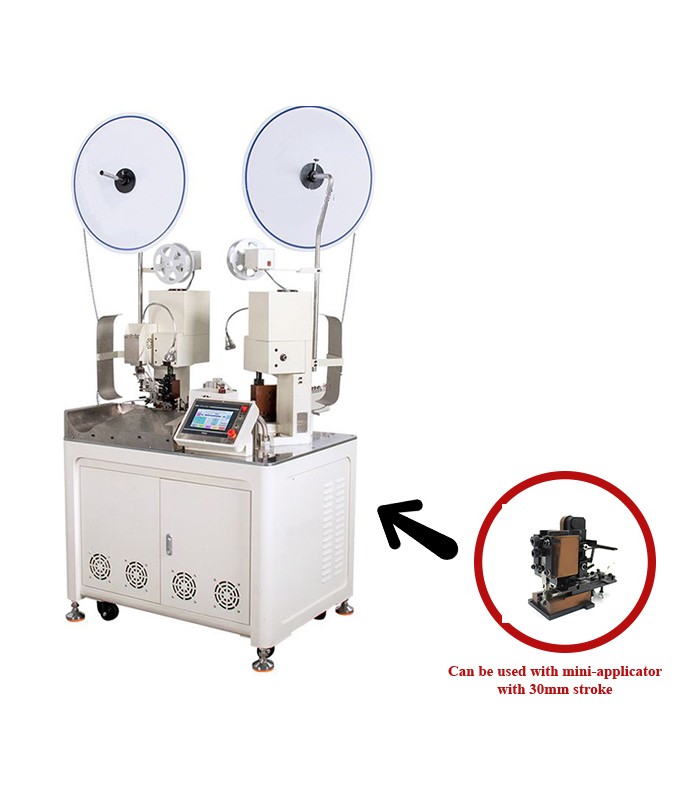

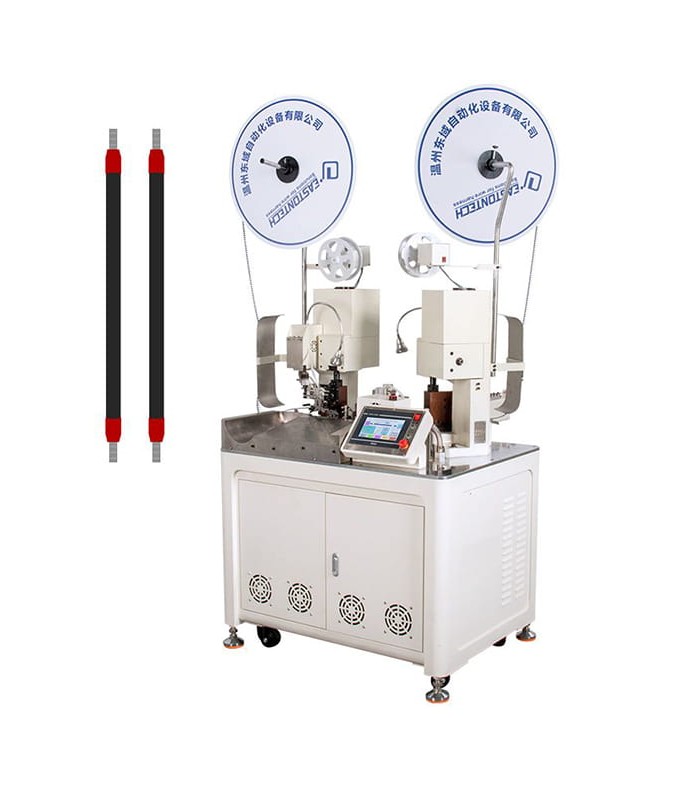

Máquina cortadora peladora, engarzadora de dos lados para terminales aislados, carrera de 30 mm con funda protectora

Features:
1. Fully automatic 2-ends wire cutting stripping and crimping machine for Plastic Shell terminals.
2. The highly flexible and electronically controlled benchtop unit accepts most universal or mini-style applicators for crimping both side-feed and rear-feed open barrel terminals.
3.Save your settings in a program file number, so that you can cali it out easily next time.

Technical data:
Model: RBEW22D30
With protective cover
Cable section: 28-14 AWG
Stripping/Twisting length: 7-12 mm
Cut precision: ±(0.5+0.002*L) mm, L=cut length
Cutting length: 50-9999mm
Capacity: 1400pcs/hour(Length less than 300mm)
Crimping force: 2.0T
Stroke: 30mm
Air pressure: 4-6KGF
Detection: Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power: 220V-110V/50-60HZ
Display language: English
Dimension: 700*800*1500mm
Weight: 358 Kg
Power cord plug: European, USA, Chinese plug
